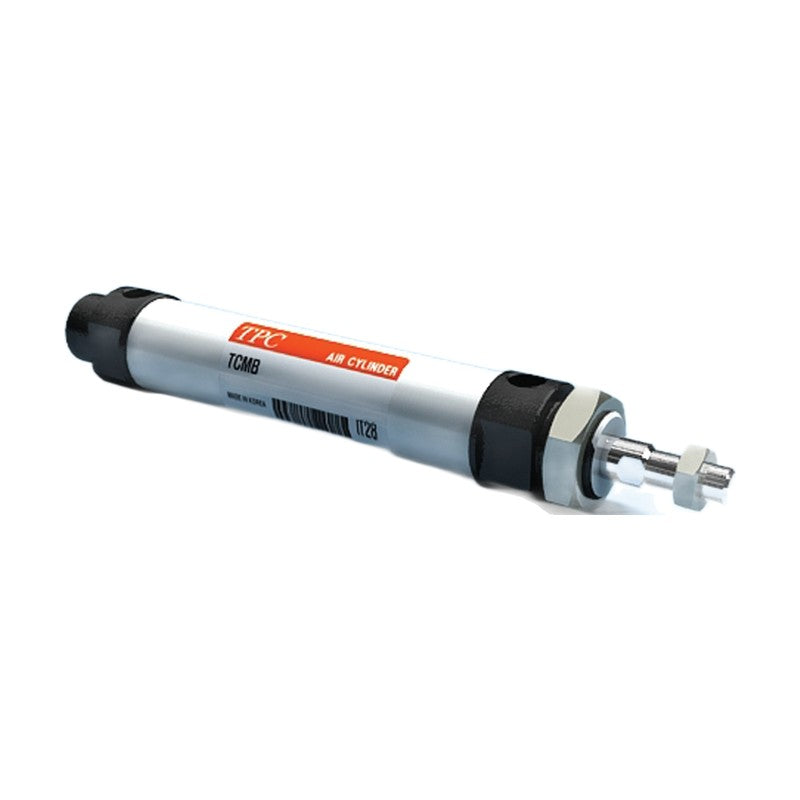

TPC TCM Compact Round Cylinder, Single Acting Spring Return

TPC TCM series compact round-body cylinder, single acting spring return (S), lubricated or non-lube, bore 20 to 40 mm with eight mounting styles and optional magnet.

Key features

Single acting, spring return (rod retracted at rest); no cushion
Mountings: basic, axial foot, rod/head flange, single/double clevis, head-end and rod-end trunnion
Strokes: bore 20/25 to 150, bore 30 to 200, bore 40 50 to 250 mm
Magnet version (TCDM) for band-mounted D-C73K reed auto switch
Single acting push type T (spring extend) available on order; bellows, rod-end knuckle and switches ordered as suffixes, not listed

Specifications

Action	Single acting, spring return
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	5 to 60°C
Stroke tolerance	+1.0 (to 250), +1.4 mm (251-500)
Rod thread tolerance	KS class 2
Min. operating pressure	0.18 MPa
Piston speed	50 to 500 mm/s
Cushion	None
Source	TPC Mechatronics catalog TCM series (standard) 230525, p. 46-51

TCMB20-25S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMB20-50S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMB20-75S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMB20-100S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMB20-125S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMB20-150S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMB25-25S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMB25-50S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMB25-75S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMB25-100S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMB25-125S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMB25-150S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMB30-25S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMB30-50S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMB30-75S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMB30-100S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMB30-125S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMB30-150S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMB30-200S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMB40-50S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMB40-75S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMB40-100S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMB40-125S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMB40-150S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMB40-200S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMB40-250S		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMBN20-25S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMBN20-50S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMBN20-75S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMBN20-100S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMBN20-125S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMBN20-150S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMBN25-25S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMBN25-50S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMBN25-75S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMBN25-100S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMBN25-125S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMBN25-150S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMBN30-25S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMBN30-50S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMBN30-75S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMBN30-100S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMBN30-125S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMBN30-150S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMBN30-200S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMBN40-50S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMBN40-75S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMBN40-100S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMBN40-125S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMBN40-150S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMBN40-200S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMBN40-250S		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCML20-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCML20-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCML20-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCML20-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCML20-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCML20-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCML25-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCML25-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCML25-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCML25-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCML25-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCML25-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCML30-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCML30-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCML30-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCML30-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCML30-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCML30-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCML30-200S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCML40-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCML40-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCML40-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCML40-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCML40-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCML40-200S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCML40-250S		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMLN20-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMLN20-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMLN20-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMLN20-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMLN20-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMLN20-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMLN25-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMLN25-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMLN25-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMLN25-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMLN25-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMLN25-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMLN30-25S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMLN30-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMLN30-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMLN30-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMLN30-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMLN30-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMLN30-200S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMLN40-50S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMLN40-75S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMLN40-100S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMLN40-125S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMLN40-150S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMLN40-200S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMLN40-250S		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMF20-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMF20-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMF20-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMF20-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMF20-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMF20-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMF25-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMF25-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMF25-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMF25-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMF25-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMF25-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMF30-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMF30-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMF30-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMF30-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMF30-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMF30-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMF30-200S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMF40-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMF40-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMF40-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMF40-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMF40-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMF40-200S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMF40-250S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMFN20-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMFN20-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMFN20-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMFN20-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMFN20-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMFN20-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMFN25-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMFN25-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMFN25-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMFN25-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMFN25-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMFN25-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMFN30-25S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMFN30-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMFN30-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMFN30-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMFN30-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMFN30-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMFN30-200S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMFN40-50S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMFN40-75S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMFN40-100S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMFN40-125S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMFN40-150S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMFN40-200S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMFN40-250S		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMG20-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMG20-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMG20-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMG20-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMG20-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMG20-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMG25-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMG25-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMG25-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMG25-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMG25-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMG25-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMG30-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMG30-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMG30-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMG30-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMG30-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMG30-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMG30-200S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMG40-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMG40-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMG40-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMG40-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMG40-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMG40-200S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMG40-250S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMGN20-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMGN20-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMGN20-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMGN20-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMGN20-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMGN20-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMGN25-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMGN25-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMGN25-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMGN25-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMGN25-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMGN25-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMGN30-25S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMGN30-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMGN30-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMGN30-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMGN30-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMGN30-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMGN30-200S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMGN40-50S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMGN40-75S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMGN40-100S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMGN40-125S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMGN40-150S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMGN40-200S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMGN40-250S		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMC20-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMC20-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMC20-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMC20-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMC20-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMC20-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMC25-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMC25-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMC25-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMC25-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMC25-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMC25-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMC30-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMC30-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMC30-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMC30-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMC30-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMC30-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMC30-200S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMC40-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMC40-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMC40-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMC40-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMC40-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMC40-200S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMC40-250S		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMCN20-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMCN20-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMCN20-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMCN20-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMCN20-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMCN20-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMCN25-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMCN25-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMCN25-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMCN25-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMCN25-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMCN25-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMCN30-25S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMCN30-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMCN30-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMCN30-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMCN30-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMCN30-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMCN30-200S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMCN40-50S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMCN40-75S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMCN40-100S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMCN40-125S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMCN40-150S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMCN40-200S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMCN40-250S		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMD20-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMD20-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMD20-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMD20-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMD20-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMD20-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMD25-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMD25-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMD25-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMD25-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMD25-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMD25-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMD30-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMD30-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMD30-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMD30-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMD30-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMD30-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMD30-200S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMD40-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMD40-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMD40-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMD40-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMD40-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMD40-200S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMD40-250S		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMDN20-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMDN20-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMDN20-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMDN20-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMDN20-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMDN20-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMDN25-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMDN25-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMDN25-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMDN25-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMDN25-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMDN25-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMDN30-25S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMDN30-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMDN30-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMDN30-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMDN30-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMDN30-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMDN30-200S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMDN40-50S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMDN40-75S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMDN40-100S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMDN40-125S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMDN40-150S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMDN40-200S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMDN40-250S		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMT20-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMT20-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMT20-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMT20-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMT20-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMT20-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMT25-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMT25-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMT25-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMT25-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMT25-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMT25-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMT30-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMT30-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMT30-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMT30-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMT30-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMT30-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMT30-200S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMT40-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMT40-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMT40-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMT40-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMT40-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMT40-200S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMT40-250S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMTN20-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMTN20-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMTN20-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMTN20-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMTN20-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMTN20-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMTN25-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMTN25-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMTN25-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMTN25-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMTN25-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMTN25-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMTN30-25S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMTN30-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMTN30-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMTN30-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMTN30-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMTN30-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMTN30-200S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMTN40-50S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMTN40-75S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMTN40-100S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMTN40-125S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMTN40-150S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMTN40-200S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMTN40-250S		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMU20-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMU20-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMU20-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMU20-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMU20-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMU20-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMU25-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMU25-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMU25-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMU25-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMU25-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMU25-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMU30-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMU30-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMU30-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMU30-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMU30-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMU30-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMU30-200S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMU40-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMU40-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMU40-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMU40-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMU40-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMU40-200S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMU40-250S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCMUN20-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMUN20-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMUN20-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMUN20-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMUN20-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMUN20-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMUN25-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMUN25-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMUN25-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMUN25-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMUN25-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMUN25-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMUN30-25S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCMUN30-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCMUN30-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCMUN30-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCMUN30-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCMUN30-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCMUN30-200S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCMUN40-50S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCMUN40-75S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCMUN40-100S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCMUN40-125S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCMUN40-150S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCMUN40-200S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCMUN40-250S		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMB20-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMB20-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMB20-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMB20-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMB20-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMB20-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMB25-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMB25-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMB25-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMB25-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMB25-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMB25-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMB30-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMB30-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMB30-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMB30-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMB30-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMB30-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMB30-200S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMB40-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMB40-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMB40-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMB40-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMB40-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMB40-200S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMB40-250S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMBN20-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMBN20-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMBN20-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMBN20-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMBN20-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMBN20-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMBN25-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMBN25-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMBN25-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMBN25-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMBN25-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMBN25-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMBN30-25S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMBN30-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMBN30-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMBN30-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMBN30-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMBN30-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMBN30-200S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMBN40-50S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMBN40-75S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMBN40-100S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMBN40-125S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMBN40-150S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMBN40-200S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMBN40-250S		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDML20-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDML20-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDML20-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDML20-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDML20-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDML20-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDML25-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDML25-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDML25-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDML25-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDML25-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDML25-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDML30-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDML30-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDML30-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDML30-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDML30-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDML30-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDML30-200S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDML40-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDML40-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDML40-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDML40-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDML40-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDML40-200S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDML40-250S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMLN20-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMLN20-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMLN20-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMLN20-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMLN20-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMLN20-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMLN25-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMLN25-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMLN25-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMLN25-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMLN25-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMLN25-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMLN30-25S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMLN30-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMLN30-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMLN30-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMLN30-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMLN30-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMLN30-200S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMLN40-50S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMLN40-75S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMLN40-100S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMLN40-125S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMLN40-150S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMLN40-200S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMLN40-250S		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMF20-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMF20-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMF20-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMF20-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMF20-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMF20-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMF25-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMF25-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMF25-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMF25-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMF25-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMF25-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMF30-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMF30-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMF30-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMF30-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMF30-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMF30-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMF30-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMF40-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMF40-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMF40-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMF40-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMF40-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMF40-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMF40-250S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMFN20-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMFN20-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMFN20-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMFN20-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMFN20-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMFN20-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMFN25-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMFN25-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMFN25-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMFN25-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMFN25-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMFN25-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMFN30-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMFN30-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMFN30-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMFN30-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMFN30-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMFN30-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMFN30-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMFN40-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMFN40-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMFN40-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMFN40-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMFN40-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMFN40-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMFN40-250S		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMG20-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMG20-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMG20-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMG20-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMG20-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMG20-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMG25-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMG25-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMG25-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMG25-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMG25-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMG25-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMG30-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMG30-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMG30-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMG30-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMG30-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMG30-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMG30-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMG40-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMG40-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMG40-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMG40-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMG40-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMG40-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMG40-250S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMGN20-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMGN20-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMGN20-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMGN20-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMGN20-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMGN20-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMGN25-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMGN25-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMGN25-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMGN25-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMGN25-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMGN25-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMGN30-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMGN30-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMGN30-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMGN30-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMGN30-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMGN30-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMGN30-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMGN40-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMGN40-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMGN40-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMGN40-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMGN40-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMGN40-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMGN40-250S		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMC20-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMC20-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMC20-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMC20-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMC20-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMC20-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMC25-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMC25-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMC25-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMC25-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMC25-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMC25-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMC30-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMC30-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMC30-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMC30-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMC30-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMC30-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMC30-200S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMC40-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMC40-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMC40-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMC40-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMC40-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMC40-200S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMC40-250S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMCN20-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMCN20-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMCN20-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMCN20-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMCN20-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMCN20-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMCN25-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMCN25-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMCN25-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMCN25-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMCN25-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMCN25-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMCN30-25S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMCN30-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMCN30-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMCN30-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMCN30-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMCN30-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMCN30-200S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMCN40-50S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMCN40-75S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMCN40-100S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMCN40-125S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMCN40-150S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMCN40-200S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMCN40-250S		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMD20-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMD20-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMD20-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMD20-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMD20-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMD20-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMD25-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMD25-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMD25-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMD25-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMD25-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMD25-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMD30-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMD30-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMD30-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMD30-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMD30-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMD30-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMD30-200S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMD40-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMD40-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMD40-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMD40-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMD40-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMD40-200S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMD40-250S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMDN20-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMDN20-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMDN20-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMDN20-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMDN20-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMDN20-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMDN25-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMDN25-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMDN25-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMDN25-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMDN25-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMDN25-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMDN30-25S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMDN30-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMDN30-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMDN30-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMDN30-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMDN30-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMDN30-200S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMDN40-50S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMDN40-75S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMDN40-100S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMDN40-125S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMDN40-150S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMDN40-200S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMDN40-250S		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMT20-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMT20-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMT20-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMT20-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMT20-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMT20-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMT25-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMT25-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMT25-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMT25-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMT25-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMT25-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMT30-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMT30-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMT30-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMT30-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMT30-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMT30-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMT30-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMT40-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMT40-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMT40-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMT40-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMT40-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMT40-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMT40-250S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMTN20-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMTN20-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMTN20-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMTN20-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMTN20-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMTN20-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMTN25-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMTN25-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMTN25-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMTN25-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMTN25-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMTN25-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMTN30-25S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMTN30-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMTN30-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMTN30-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMTN30-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMTN30-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMTN30-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMTN40-50S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMTN40-75S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMTN40-100S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMTN40-125S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMTN40-150S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMTN40-200S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMTN40-250S		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMU20-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMU20-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMU20-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMU20-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMU20-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMU20-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMU25-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMU25-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMU25-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMU25-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMU25-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMU25-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMU30-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMU30-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMU30-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMU30-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMU30-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMU30-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMU30-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMU40-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMU40-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMU40-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMU40-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMU40-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMU40-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMU40-250S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
TCDMUN20-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMUN20-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMUN20-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMUN20-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMUN20-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMUN20-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMUN25-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMUN25-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMUN25-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMUN25-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMUN25-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMUN25-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMUN30-25S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
TCDMUN30-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
TCDMUN30-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
TCDMUN30-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
TCDMUN30-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
TCDMUN30-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
TCDMUN30-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
TCDMUN40-50S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
TCDMUN40-75S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
TCDMUN40-100S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
TCDMUN40-125S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
TCDMUN40-150S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
TCDMUN40-200S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
TCDMUN40-250S		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4

Pneumatic CylindersTPC Mechatronics

832 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC TCM Compact Round Cylinder, Single Acting Spring Return

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (832)

TCMB20-25S, TCMB20-50S, TCMB20-75S, TCMB20-100S, TCMB20-125S, TCMB20-150S, TCMB25-25S, TCMB25-50S, TCMB25-75S, TCMB25-100S + 822 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TCMB20-25S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMB20-50S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMB20-75S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMB20-100S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMB20-125S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMB20-150S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMB25-25S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMB25-50S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMB25-75S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMB25-100S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMB25-125S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMB25-150S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMB30-25S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMB30-50S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMB30-75S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMB30-100S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMB30-125S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMB30-150S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMB30-200S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMB40-50S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMB40-75S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMB40-100S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMB40-125S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMB40-150S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMB40-200S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMB40-250S	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMBN20-25S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMBN20-50S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMBN20-75S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMBN20-100S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMBN20-125S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMBN20-150S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMBN25-25S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMBN25-50S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMBN25-75S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMBN25-100S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMBN25-125S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMBN25-150S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMBN30-25S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMBN30-50S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMBN30-75S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMBN30-100S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMBN30-125S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMBN30-150S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMBN30-200S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMBN40-50S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMBN40-75S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMBN40-100S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMBN40-125S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMBN40-150S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMBN40-200S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMBN40-250S	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCML20-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCML20-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCML20-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCML20-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCML20-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCML20-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCML25-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCML25-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCML25-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCML25-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCML25-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCML25-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCML30-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCML30-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCML30-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCML30-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCML30-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCML30-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCML30-200S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCML40-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCML40-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCML40-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCML40-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCML40-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCML40-200S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCML40-250S	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMLN20-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMLN20-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMLN20-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMLN20-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMLN20-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMLN20-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMLN25-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMLN25-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMLN25-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMLN25-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMLN25-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMLN25-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMLN30-25S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMLN30-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMLN30-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMLN30-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMLN30-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMLN30-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMLN30-200S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMLN40-50S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMLN40-75S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMLN40-100S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMLN40-125S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMLN40-150S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMLN40-200S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMLN40-250S	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMF20-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMF20-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMF20-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMF20-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMF20-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMF20-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMF25-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMF25-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMF25-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMF25-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMF25-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMF25-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMF30-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMF30-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMF30-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMF30-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMF30-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMF30-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMF30-200S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMF40-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMF40-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMF40-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMF40-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMF40-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMF40-200S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMF40-250S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMFN20-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMFN20-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMFN20-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMFN20-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMFN20-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMFN20-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMFN25-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMFN25-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMFN25-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMFN25-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMFN25-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMFN25-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMFN30-25S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMFN30-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMFN30-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMFN30-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMFN30-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMFN30-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMFN30-200S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMFN40-50S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMFN40-75S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMFN40-100S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMFN40-125S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMFN40-150S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMFN40-200S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMFN40-250S	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMG20-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMG20-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMG20-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMG20-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMG20-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMG20-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMG25-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMG25-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMG25-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMG25-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMG25-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMG25-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMG30-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMG30-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMG30-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMG30-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMG30-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMG30-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMG30-200S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMG40-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMG40-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMG40-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMG40-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMG40-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMG40-200S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMG40-250S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMGN20-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMGN20-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMGN20-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMGN20-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMGN20-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMGN20-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMGN25-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMGN25-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMGN25-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMGN25-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMGN25-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMGN25-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMGN30-25S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMGN30-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMGN30-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMGN30-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMGN30-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMGN30-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMGN30-200S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMGN40-50S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMGN40-75S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMGN40-100S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMGN40-125S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMGN40-150S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMGN40-200S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMGN40-250S	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMC20-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMC20-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMC20-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMC20-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMC20-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMC20-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMC25-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMC25-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMC25-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMC25-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMC25-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMC25-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMC30-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMC30-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMC30-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMC30-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMC30-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMC30-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMC30-200S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMC40-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMC40-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMC40-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMC40-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMC40-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMC40-200S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMC40-250S	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMCN20-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMCN20-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMCN20-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMCN20-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMCN20-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMCN20-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMCN25-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMCN25-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMCN25-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMCN25-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMCN25-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMCN25-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMCN30-25S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMCN30-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMCN30-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMCN30-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMCN30-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMCN30-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMCN30-200S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMCN40-50S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMCN40-75S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMCN40-100S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMCN40-125S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMCN40-150S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMCN40-200S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMCN40-250S	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMD20-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMD20-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMD20-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMD20-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMD20-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMD20-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMD25-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMD25-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMD25-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMD25-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMD25-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMD25-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMD30-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMD30-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMD30-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMD30-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMD30-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMD30-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMD30-200S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMD40-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMD40-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMD40-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMD40-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMD40-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMD40-200S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMD40-250S	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMDN20-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMDN20-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMDN20-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMDN20-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMDN20-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMDN20-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMDN25-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMDN25-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMDN25-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMDN25-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMDN25-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMDN25-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMDN30-25S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMDN30-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMDN30-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMDN30-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMDN30-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMDN30-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMDN30-200S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMDN40-50S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMDN40-75S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMDN40-100S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMDN40-125S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMDN40-150S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMDN40-200S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMDN40-250S	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMT20-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMT20-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMT20-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMT20-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMT20-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMT20-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMT25-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMT25-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMT25-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMT25-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMT25-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMT25-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMT30-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMT30-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMT30-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMT30-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMT30-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMT30-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMT30-200S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMT40-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMT40-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMT40-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMT40-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMT40-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMT40-200S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMT40-250S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMTN20-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMTN20-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMTN20-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMTN20-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMTN20-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMTN20-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMTN25-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMTN25-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMTN25-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMTN25-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMTN25-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMTN25-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMTN30-25S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMTN30-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMTN30-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMTN30-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMTN30-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMTN30-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMTN30-200S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMTN40-50S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMTN40-75S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMTN40-100S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMTN40-125S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMTN40-150S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMTN40-200S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMTN40-250S	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMU20-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMU20-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMU20-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMU20-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMU20-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMU20-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMU25-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMU25-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMU25-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMU25-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMU25-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMU25-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMU30-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMU30-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMU30-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMU30-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMU30-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMU30-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMU30-200S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMU40-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMU40-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMU40-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMU40-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMU40-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMU40-200S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMU40-250S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCMUN20-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMUN20-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMUN20-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMUN20-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMUN20-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMUN20-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMUN25-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMUN25-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMUN25-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMUN25-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMUN25-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMUN25-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMUN30-25S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCMUN30-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCMUN30-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCMUN30-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCMUN30-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCMUN30-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCMUN30-200S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCMUN40-50S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCMUN40-75S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCMUN40-100S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCMUN40-125S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCMUN40-150S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCMUN40-200S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCMUN40-250S	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMB20-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMB20-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMB20-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMB20-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMB20-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMB20-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMB25-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMB25-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMB25-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMB25-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMB25-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMB25-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMB30-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMB30-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMB30-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMB30-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMB30-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMB30-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMB30-200S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMB40-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMB40-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMB40-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMB40-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMB40-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMB40-200S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMB40-250S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMBN20-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMBN20-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMBN20-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMBN20-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMBN20-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMBN20-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMBN25-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMBN25-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMBN25-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMBN25-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMBN25-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMBN25-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMBN30-25S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMBN30-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMBN30-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMBN30-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMBN30-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMBN30-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMBN30-200S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMBN40-50S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMBN40-75S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMBN40-100S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMBN40-125S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMBN40-150S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMBN40-200S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMBN40-250S	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDML20-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDML20-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDML20-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDML20-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDML20-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDML20-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDML25-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDML25-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDML25-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDML25-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDML25-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDML25-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDML30-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDML30-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDML30-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDML30-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDML30-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDML30-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDML30-200S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDML40-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDML40-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDML40-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDML40-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDML40-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDML40-200S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDML40-250S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMLN20-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMLN20-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMLN20-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMLN20-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMLN20-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMLN20-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMLN25-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMLN25-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMLN25-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMLN25-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMLN25-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMLN25-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMLN30-25S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMLN30-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMLN30-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMLN30-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMLN30-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMLN30-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMLN30-200S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMLN40-50S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMLN40-75S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMLN40-100S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMLN40-125S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMLN40-150S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMLN40-200S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMLN40-250S	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMF20-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMF20-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMF20-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMF20-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMF20-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMF20-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMF25-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMF25-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMF25-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMF25-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMF25-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMF25-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMF30-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMF30-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMF30-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMF30-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMF30-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMF30-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMF30-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMF40-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMF40-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMF40-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMF40-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMF40-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMF40-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMF40-250S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMFN20-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMFN20-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMFN20-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMFN20-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMFN20-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMFN20-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMFN25-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMFN25-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMFN25-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMFN25-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMFN25-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMFN25-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMFN30-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMFN30-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMFN30-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMFN30-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMFN30-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMFN30-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMFN30-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMFN40-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMFN40-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMFN40-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMFN40-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMFN40-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMFN40-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMFN40-250S	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMG20-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMG20-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMG20-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMG20-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMG20-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMG20-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMG25-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMG25-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMG25-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMG25-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMG25-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMG25-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMG30-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMG30-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMG30-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMG30-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMG30-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMG30-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMG30-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMG40-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMG40-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMG40-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMG40-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMG40-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMG40-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMG40-250S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMGN20-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMGN20-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMGN20-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMGN20-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMGN20-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMGN20-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMGN25-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMGN25-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMGN25-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMGN25-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMGN25-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMGN25-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMGN30-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMGN30-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMGN30-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMGN30-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMGN30-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMGN30-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMGN30-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMGN40-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMGN40-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMGN40-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMGN40-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMGN40-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMGN40-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMGN40-250S	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMC20-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMC20-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMC20-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMC20-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMC20-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMC20-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMC25-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMC25-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMC25-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMC25-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMC25-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMC25-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMC30-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMC30-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMC30-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMC30-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMC30-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMC30-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMC30-200S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMC40-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMC40-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMC40-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMC40-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMC40-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMC40-200S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMC40-250S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMCN20-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMCN20-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMCN20-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMCN20-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMCN20-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMCN20-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMCN25-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMCN25-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMCN25-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMCN25-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMCN25-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMCN25-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMCN30-25S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMCN30-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMCN30-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMCN30-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMCN30-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMCN30-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMCN30-200S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMCN40-50S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMCN40-75S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMCN40-100S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMCN40-125S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMCN40-150S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMCN40-200S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMCN40-250S	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMD20-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMD20-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMD20-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMD20-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMD20-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMD20-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMD25-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMD25-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMD25-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMD25-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMD25-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMD25-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMD30-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMD30-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMD30-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMD30-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMD30-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMD30-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMD30-200S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMD40-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMD40-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMD40-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMD40-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMD40-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMD40-200S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMD40-250S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMDN20-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMDN20-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMDN20-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMDN20-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMDN20-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMDN20-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMDN25-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMDN25-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMDN25-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMDN25-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMDN25-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMDN25-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMDN30-25S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMDN30-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMDN30-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMDN30-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMDN30-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMDN30-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMDN30-200S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMDN40-50S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMDN40-75S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMDN40-100S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMDN40-125S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMDN40-150S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMDN40-200S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMDN40-250S	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMT20-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMT20-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMT20-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMT20-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMT20-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMT20-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMT25-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMT25-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMT25-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMT25-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMT25-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMT25-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMT30-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMT30-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMT30-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMT30-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMT30-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMT30-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMT30-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMT40-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMT40-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMT40-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMT40-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMT40-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMT40-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMT40-250S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMTN20-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMTN20-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMTN20-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMTN20-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMTN20-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMTN20-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMTN25-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMTN25-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMTN25-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMTN25-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMTN25-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMTN25-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMTN30-25S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMTN30-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMTN30-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMTN30-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMTN30-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMTN30-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMTN30-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMTN40-50S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMTN40-75S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMTN40-100S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMTN40-125S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMTN40-150S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMTN40-200S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMTN40-250S	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMU20-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMU20-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMU20-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMU20-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMU20-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMU20-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMU25-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMU25-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMU25-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMU25-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMU25-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMU25-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMU30-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMU30-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMU30-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMU30-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMU30-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMU30-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMU30-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMU40-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMU40-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMU40-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMU40-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMU40-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMU40-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMU40-250S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	TCDMUN20-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMUN20-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMUN20-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMUN20-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMUN20-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMUN20-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMUN25-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMUN25-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMUN25-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMUN25-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMUN25-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMUN25-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMUN30-25S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	TCDMUN30-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	TCDMUN30-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	TCDMUN30-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	TCDMUN30-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	TCDMUN30-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	TCDMUN30-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	TCDMUN40-50S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	TCDMUN40-75S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	TCDMUN40-100S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	TCDMUN40-125S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	TCDMUN40-150S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	TCDMUN40-200S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	TCDMUN40-250S	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC TCM Compact Round Cylinder, Single Acting Spring Return
