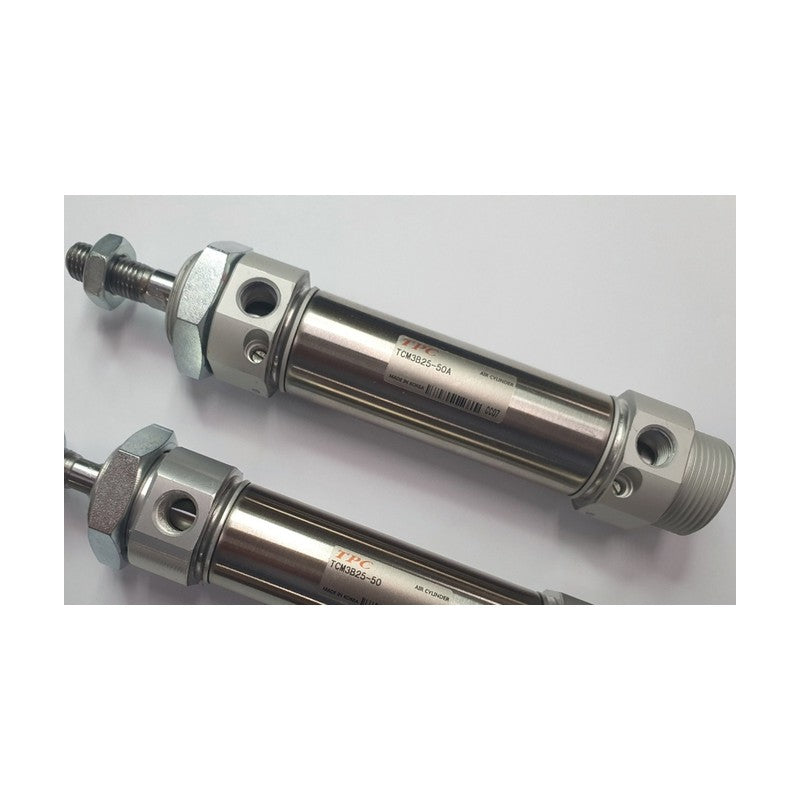

TPC TCM3 Compact Air Cylinder (Pivot Mounts C/D/T/U/E/UZ)

TPC TCM3 series double-acting single-rod compact round air cylinder, bore 20-40 mm, in clevis, trunnion and integrated clevis pivot mounting styles.

Key features

Replaceable urethane rod seal and special Teflon-based grease for about twice the life of the TCM2 series
Composite moulded dust lip for excellent dust resistance; reduced piston rod deflection
Stainless steel tube, compact and lightweight body; magnet built in as standard for band-mounted auto switches D-C73K / D-C73TN
Rubber cushion (50-750 mm/s) or air cushion (A, 50-1000 mm/s); boss-cut (BZ/FZ/UZ) heads shorten overall length by 13-16 mm
Options as code suffixes, not listed: bellows J (nylon tarpaulin) / K (neoprene), pivot bracket N, knuckle joints I / Y, XC16 cold-resistant, auto switch C73K / C73TN with quantity S / n
Pivot bracket N (TCM-B020/B032/B040) for C, T, U, E, UZ mounts; integrated clevis E uses bracket TCM-E020B / TCM-E032B

Specifications

Action	Double acting, single rod
Fluid	Air (non-lube)
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C
Stroke tolerance	+1.4/0 mm
Magnet	Built in (standard)
Piston speed	50-750 mm/s rubber; 50-1000 mm/s air cushion
Min. operating pressure	0.05 MPa
Allowable kinetic energy	2.7 / 4 / 6.5 / 12 kgf-cm (bore 20/25/32/40)
Source	TPC Mechatronics catalog TCM3 series (all options) 230217, p. 1-26

TCM3C20-25		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-25F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-25A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-25AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-50		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-50F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-50A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-50AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-75		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-75F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-75A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-75AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-100		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-100F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-100A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-100AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-125		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-125F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-125A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-125AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-150		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-150F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-150A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-150AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-200		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-200F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-200A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-200AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-250		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-250F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-250A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-250AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-300		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-300F		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-300A		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-300AF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-25		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-25F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-25A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-25AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-50		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-50F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-50A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-50AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-75		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-75F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-75A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-75AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-100		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-100F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-100A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-100AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-125		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-125F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-125A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-125AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-150		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-150F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-150A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-150AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-200		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-200F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-200A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-200AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-250		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-250F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-250A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-250AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-300		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-300F		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-300A		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-300AF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-25		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-25F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-25A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-25AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-50		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-50F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-50A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-50AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-75		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-75F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-75A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-75AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-100		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-100F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-100A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-100AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-125		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-125F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-125A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-125AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-150		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-150F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-150A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-150AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-200		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-200F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-200A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-200AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-250		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-250F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-250A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-250AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-300		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-300F		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-300A		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-300AF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3C40-25		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-25F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-25A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-25AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-50		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-50F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-50A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-50AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-75		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-75F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-75A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-75AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-100		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-100F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-100A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-100AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-125		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-125F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-125A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-125AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-150		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-150F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-150A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-150AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-200		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-200F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-200A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-200AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-250		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-250F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-250A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-250AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-300		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-300F		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-300A		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-300AF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D20-25		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-25F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-25A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-25AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-50		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-50F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-50A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-50AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-75		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-75F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-75A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-75AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-100		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-100F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-100A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-100AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-125		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-125F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-125A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-125AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-150		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-150F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-150A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-150AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-200		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-200F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-200A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-200AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-250		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-250F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-250A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-250AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-300		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-300F		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-300A		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-300AF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-25		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-25F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-25A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-25AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-50		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-50F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-50A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-50AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-75		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-75F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-75A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-75AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-100		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-100F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-100A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-100AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-125		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-125F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-125A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-125AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-150		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-150F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-150A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-150AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-200		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-200F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-200A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-200AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-250		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-250F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-250A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-250AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-300		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-300F		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-300A		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-300AF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-25		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-25F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-25A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-25AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-50		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-50F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-50A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-50AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-75		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-75F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-75A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-75AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-100		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-100F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-100A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-100AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-125		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-125F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-125A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-125AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-150		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-150F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-150A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-150AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-200		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-200F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-200A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-200AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-250		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-250F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-250A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-250AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-300		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-300F		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-300A		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-300AF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3D40-25		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-25F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-25A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-25AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-50		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-50F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-50A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-50AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-75		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-75F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-75A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-75AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-100		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-100F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-100A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-100AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-125		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-125F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-125A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-125AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-150		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-150F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-150A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-150AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-200		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-200F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-200A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-200AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-250		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-250F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-250A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-250AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-300		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-300F		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-300A		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-300AF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T20-25		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-25F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-25A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-25AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-50		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-50F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-50A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-50AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-75		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-75F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-75A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-75AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-100		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-100F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-100A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-100AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-125		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-125F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-125A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-125AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-150		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-150F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-150A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-150AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-200		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-200F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-200A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-200AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-250		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-250F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-250A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-250AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-300		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-300F		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-300A		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-300AF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-25		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-25F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-25A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-25AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-50		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-50F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-50A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-50AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-75		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-75F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-75A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-75AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-100		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-100F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-100A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-100AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-125		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-125F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-125A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-125AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-150		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-150F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-150A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-150AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-200		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-200F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-200A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-200AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-250		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-250F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-250A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-250AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-300		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-300F		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-300A		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-300AF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-25		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-25F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-25A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-25AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-50		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-50F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-50A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-50AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-75		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-75F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-75A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-75AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-100		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-100F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-100A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-100AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-125		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-125F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-125A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-125AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-150		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-150F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-150A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-150AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-200		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-200F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-200A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-200AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-250		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-250F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-250A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-250AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-300		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-300F		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-300A		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-300AF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3T40-25		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-25F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-25A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-25AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-50		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-50F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-50A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-50AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-75		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-75F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-75A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-75AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-100		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-100F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-100A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-100AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-125		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-125F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-125A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-125AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-150		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-150F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-150A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-150AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-200		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-200F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-200A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-200AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-250		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-250F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-250A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-250AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-300		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-300F		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-300A		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-300AF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U20-25		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-25F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-25A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-25AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-50		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-50F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-50A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-50AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-75		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-75F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-75A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-75AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-100		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-100F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-100A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-100AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-125		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-125F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-125A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-125AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-150		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-150F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-150A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-150AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-200		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-200F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-200A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-200AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-250		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-250F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-250A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-250AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-300		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-300F		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-300A		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-300AF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-25		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-25F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-25A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-25AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-50		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-50F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-50A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-50AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-75		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-75F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-75A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-75AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-100		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-100F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-100A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-100AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-125		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-125F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-125A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-125AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-150		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-150F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-150A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-150AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-200		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-200F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-200A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-200AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-250		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-250F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-250A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-250AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-300		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-300F		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-300A		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-300AF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-25		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-25F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-25A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-25AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-50		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-50F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-50A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-50AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-75		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-75F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-75A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-75AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-100		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-100F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-100A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-100AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-125		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-125F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-125A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-125AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-150		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-150F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-150A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-150AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-200		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-200F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-200A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-200AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-250		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-250F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-250A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-250AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-300		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-300F		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-300A		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-300AF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3U40-25		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-25F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-25A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-25AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-50		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-50F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-50A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-50AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-75		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-75F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-75A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-75AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-100		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-100F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-100A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-100AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-125		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-125F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-125A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-125AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-150		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-150F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-150A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-150AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-200		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-200F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-200A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-200AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-250		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-250F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-250A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-250AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-300		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-300F		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-300A		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-300AF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E20-25		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-25F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-25A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-25AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-50		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-50F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-50A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-50AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-75		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-75F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-75A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-75AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-100		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-100F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-100A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-100AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-125		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-125F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-125A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-125AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-150		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-150F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-150A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-150AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-200		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-200F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-200A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-200AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-250		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-250F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-250A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-250AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-300		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-300F		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-300A		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-300AF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-25		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-25F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-25A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-25AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-50		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-50F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-50A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-50AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-75		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-75F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-75A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-75AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-100		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-100F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-100A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-100AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-125		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-125F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-125A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-125AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-150		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-150F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-150A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-150AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-200		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-200F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-200A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-200AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-250		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-250F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-250A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-250AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-300		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-300F		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-300A		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-300AF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-25		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-25F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-25A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-25AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-50		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-50F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-50A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-50AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-75		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-75F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-75A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-75AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-100		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-100F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-100A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-100AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-125		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-125F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-125A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-125AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-150		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-150F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-150A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-150AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-200		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-200F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-200A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-200AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-250		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-250F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-250A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-250AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-300		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-300F		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-300A		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-300AF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3E40-25		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-25F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-25A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-25AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-50		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-50F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-50A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-50AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-75		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-75F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-75A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-75AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-100		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-100F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-100A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-100AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-125		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-125F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-125A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-125AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-150		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-150F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-150A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-150AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-200		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-200F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-200A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-200AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-250		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-250F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-250A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-250AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-300		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-300F		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-300A		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-300AF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ20-25		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-25F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-25A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-25AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-50		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-50F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-50A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-50AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-75		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-75F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-75A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-75AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-100		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-100F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-100A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-100AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-125		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-125F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-125A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-125AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-150		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-150F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-150A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-150AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-200		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-200F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-200A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-200AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-250		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-250F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-250A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-250AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-300		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-300F		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-300A		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-300AF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-25		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-25F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-25A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-25AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-50		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-50F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-50A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-50AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-75		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-75F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-75A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-75AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-100		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-100F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-100A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-100AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-125		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-125F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-125A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-125AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-150		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-150F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-150A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-150AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-200		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-200F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-200A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-200AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-250		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-250F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-250A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-250AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-300		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-300F		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-300A		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-300AF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-25		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-25F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-25A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-25AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-50		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-50F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-50A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-50AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-75		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-75F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-75A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-75AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-100		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-100F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-100A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-100AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-125		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-125F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-125A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-125AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-150		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-150F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-150A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-150AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-200		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-200F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-200A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-200AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-250		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-250F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-250A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-250AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-300		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-300F		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-300A		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-300AF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ40-25		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-25F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-25A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-25AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-50		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-50F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-50A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-50AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-75		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-75F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-75A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-75AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-100		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-100F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-100A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-100AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-125		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-125F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-125A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-125AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-150		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-150F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-150A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-150AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-200		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-200F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-200A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-200AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-250		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-250F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-250A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-250AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-300		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-300F		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-300A		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-300AF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4

Pneumatic CylindersTPC Mechatronics

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC TCM3 Compact Air Cylinder (Pivot Mounts C/D/T/U/E/UZ)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (864)

TCM3C20-25, TCM3C20-25F, TCM3C20-25A, TCM3C20-25AF, TCM3C20-50, TCM3C20-50F, TCM3C20-50A, TCM3C20-50AF, TCM3C20-75, TCM3C20-75F + 854 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TCM3C20-25	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-25F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-25A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-25AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-50	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-50F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-50A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-50AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-75	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-75F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-75A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-75AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-100	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-100F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-100A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-100AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-125	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-125F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-125A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-125AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-150	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-150F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-150A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-150AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-200	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-200F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-200A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-200AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-250	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-250F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-250A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-250AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-300	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-300F	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-300A	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-300AF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-25	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-25F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-25A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-25AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-50	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-50F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-50A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-50AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-75	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-75F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-75A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-75AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-100	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-100F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-100A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-100AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-125	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-125F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-125A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-125AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-150	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-150F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-150A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-150AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-200	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-200F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-200A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-200AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-250	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-250F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-250A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-250AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-300	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-300F	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-300A	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-300AF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-25	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-25F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-25A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-25AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-50	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-50F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-50A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-50AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-75	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-75F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-75A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-75AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-100	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-100F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-100A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-100AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-125	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-125F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-125A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-125AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-150	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-150F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-150A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-150AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-200	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-200F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-200A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-200AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-250	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-250F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-250A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-250AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-300	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-300F	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-300A	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-300AF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3C40-25	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-25F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-25A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-25AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-50	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-50F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-50A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-50AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-75	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-75F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-75A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-75AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-100	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-100F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-100A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-100AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-125	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-125F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-125A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-125AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-150	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-150F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-150A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-150AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-200	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-200F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-200A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-200AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-250	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-250F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-250A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-250AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-300	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-300F	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-300A	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-300AF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D20-25	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-25F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-25A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-25AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-50	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-50F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-50A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-50AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-75	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-75F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-75A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-75AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-100	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-100F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-100A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-100AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-125	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-125F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-125A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-125AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-150	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-150F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-150A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-150AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-200	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-200F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-200A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-200AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-250	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-250F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-250A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-250AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-300	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-300F	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-300A	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-300AF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-25	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-25F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-25A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-25AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-50	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-50F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-50A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-50AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-75	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-75F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-75A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-75AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-100	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-100F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-100A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-100AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-125	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-125F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-125A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-125AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-150	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-150F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-150A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-150AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-200	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-200F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-200A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-200AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-250	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-250F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-250A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-250AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-300	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-300F	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-300A	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-300AF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-25	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-25F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-25A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-25AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-50	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-50F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-50A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-50AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-75	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-75F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-75A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-75AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-100	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-100F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-100A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-100AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-125	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-125F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-125A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-125AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-150	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-150F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-150A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-150AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-200	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-200F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-200A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-200AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-250	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-250F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-250A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-250AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-300	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-300F	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-300A	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-300AF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3D40-25	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-25F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-25A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-25AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-50	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-50F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-50A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-50AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-75	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-75F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-75A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-75AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-100	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-100F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-100A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-100AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-125	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-125F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-125A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-125AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-150	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-150F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-150A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-150AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-200	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-200F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-200A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-200AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-250	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-250F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-250A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-250AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-300	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-300F	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-300A	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-300AF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T20-25	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-25F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-25A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-25AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-50	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-50F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-50A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-50AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-75	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-75F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-75A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-75AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-100	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-100F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-100A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-100AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-125	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-125F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-125A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-125AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-150	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-150F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-150A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-150AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-200	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-200F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-200A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-200AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-250	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-250F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-250A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-250AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-300	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-300F	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-300A	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-300AF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-25	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-25F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-25A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-25AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-50	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-50F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-50A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-50AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-75	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-75F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-75A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-75AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-100	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-100F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-100A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-100AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-125	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-125F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-125A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-125AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-150	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-150F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-150A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-150AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-200	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-200F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-200A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-200AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-250	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-250F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-250A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-250AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-300	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-300F	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-300A	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-300AF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-25	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-25F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-25A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-25AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-50	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-50F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-50A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-50AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-75	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-75F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-75A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-75AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-100	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-100F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-100A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-100AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-125	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-125F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-125A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-125AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-150	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-150F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-150A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-150AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-200	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-200F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-200A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-200AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-250	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-250F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-250A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-250AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-300	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-300F	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-300A	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-300AF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3T40-25	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-25F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-25A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-25AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-50	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-50F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-50A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-50AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-75	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-75F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-75A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-75AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-100	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-100F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-100A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-100AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-125	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-125F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-125A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-125AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-150	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-150F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-150A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-150AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-200	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-200F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-200A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-200AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-250	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-250F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-250A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-250AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-300	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-300F	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-300A	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-300AF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U20-25	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-25F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-25A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-25AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-50	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-50F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-50A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-50AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-75	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-75F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-75A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-75AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-100	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-100F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-100A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-100AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-125	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-125F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-125A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-125AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-150	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-150F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-150A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-150AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-200	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-200F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-200A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-200AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-250	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-250F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-250A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-250AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-300	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-300F	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-300A	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-300AF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-25	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-25F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-25A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-25AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-50	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-50F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-50A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-50AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-75	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-75F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-75A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-75AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-100	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-100F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-100A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-100AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-125	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-125F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-125A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-125AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-150	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-150F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-150A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-150AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-200	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-200F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-200A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-200AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-250	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-250F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-250A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-250AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-300	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-300F	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-300A	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-300AF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-25	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-25F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-25A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-25AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-50	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-50F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-50A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-50AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-75	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-75F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-75A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-75AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-100	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-100F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-100A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-100AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-125	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-125F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-125A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-125AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-150	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-150F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-150A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-150AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-200	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-200F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-200A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-200AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-250	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-250F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-250A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-250AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-300	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-300F	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-300A	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-300AF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3U40-25	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-25F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-25A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-25AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-50	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-50F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-50A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-50AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-75	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-75F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-75A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-75AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-100	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-100F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-100A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-100AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-125	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-125F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-125A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-125AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-150	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-150F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-150A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-150AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-200	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-200F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-200A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-200AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-250	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-250F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-250A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-250AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-300	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-300F	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-300A	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-300AF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E20-25	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-25F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-25A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-25AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-50	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-50F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-50A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-50AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-75	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-75F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-75A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-75AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-100	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-100F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-100A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-100AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-125	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-125F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-125A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-125AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-150	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-150F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-150A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-150AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-200	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-200F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-200A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-200AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-250	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-250F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-250A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-250AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-300	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-300F	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-300A	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-300AF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-25	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-25F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-25A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-25AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-50	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-50F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-50A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-50AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-75	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-75F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-75A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-75AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-100	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-100F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-100A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-100AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-125	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-125F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-125A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-125AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-150	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-150F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-150A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-150AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-200	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-200F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-200A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-200AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-250	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-250F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-250A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-250AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-300	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-300F	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-300A	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-300AF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-25	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-25F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-25A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-25AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-50	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-50F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-50A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-50AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-75	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-75F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-75A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-75AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-100	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-100F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-100A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-100AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-125	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-125F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-125A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-125AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-150	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-150F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-150A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-150AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-200	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-200F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-200A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-200AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-250	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-250F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-250A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-250AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-300	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-300F	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-300A	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-300AF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3E40-25	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-25F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-25A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-25AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-50	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-50F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-50A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-50AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-75	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-75F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-75A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-75AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-100	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-100F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-100A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-100AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-125	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-125F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-125A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-125AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-150	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-150F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-150A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-150AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-200	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-200F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-200A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-200AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-250	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-250F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-250A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-250AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-300	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-300F	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-300A	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-300AF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ20-25	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-25F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-25A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-25AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-50	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-50F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-50A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-50AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-75	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-75F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-75A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-75AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-100	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-100F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-100A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-100AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-125	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-125F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-125A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-125AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-150	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-150F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-150A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-150AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-200	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-200F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-200A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-200AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-250	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-250F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-250A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-250AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-300	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-300F	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-300A	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-300AF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-25	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-25F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-25A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-25AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-50	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-50F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-50A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-50AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-75	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-75F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-75A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-75AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-100	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-100F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-100A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-100AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-125	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-125F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-125A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-125AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-150	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-150F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-150A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-150AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-200	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-200F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-200A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-200AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-250	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-250F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-250A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-250AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-300	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-300F	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-300A	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-300AF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-25	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-25F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-25A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-25AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-50	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-50F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-50A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-50AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-75	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-75F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-75A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-75AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-100	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-100F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-100A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-100AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-125	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-125F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-125A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-125AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-150	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-150F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-150A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-150AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-200	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-200F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-200A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-200AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-250	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-250F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-250A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-250AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-300	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-300F	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-300A	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-300AF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ40-25	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-25F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-25A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-25AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-50	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-50F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-50A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-50AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-75	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-75F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-75A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-75AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-100	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-100F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-100A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-100AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-125	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-125F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-125A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-125AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-150	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-150F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-150A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-150AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-200	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-200F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-200A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-200AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-250	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-250F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-250A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-250AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-300	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-300F	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Rubber \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-300A	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-300AF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Cushion: Air cushion \| Rod end: Female thread \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC TCM3 Compact Air Cylinder (Pivot Mounts C/D/T/U/E/UZ)
