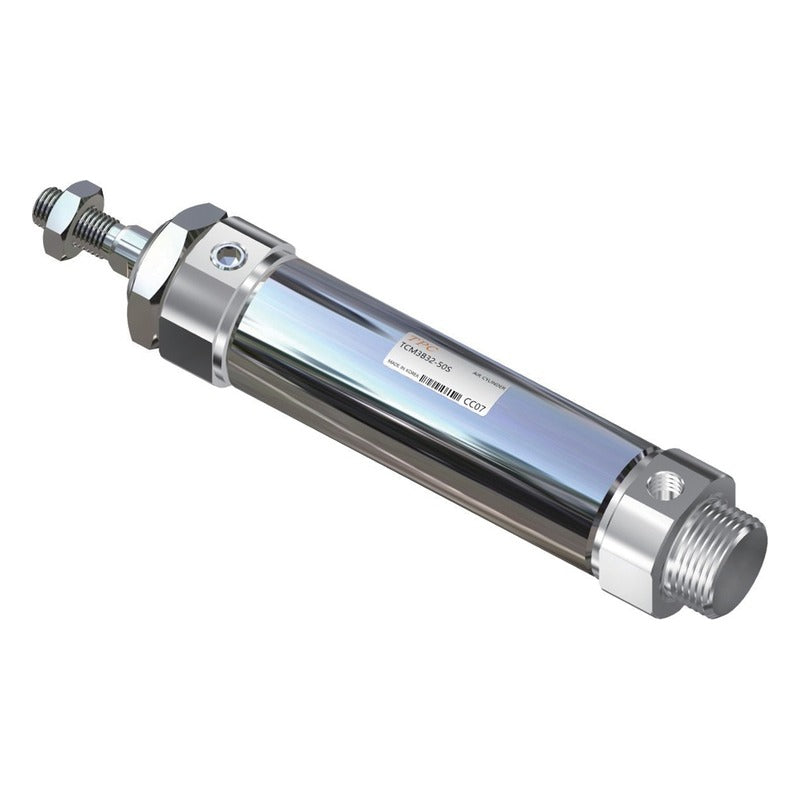

TPC TCM3 Single Acting Compact Air Cylinder (Spring Return/Extend)

TPC TCM3 series single-acting compact round air cylinder, bore 20-40 mm, in push (spring return, S) and pull (spring extend, T) versions with 12 mounting styles.

Key features

S: air extends, spring retracts; T: air retracts, spring extends
Urethane rod seal with special grease, composite dust lip, reduced rod deflection
Magnet built in as standard for band-mounted auto switches D-C73K / D-C73TN
Rubber cushion; 12 mounting styles incl. boss-cut BZ/FZ/UZ heads (13-16 mm shorter)
XC16 cold-resistant and auto switch suffixes (C73K/C73TN, S/n) ordered as code options

Specifications

Fluid	Air (non-lube)
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.18 MPa (S), 0.23 MPa (T)
Ambient and fluid temperature	-10 to 70°C
Piston speed	50-750 mm/s
Cushion	Rubber cushion
Magnet	Built in (standard)
Source	TPC Mechatronics catalog TCM3 series (all options) 230217, p. 35-48

TCM3B20-25S		Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-25SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-25T		Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-25TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-50S		Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-50SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-50T		Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-50TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-75S		Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-75SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-75T		Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-75TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-100S		Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-100SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-100T		Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-100TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-125S		Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-125SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-125T		Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-125TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-150S		Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-150SF		Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B20-150T		Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B20-150TF		Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-25S		Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-25SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-25T		Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-25TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-50S		Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-50SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-50T		Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-50TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-75S		Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-75SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-75T		Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-75TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-100S		Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-100SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-100T		Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-100TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-125S		Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-125SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-125T		Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-125TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-150S		Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-150SF		Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B25-150T		Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B25-150TF		Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-25S		Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-25SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-25T		Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-25TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-50S		Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-50SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-50T		Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-50TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-75S		Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-75SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-75T		Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-75TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-100S		Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-100SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-100T		Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-100TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-125S		Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-125SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-125T		Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-125TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-150S		Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-150SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-150T		Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-150TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-200S		Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-200SF		Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3B32-200T		Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3B32-200TF		Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3B40-25S		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-25SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-25T		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-25TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-50S		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-50SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-50T		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-50TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-75S		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-75SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-75T		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-75TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-100S		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-100SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-100T		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-100TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-125S		Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-125SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-125T		Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-125TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-150S		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-150SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-150T		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-150TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-200S		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-200SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-200T		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-200TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-250S		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-250SF		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3B40-250T		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3B40-250TF		Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L20-25S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-25SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-25T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-25TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-50S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-50SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-50T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-50TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-75S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-75SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-75T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-75TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-100S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-100SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-100T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-100TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-125S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-125SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-125T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-125TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-150S		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-150SF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L20-150T		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L20-150TF		Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-25S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-25SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-25T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-25TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-50S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-50SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-50T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-50TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-75S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-75SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-75T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-75TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-100S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-100SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-100T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-100TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-125S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-125SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-125T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-125TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-150S		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-150SF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L25-150T		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L25-150TF		Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-25S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-25SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-25T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-25TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-50S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-50SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-50T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-50TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-75S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-75SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-75T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-75TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-100S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-100SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-100T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-100TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-125S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-125SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-125T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-125TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-150S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-150SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-150T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-150TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-200S		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-200SF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3L32-200T		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3L32-200TF		Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3L40-25S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-25SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-25T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-25TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-50S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-50SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-50T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-50TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-75S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-75SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-75T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-75TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-100S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-100SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-100T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-100TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-125S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-125SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-125T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-125TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-150S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-150SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-150T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-150TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-200S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-200SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-200T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-200TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-250S		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-250SF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3L40-250T		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3L40-250TF		Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F20-25S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-25SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-25T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-25TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-50S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-50SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-50T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-50TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-75S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-75SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-75T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-75TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-100S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-100SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-100T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-100TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-125S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-125SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-125T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-125TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-150S		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-150SF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F20-150T		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F20-150TF		Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-25S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-25SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-25T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-25TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-50S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-50SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-50T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-50TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-75S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-75SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-75T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-75TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-100S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-100SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-100T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-100TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-125S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-125SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-125T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-125TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-150S		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-150SF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F25-150T		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F25-150TF		Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-25S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-25SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-25T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-25TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-50S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-50SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-50T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-50TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-75S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-75SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-75T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-75TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-100S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-100SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-100T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-100TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-125S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-125SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-125T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-125TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-150S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-150SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-150T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-150TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-200S		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-200SF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3F32-200T		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3F32-200TF		Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3F40-25S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-25SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-25T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-25TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-50S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-50SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-50T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-50TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-75S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-75SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-75T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-75TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-100S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-100SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-100T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-100TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-125S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-125SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-125T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-125TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-150S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-150SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-150T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-150TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-200S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-200SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-200T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-200TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-250S		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-250SF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3F40-250T		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3F40-250TF		Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G20-25S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-25SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-25T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-25TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-50S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-50SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-50T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-50TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-75S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-75SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-75T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-75TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-100S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-100SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-100T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-100TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-125S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-125SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-125T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-125TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-150S		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-150SF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G20-150T		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G20-150TF		Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-25S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-25SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-25T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-25TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-50S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-50SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-50T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-50TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-75S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-75SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-75T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-75TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-100S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-100SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-100T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-100TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-125S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-125SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-125T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-125TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-150S		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-150SF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G25-150T		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G25-150TF		Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-25S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-25SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-25T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-25TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-50S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-50SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-50T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-50TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-75S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-75SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-75T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-75TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-100S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-100SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-100T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-100TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-125S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-125SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-125T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-125TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-150S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-150SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-150T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-150TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-200S		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-200SF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3G32-200T		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3G32-200TF		Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3G40-25S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-25SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-25T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-25TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-50S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-50SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-50T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-50TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-75S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-75SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-75T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-75TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-100S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-100SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-100T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-100TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-125S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-125SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-125T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-125TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-150S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-150SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-150T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-150TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-200S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-200SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-200T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-200TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-250S		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-250SF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3G40-250T		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3G40-250TF		Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C20-25S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-25SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-25T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-25TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-50S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-50SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-50T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-50TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-75S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-75SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-75T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-75TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-100S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-100SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-100T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-100TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-125S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-125SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-125T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-125TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-150S		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-150SF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C20-150T		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C20-150TF		Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-25S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-25SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-25T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-25TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-50S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-50SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-50T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-50TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-75S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-75SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-75T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-75TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-100S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-100SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-100T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-100TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-125S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-125SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-125T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-125TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-150S		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-150SF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C25-150T		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C25-150TF		Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-25S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-25SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-25T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-25TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-50S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-50SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-50T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-50TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-75S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-75SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-75T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-75TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-100S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-100SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-100T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-100TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-125S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-125SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-125T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-125TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-150S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-150SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-150T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-150TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-200S		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-200SF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3C32-200T		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3C32-200TF		Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3C40-25S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-25SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-25T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-25TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-50S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-50SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-50T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-50TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-75S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-75SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-75T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-75TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-100S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-100SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-100T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-100TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-125S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-125SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-125T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-125TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-150S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-150SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-150T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-150TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-200S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-200SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-200T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-200TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-250S		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-250SF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3C40-250T		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3C40-250TF		Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D20-25S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-25SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-25T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-25TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-50S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-50SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-50T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-50TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-75S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-75SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-75T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-75TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-100S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-100SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-100T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-100TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-125S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-125SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-125T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-125TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-150S		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-150SF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D20-150T		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D20-150TF		Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-25S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-25SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-25T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-25TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-50S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-50SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-50T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-50TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-75S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-75SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-75T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-75TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-100S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-100SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-100T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-100TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-125S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-125SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-125T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-125TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-150S		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-150SF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D25-150T		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D25-150TF		Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-25S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-25SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-25T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-25TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-50S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-50SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-50T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-50TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-75S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-75SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-75T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-75TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-100S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-100SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-100T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-100TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-125S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-125SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-125T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-125TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-150S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-150SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-150T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-150TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-200S		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-200SF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3D32-200T		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3D32-200TF		Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3D40-25S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-25SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-25T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-25TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-50S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-50SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-50T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-50TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-75S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-75SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-75T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-75TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-100S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-100SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-100T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-100TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-125S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-125SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-125T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-125TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-150S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-150SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-150T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-150TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-200S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-200SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-200T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-200TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-250S		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-250SF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3D40-250T		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3D40-250TF		Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T20-25S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-25SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-25T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-25TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-50S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-50SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-50T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-50TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-75S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-75SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-75T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-75TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-100S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-100SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-100T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-100TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-125S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-125SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-125T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-125TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-150S		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-150SF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T20-150T		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T20-150TF		Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-25S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-25SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-25T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-25TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-50S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-50SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-50T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-50TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-75S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-75SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-75T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-75TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-100S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-100SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-100T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-100TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-125S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-125SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-125T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-125TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-150S		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-150SF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T25-150T		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T25-150TF		Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-25S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-25SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-25T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-25TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-50S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-50SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-50T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-50TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-75S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-75SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-75T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-75TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-100S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-100SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-100T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-100TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-125S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-125SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-125T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-125TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-150S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-150SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-150T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-150TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-200S		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-200SF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3T32-200T		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3T32-200TF		Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3T40-25S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-25SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-25T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-25TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-50S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-50SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-50T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-50TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-75S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-75SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-75T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-75TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-100S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-100SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-100T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-100TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-125S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-125SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-125T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-125TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-150S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-150SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-150T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-150TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-200S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-200SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-200T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-200TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-250S		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-250SF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3T40-250T		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3T40-250TF		Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U20-25S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-25SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-25T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-25TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-50S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-50SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-50T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-50TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-75S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-75SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-75T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-75TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-100S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-100SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-100T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-100TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-125S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-125SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-125T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-125TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-150S		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-150SF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U20-150T		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U20-150TF		Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-25S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-25SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-25T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-25TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-50S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-50SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-50T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-50TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-75S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-75SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-75T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-75TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-100S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-100SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-100T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-100TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-125S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-125SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-125T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-125TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-150S		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-150SF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U25-150T		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U25-150TF		Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-25S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-25SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-25T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-25TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-50S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-50SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-50T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-50TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-75S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-75SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-75T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-75TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-100S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-100SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-100T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-100TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-125S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-125SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-125T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-125TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-150S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-150SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-150T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-150TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-200S		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-200SF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3U32-200T		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3U32-200TF		Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3U40-25S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-25SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-25T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-25TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-50S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-50SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-50T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-50TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-75S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-75SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-75T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-75TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-100S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-100SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-100T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-100TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-125S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-125SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-125T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-125TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-150S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-150SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-150T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-150TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-200S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-200SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-200T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-200TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-250S		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-250SF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3U40-250T		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3U40-250TF		Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E20-25S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-25SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-25T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-25TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-50S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-50SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-50T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-50TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-75S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-75SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-75T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-75TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-100S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-100SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-100T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-100TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-125S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-125SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-125T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-125TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-150S		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-150SF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E20-150T		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E20-150TF		Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-25S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-25SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-25T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-25TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-50S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-50SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-50T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-50TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-75S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-75SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-75T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-75TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-100S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-100SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-100T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-100TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-125S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-125SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-125T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-125TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-150S		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-150SF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E25-150T		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E25-150TF		Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-25S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-25SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-25T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-25TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-50S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-50SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-50T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-50TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-75S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-75SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-75T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-75TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-100S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-100SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-100T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-100TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-125S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-125SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-125T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-125TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-150S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-150SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-150T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-150TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-200S		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-200SF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3E32-200T		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3E32-200TF		Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3E40-25S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-25SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-25T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-25TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-50S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-50SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-50T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-50TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-75S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-75SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-75T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-75TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-100S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-100SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-100T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-100TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-125S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-125SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-125T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-125TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-150S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-150SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-150T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-150TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-200S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-200SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-200T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-200TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-250S		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-250SF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3E40-250T		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3E40-250TF		Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ20-25S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-25SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-25T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-25TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-50S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-50SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-50T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-50TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-75S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-75SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-75T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-75TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-100S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-100SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-100T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-100TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-125S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-125SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-125T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-125TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-150S		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-150SF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ20-150T		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ20-150TF		Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-25S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-25SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-25T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-25TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-50S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-50SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-50T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-50TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-75S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-75SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-75T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-75TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-100S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-100SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-100T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-100TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-125S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-125SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-125T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-125TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-150S		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-150SF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ25-150T		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ25-150TF		Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-25S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-25SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-25T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-25TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-50S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-50SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-50T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-50TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-75S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-75SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-75T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-75TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-100S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-100SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-100T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-100TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-125S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-125SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-125T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-125TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-150S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-150SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-150T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-150TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-200S		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-200SF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ32-200T		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3BZ32-200TF		Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3BZ40-25S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-25SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-25T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-25TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-50S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-50SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-50T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-50TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-75S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-75SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-75T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-75TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-100S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-100SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-100T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-100TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-125S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-125SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-125T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-125TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-150S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-150SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-150T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-150TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-200S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-200SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-200T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-200TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-250S		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-250SF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3BZ40-250T		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3BZ40-250TF		Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ20-25S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-25SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-25T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-25TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-50S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-50SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-50T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-50TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-75S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-75SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-75T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-75TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-100S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-100SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-100T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-100TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-125S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-125SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-125T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-125TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-150S		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-150SF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ20-150T		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ20-150TF		Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-25S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-25SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-25T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-25TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-50S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-50SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-50T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-50TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-75S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-75SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-75T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-75TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-100S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-100SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-100T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-100TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-125S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-125SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-125T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-125TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-150S		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-150SF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ25-150T		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ25-150TF		Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-25S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-25SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-25T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-25TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-50S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-50SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-50T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-50TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-75S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-75SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-75T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-75TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-100S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-100SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-100T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-100TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-125S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-125SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-125T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-125TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-150S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-150SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-150T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-150TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-200S		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-200SF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ32-200T		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3FZ32-200TF		Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3FZ40-25S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-25SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-25T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-25TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-50S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-50SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-50T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-50TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-75S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-75SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-75T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-75TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-100S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-100SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-100T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-100TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-125S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-125SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-125T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-125TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-150S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-150SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-150T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-150TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-200S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-200SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-200T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-200TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-250S		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-250SF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3FZ40-250T		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3FZ40-250TF		Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ20-25S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-25SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-25T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-25TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-50S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-50SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-50T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-50TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-75S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-75SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-75T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-75TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-100S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-100SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-100T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-100TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-125S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-125SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-125T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-125TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-150S		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-150SF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ20-150T		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ20-150TF		Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-25S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-25SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-25T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-25TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-50S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-50SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-50T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-50TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-75S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-75SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-75T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-75TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-100S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-100SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-100T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-100TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-125S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-125SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-125T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-125TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-150S		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-150SF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ25-150T		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ25-150TF		Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-25S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-25SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-25T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-25TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-50S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-50SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-50T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-50TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-75S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-75SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-75T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-75TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-100S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-100SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-100T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-100TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-125S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-125SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-125T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-125TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-150S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-150SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-150T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-150TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-200S		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-200SF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ32-200T		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
TCM3UZ32-200TF		Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
TCM3UZ40-25S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-25SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-25T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-25TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-50S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-50SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-50T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-50TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-75S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-75SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-75T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-75TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-100S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-100SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-100T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-100TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-125S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-125SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-125T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-125TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-150S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-150SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-150T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-150TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-200S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-200SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-200T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-200TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-250S		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-250SF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
TCM3UZ40-250T		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
TCM3UZ40-250TF		Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4

Pneumatic CylindersTPC Mechatronics

1296 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC TCM3 Single Acting Compact Air Cylinder (Spring Return/Extend)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (1296)

TCM3B20-25S, TCM3B20-25SF, TCM3B20-25T, TCM3B20-25TF, TCM3B20-50S, TCM3B20-50SF, TCM3B20-50T, TCM3B20-50TF, TCM3B20-75S, TCM3B20-75SF + 1286 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TCM3B20-25S	Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-25SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-25T	Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-25TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-50S	Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-50SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-50T	Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-50TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-75S	Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-75SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-75T	Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-75TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-100S	Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-100SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-100T	Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-100TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-125S	Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-125SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-125T	Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-125TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-150S	Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-150SF	Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B20-150T	Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B20-150TF	Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-25S	Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-25SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-25T	Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-25TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-50S	Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-50SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-50T	Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-50TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-75S	Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-75SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-75T	Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-75TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-100S	Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-100SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-100T	Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-100TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-125S	Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-125SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-125T	Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-125TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-150S	Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-150SF	Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B25-150T	Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B25-150TF	Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-25S	Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-25SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-25T	Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-25TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-50S	Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-50SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-50T	Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-50TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-75S	Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-75SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-75T	Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-75TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-100S	Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-100SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-100T	Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-100TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-125S	Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-125SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-125T	Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-125TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-150S	Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-150SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-150T	Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-150TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-200S	Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-200SF	Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3B32-200T	Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3B32-200TF	Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3B40-25S	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-25SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-25T	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-25TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-50S	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-50SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-50T	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-50TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-75S	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-75SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-75T	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-75TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-100S	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-100SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-100T	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-100TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-125S	Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-125SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-125T	Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-125TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-150S	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-150SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-150T	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-150TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-200S	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-200SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-200T	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-200TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-250S	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-250SF	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3B40-250T	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3B40-250TF	Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L20-25S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-25SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-25T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-25TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-50S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-50SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-50T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-50TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-75S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-75SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-75T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-75TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-100S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-100SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-100T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-100TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-125S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-125SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-125T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-125TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-150S	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-150SF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L20-150T	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L20-150TF	Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-25S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-25SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-25T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-25TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-50S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-50SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-50T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-50TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-75S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-75SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-75T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-75TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-100S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-100SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-100T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-100TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-125S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-125SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-125T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-125TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-150S	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-150SF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L25-150T	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L25-150TF	Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-25S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-25SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-25T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-25TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-50S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-50SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-50T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-50TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-75S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-75SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-75T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-75TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-100S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-100SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-100T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-100TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-125S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-125SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-125T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-125TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-150S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-150SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-150T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-150TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-200S	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-200SF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3L32-200T	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3L32-200TF	Mounting: Axial foot \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3L40-25S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-25SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-25T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-25TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-50S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-50SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-50T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-50TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-75S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-75SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-75T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-75TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-100S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-100SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-100T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-100TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-125S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-125SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-125T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-125TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-150S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-150SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-150T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-150TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-200S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-200SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-200T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-200TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-250S	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-250SF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3L40-250T	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3L40-250TF	Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F20-25S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-25SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-25T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-25TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-50S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-50SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-50T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-50TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-75S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-75SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-75T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-75TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-100S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-100SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-100T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-100TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-125S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-125SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-125T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-125TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-150S	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-150SF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F20-150T	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F20-150TF	Mounting: Rod-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-25S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-25SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-25T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-25TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-50S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-50SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-50T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-50TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-75S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-75SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-75T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-75TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-100S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-100SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-100T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-100TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-125S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-125SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-125T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-125TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-150S	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-150SF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F25-150T	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F25-150TF	Mounting: Rod-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-25S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-25SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-25T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-25TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-50S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-50SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-50T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-50TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-75S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-75SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-75T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-75TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-100S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-100SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-100T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-100TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-125S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-125SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-125T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-125TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-150S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-150SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-150T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-150TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-200S	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-200SF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3F32-200T	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3F32-200TF	Mounting: Rod-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3F40-25S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-25SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-25T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-25TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-50S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-50SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-50T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-50TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-75S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-75SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-75T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-75TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-100S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-100SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-100T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-100TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-125S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-125SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-125T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-125TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-150S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-150SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-150T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-150TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-200S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-200SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-200T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-200TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-250S	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-250SF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3F40-250T	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3F40-250TF	Mounting: Rod-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G20-25S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-25SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-25T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-25TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-50S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-50SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-50T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-50TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-75S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-75SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-75T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-75TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-100S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-100SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-100T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-100TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-125S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-125SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-125T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-125TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-150S	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-150SF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G20-150T	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G20-150TF	Mounting: Head-side flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-25S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-25SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-25T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-25TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-50S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-50SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-50T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-50TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-75S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-75SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-75T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-75TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-100S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-100SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-100T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-100TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-125S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-125SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-125T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-125TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-150S	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-150SF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G25-150T	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G25-150TF	Mounting: Head-side flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-25S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-25SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-25T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-25TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-50S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-50SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-50T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-50TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-75S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-75SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-75T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-75TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-100S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-100SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-100T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-100TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-125S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-125SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-125T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-125TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-150S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-150SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-150T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-150TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-200S	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-200SF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3G32-200T	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3G32-200TF	Mounting: Head-side flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3G40-25S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-25SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-25T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-25TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-50S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-50SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-50T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-50TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-75S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-75SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-75T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-75TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-100S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-100SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-100T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-100TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-125S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-125SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-125T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-125TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-150S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-150SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-150T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-150TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-200S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-200SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-200T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-200TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-250S	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-250SF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3G40-250T	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3G40-250TF	Mounting: Head-side flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C20-25S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-25SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-25T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-25TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-50S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-50SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-50T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-50TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-75S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-75SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-75T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-75TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-100S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-100SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-100T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-100TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-125S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-125SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-125T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-125TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-150S	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-150SF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C20-150T	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C20-150TF	Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-25S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-25SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-25T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-25TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-50S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-50SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-50T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-50TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-75S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-75SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-75T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-75TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-100S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-100SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-100T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-100TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-125S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-125SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-125T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-125TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-150S	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-150SF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C25-150T	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C25-150TF	Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-25S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-25SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-25T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-25TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-50S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-50SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-50T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-50TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-75S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-75SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-75T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-75TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-100S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-100SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-100T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-100TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-125S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-125SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-125T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-125TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-150S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-150SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-150T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-150TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-200S	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-200SF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3C32-200T	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3C32-200TF	Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3C40-25S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-25SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-25T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-25TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-50S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-50SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-50T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-50TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-75S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-75SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-75T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-75TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-100S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-100SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-100T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-100TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-125S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-125SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-125T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-125TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-150S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-150SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-150T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-150TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-200S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-200SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-200T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-200TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-250S	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-250SF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3C40-250T	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3C40-250TF	Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D20-25S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-25SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-25T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-25TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-50S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-50SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-50T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-50TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-75S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-75SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-75T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-75TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-100S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-100SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-100T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-100TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-125S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-125SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-125T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-125TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-150S	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-150SF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D20-150T	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D20-150TF	Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-25S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-25SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-25T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-25TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-50S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-50SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-50T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-50TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-75S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-75SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-75T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-75TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-100S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-100SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-100T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-100TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-125S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-125SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-125T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-125TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-150S	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-150SF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D25-150T	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D25-150TF	Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-25S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-25SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-25T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-25TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-50S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-50SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-50T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-50TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-75S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-75SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-75T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-75TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-100S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-100SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-100T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-100TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-125S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-125SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-125T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-125TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-150S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-150SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-150T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-150TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-200S	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-200SF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3D32-200T	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3D32-200TF	Mounting: Double clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3D40-25S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-25SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-25T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-25TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-50S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-50SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-50T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-50TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-75S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-75SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-75T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-75TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-100S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-100SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-100T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-100TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-125S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-125SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-125T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-125TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-150S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-150SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-150T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-150TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-200S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-200SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-200T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-200TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-250S	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-250SF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3D40-250T	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3D40-250TF	Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T20-25S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-25SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-25T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-25TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-50S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-50SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-50T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-50TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-75S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-75SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-75T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-75TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-100S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-100SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-100T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-100TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-125S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-125SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-125T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-125TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-150S	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-150SF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T20-150T	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T20-150TF	Mounting: Head-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-25S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-25SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-25T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-25TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-50S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-50SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-50T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-50TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-75S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-75SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-75T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-75TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-100S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-100SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-100T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-100TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-125S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-125SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-125T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-125TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-150S	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-150SF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T25-150T	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T25-150TF	Mounting: Head-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-25S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-25SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-25T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-25TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-50S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-50SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-50T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-50TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-75S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-75SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-75T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-75TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-100S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-100SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-100T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-100TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-125S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-125SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-125T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-125TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-150S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-150SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-150T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-150TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-200S	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-200SF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3T32-200T	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3T32-200TF	Mounting: Head-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3T40-25S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-25SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-25T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-25TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-50S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-50SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-50T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-50TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-75S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-75SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-75T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-75TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-100S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-100SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-100T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-100TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-125S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-125SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-125T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-125TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-150S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-150SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-150T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-150TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-200S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-200SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-200T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-200TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-250S	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-250SF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3T40-250T	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3T40-250TF	Mounting: Head-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U20-25S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-25SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-25T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-25TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-50S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-50SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-50T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-50TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-75S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-75SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-75T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-75TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-100S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-100SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-100T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-100TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-125S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-125SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-125T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-125TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-150S	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-150SF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U20-150T	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U20-150TF	Mounting: Rod-side trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-25S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-25SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-25T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-25TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-50S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-50SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-50T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-50TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-75S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-75SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-75T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-75TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-100S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-100SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-100T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-100TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-125S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-125SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-125T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-125TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-150S	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-150SF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U25-150T	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U25-150TF	Mounting: Rod-side trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-25S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-25SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-25T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-25TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-50S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-50SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-50T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-50TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-75S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-75SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-75T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-75TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-100S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-100SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-100T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-100TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-125S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-125SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-125T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-125TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-150S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-150SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-150T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-150TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-200S	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-200SF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3U32-200T	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3U32-200TF	Mounting: Rod-side trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3U40-25S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-25SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-25T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-25TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-50S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-50SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-50T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-50TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-75S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-75SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-75T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-75TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-100S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-100SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-100T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-100TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-125S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-125SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-125T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-125TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-150S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-150SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-150T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-150TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-200S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-200SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-200T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-200TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-250S	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-250SF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3U40-250T	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3U40-250TF	Mounting: Rod-side trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E20-25S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-25SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-25T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-25TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-50S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-50SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-50T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-50TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-75S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-75SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-75T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-75TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-100S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-100SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-100T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-100TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-125S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-125SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-125T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-125TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-150S	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-150SF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E20-150T	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E20-150TF	Mounting: Integrated clevis \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-25S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-25SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-25T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-25TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-50S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-50SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-50T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-50TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-75S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-75SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-75T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-75TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-100S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-100SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-100T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-100TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-125S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-125SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-125T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-125TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-150S	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-150SF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E25-150T	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E25-150TF	Mounting: Integrated clevis \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-25S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-25SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-25T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-25TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-50S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-50SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-50T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-50TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-75S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-75SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-75T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-75TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-100S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-100SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-100T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-100TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-125S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-125SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-125T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-125TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-150S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-150SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-150T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-150TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-200S	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-200SF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3E32-200T	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3E32-200TF	Mounting: Integrated clevis \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3E40-25S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-25SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-25T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-25TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-50S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-50SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-50T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-50TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-75S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-75SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-75T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-75TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-100S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-100SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-100T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-100TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-125S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-125SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-125T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-125TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-150S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-150SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-150T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-150TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-200S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-200SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-200T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-200TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-250S	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-250SF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3E40-250T	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3E40-250TF	Mounting: Integrated clevis \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ20-25S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-25SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-25T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-25TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-50S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-50SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-50T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-50TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-75S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-75SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-75T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-75TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-100S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-100SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-100T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-100TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-125S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-125SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-125T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-125TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-150S	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-150SF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ20-150T	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ20-150TF	Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-25S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-25SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-25T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-25TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-50S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-50SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-50T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-50TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-75S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-75SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-75T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-75TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-100S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-100SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-100T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-100TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-125S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-125SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-125T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-125TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-150S	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-150SF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ25-150T	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ25-150TF	Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-25S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-25SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-25T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-25TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-50S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-50SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-50T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-50TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-75S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-75SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-75T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-75TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-100S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-100SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-100T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-100TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-125S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-125SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-125T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-125TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-150S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-150SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-150T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-150TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-200S	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-200SF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ32-200T	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3BZ32-200TF	Mounting: Boss-cut basic \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3BZ40-25S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-25SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-25T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-25TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-50S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-50SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-50T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-50TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-75S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-75SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-75T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-75TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-100S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-100SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-100T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-100TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-125S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-125SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-125T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-125TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-150S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-150SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-150T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-150TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-200S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-200SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-200T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-200TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-250S	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-250SF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3BZ40-250T	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3BZ40-250TF	Mounting: Boss-cut basic \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ20-25S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-25SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-25T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-25TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-50S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-50SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-50T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-50TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-75S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-75SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-75T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-75TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-100S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-100SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-100T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-100TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-125S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-125SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-125T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-125TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-150S	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-150SF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ20-150T	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ20-150TF	Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-25S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-25SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-25T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-25TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-50S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-50SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-50T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-50TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-75S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-75SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-75T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-75TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-100S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-100SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-100T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-100TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-125S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-125SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-125T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-125TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-150S	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-150SF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ25-150T	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ25-150TF	Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-25S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-25SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-25T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-25TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-50S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-50SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-50T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-50TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-75S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-75SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-75T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-75TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-100S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-100SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-100T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-100TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-125S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-125SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-125T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-125TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-150S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-150SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-150T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-150TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-200S	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-200SF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ32-200T	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3FZ32-200TF	Mounting: Boss-cut flange \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3FZ40-25S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-25SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-25T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-25TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-50S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-50SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-50T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-50TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-75S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-75SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-75T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-75TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-100S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-100SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-100T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-100TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-125S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-125SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-125T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-125TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-150S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-150SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-150T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-150TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-200S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-200SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-200T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-200TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-250S	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-250SF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3FZ40-250T	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3FZ40-250TF	Mounting: Boss-cut flange \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ20-25S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-25SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-25T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-25TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-50S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-50SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-50T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-50TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-75S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-75SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-75T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-75TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-100S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-100SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-100T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-100TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-125S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-125SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-125T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-125TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-150S	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-150SF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ20-150T	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ20-150TF	Mounting: Boss-cut trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-25S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-25SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-25T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-25TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-50S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-50SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-50T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-50TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-75S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-75SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-75T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-75TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-100S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-100SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-100T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-100TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-125S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-125SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-125T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-125TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-150S	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-150SF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ25-150T	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ25-150TF	Mounting: Boss-cut trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-25S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-25SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-25T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-25TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-50S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-50SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-50T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-50TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-75S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-75SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-75T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-75TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-100S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-100SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-100T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-100TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-125S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-125SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-125T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-125TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-150S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-150SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-150T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-150TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-200S	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-200SF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ32-200T	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/8
	TCM3UZ32-200TF	Mounting: Boss-cut trunnion \| Bore: 32 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/8
	TCM3UZ40-25S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-25SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-25T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-25TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-50S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-50SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-50T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-50TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-75S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-75SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-75T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-75TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-100S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-100SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-100T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-100TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-125S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-125SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-125T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-125TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-150S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-150SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-150T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-150TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-200S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-200SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-200T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-200TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-250S	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-250SF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, extend \| Rod end: Female thread \| Port: Rc1/4
	TCM3UZ40-250T	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Male thread \| Port: Rc1/4
	TCM3UZ40-250TF	Mounting: Boss-cut trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Action: Single acting, retract \| Rod end: Female thread \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC TCM3 Single Acting Compact Air Cylinder (Spring Return/Extend)
