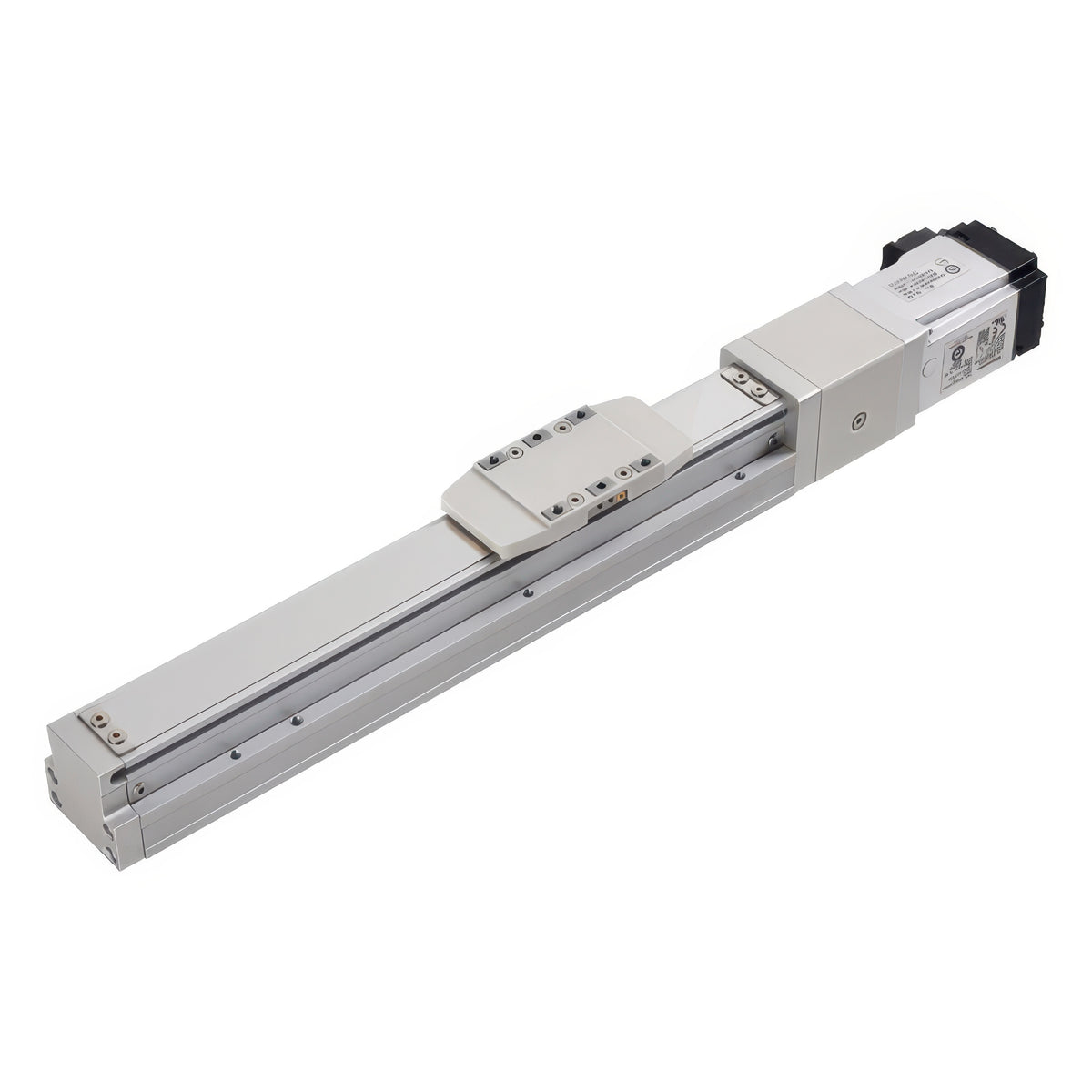

TPC Mechatronics TGH Series Extruded Aluminum Monorail Single-Axis Module (Ball Screw Drive)

TPC Mechatronics TGH Series Extruded Aluminum Monorail Single-Axis Module (Ball Screw Drive)

The TGH Series is a lightweight ball screw driven single-axis module built on an extruded aluminum monorail body.

Key features

  • Four sizes (TGH40, 50, 80 and 120) cover body widths from 44 mm to 120 mm and strokes up to 1250 mm in 50 mm increments
  • C7 rolled ball screws give repeatability of ±0.01 mm, with leads from 2 mm to 32 mm and linear speeds up to 1920 mm/s
  • AC servo motors of 100 W to 400 W can be mounted exposed, folded underneath, or folded to the left or right side
  • Optional photo sensors with standard or cable sockets are available

Specifications

Repeatability ±0.01 mm
TGH40 Body width: 44 mm | Ball screw: C7 rolled, diameter 10 mm | Lead: 2 / 6 / 12 mm | Max linear speed: 120 / 360 / 720 mm/s (3600 rpm) | Max payload horizontal: 25 / 20 / 12 kg | Max payload vertical: 8 / 5 / 2 kg | Rated thrust: 854 / 285 / 142 N | Stroke: 50-600 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 100 W | Coupling: 7 x 8
TGH50 Body width: 54 mm | Ball screw: C7 rolled, diameter 12 mm | Lead: 2 / 5 / 10 / 20 mm | Max linear speed: 120 / 300 / 600 / 1200 mm/s (3600 rpm) | Max payload horizontal: 30 / 30 / 15 / 10 kg | Max payload vertical: 10 / 10 / 5 / 2.5 kg | Rated thrust: 854 / 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 100 W | Coupling: 7 x 8
TGH80 Body width: 82 mm | Ball screw: C7 rolled, diameter 16 mm | Lead: 5 / 10 / 20 mm | Max linear speed: 300 / 600 / 1200 mm/s (3600 rpm) | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 15 / 8 / 3 kg | Rated thrust: 1388 / 694 / 347 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 400 W | Coupling: 10 x 14 / 11
TGH120 Body width: 120 mm | Ball screw: C7 rolled, diameter 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max linear speed: 300 / 600 / 1200 / 1920 mm/s (3600 rpm) | Max payload horizontal: 110 / 88 / 40 / 30 kg | Max payload vertical: 33 / 22 / 10 / 8 kg | Rated thrust: 1388 / 694 / 347 / 218 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 400 W | Coupling: 10 x 14 / 11
Single-Axis ActuatorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TGH Series Extruded Aluminum Monorail Single-Axis Module (Ball Screw Drive)

Brand TPC Mechatronics·Single-Axis Actuators

Available part numbers (4)

TGH40, TGH50, TGH80, TGH120

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TGH40Body width: 44 mm | Ball screw: C7 rolled, diameter 10 mm | Lead: 2 / 6 / 12 mm | Max linear speed: 120 / 360 / 720 mm/s (3600 rpm) | Max payload horizontal: 25 / 20 / 12 kg | Max payload vertical: 8 / 5 / 2 kg | Rated thrust: 854 / 285 / 142 N | Stroke: 50-600 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 100 W | Coupling: 7 x 8
TGH50Body width: 54 mm | Ball screw: C7 rolled, diameter 12 mm | Lead: 2 / 5 / 10 / 20 mm | Max linear speed: 120 / 300 / 600 / 1200 mm/s (3600 rpm) | Max payload horizontal: 30 / 30 / 15 / 10 kg | Max payload vertical: 10 / 10 / 5 / 2.5 kg | Rated thrust: 854 / 341 / 170 / 85 N | Stroke: 50-1050 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 100 W | Coupling: 7 x 8
TGH80Body width: 82 mm | Ball screw: C7 rolled, diameter 16 mm | Lead: 5 / 10 / 20 mm | Max linear speed: 300 / 600 / 1200 mm/s (3600 rpm) | Max payload horizontal: 50 / 30 / 18 kg | Max payload vertical: 15 / 8 / 3 kg | Rated thrust: 1388 / 694 / 347 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 400 W | Coupling: 10 x 14 / 11
TGH120Body width: 120 mm | Ball screw: C7 rolled, diameter 16 mm | Lead: 5 / 10 / 20 / 32 mm | Max linear speed: 300 / 600 / 1200 / 1920 mm/s (3600 rpm) | Max payload horizontal: 110 / 88 / 40 / 30 kg | Max payload vertical: 33 / 22 / 10 / 8 kg | Rated thrust: 1388 / 694 / 347 / 218 N | Stroke: 50-1250 mm (50 mm increments) | Repeatability: ±0.01 mm | AC servo motor output: 400 W | Coupling: 10 x 14 / 11
