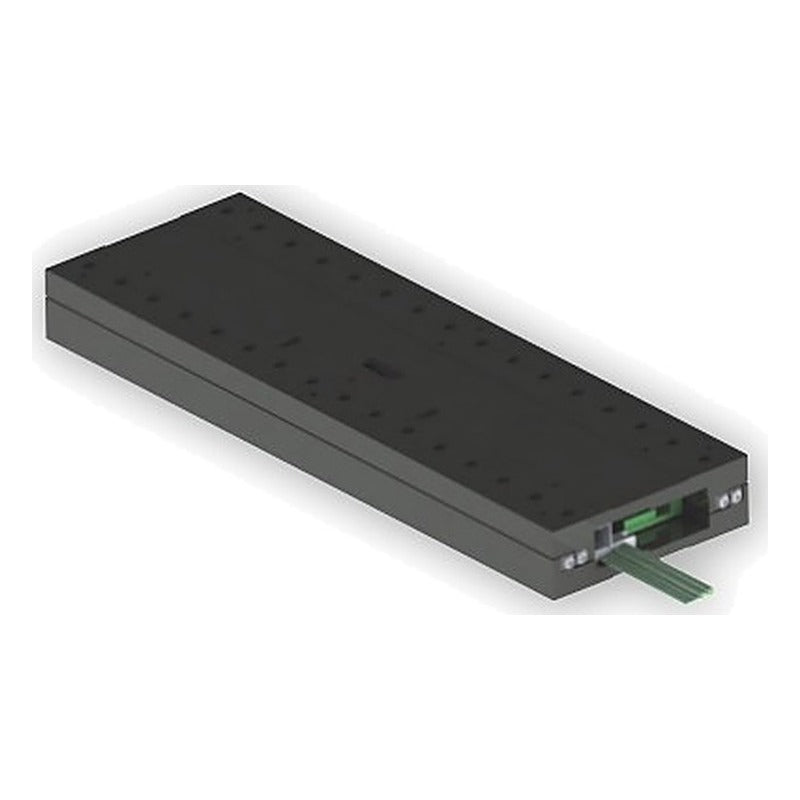

TPC Mechatronics TLR Series Compact Linear Motor Stage (Cross Roller Guide)

TPC Mechatronics TLR Series Compact Linear Motor Stage (Cross Roller Guide)

The TLR Series is a compact linear motor stage with a cross roller guide and linear encoder feedback.

Key features

  • It offers 10 nm resolution, repeatability of ±1.0 μm and 20 μm flatness/straightness over full travel
  • The compact design simplifies installation, and the cableless magnet operation is optimized for clean environments (Class 100)
  • Strokes of 120, 200 and 275 mm are listed, and customization is available

Specifications

Motor peak force 42 N
Resolution 10 nm/count
Mean position accuracy ±1.0 μm / full travel (after error mapping)
Repeatability ±1.0 μm
Flatness / straightness 20 μm / full travel
Max. acceleration 0.4 G
Cleanliness Class 100
Guide Cross roller guide
TPC Mechatronics TLR Series Compact Linear Motor Stage (Cross Roller Guide) reference 2
TLR40C Payload: 4.2 kg @ slide | Travel: 275 mm | Overall length: 404 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 400m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
TLR30C Payload: 3.0 kg @ slide | Travel: 200 mm | Overall length: 300 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 300m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
TLR24C Payload: 2.3 kg @ slide | Travel: 120 mm | Overall length: 240 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 300m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
Linear StagesTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TLR Series Compact Linear Motor Stage (Cross Roller Guide)

Brand TPC Mechatronics·Linear Stages

Available part numbers (3)

TLR40C, TLR30C, TLR24C

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics TLR Series Compact Linear Motor Stage (Cross Roller Guide) reference 2
0 selected
RFQ List (0)
Product codeSpec
TLR40CPayload: 4.2 kg @ slide | Travel: 275 mm | Overall length: 404 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 400m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
TLR30CPayload: 3.0 kg @ slide | Travel: 200 mm | Overall length: 300 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 300m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
TLR24CPayload: 2.3 kg @ slide | Travel: 120 mm | Overall length: 240 mm | Motor peak force: 42 N | Resolution: 10 nm/count | Mean position accuracy: ±1.0 μm / full travel (after error mapping) | Repeatability: ±1.0 μm | Flatness / straightness: 20 μm / full travel | Max. velocity: 300m | Max. acceleration: 0.4 G | Cleanliness: Class 100 | Guide: Cross roller guide
