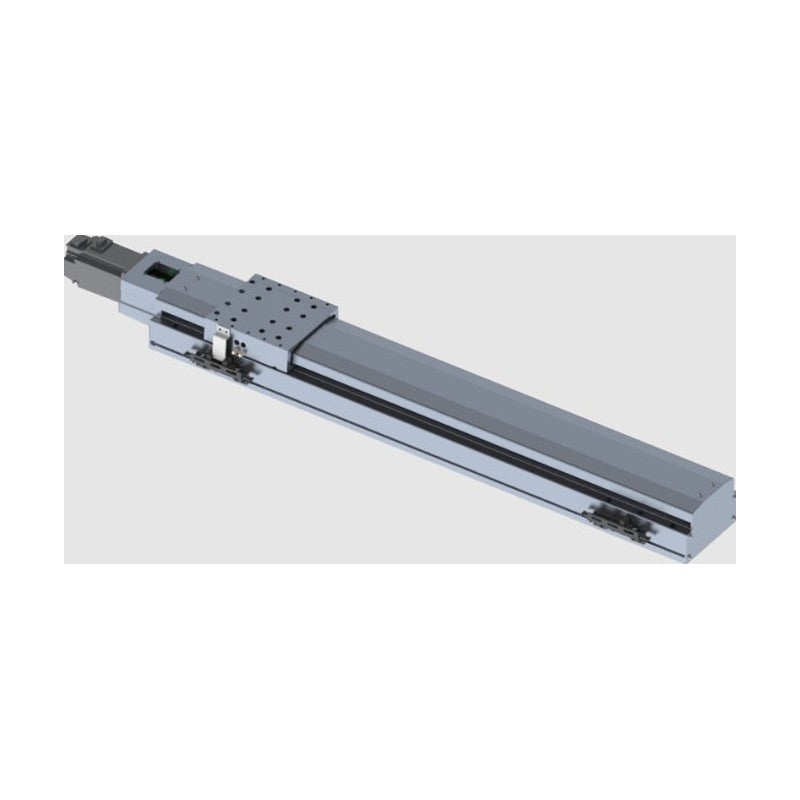

TPC Mechatronics TSC Ball Screw Linear Actuator (LM Guide, Sizes 90/120/160)
TPC Mechatronics TSC Ball Screw Linear Actuator (LM Guide, Sizes 90/120/160)
The TSC series is a ball screw driven linear actuator unit combining an LM guide with a precision rolled or ground ball screw, offered in sizes 90, 120 and 160.
Key features
- A sealed structure protects the inside of the unit from the external environment, and the compact, high-rigidity design allows easy multi-axis combination
- Repeatability is ±0.02 mm with a maximum speed of 1000 mm/s, and maintenance such as grease injection is simple
- Models are available with a direct-coupled motor bracket (E) or a parallel motor bracket (PL / PR)
- Stroke, ball screw grade and lead, color, sensors and motor bracket output are specified at order; listed strokes apply to the standard ground ball screw
Specifications
| Repeatability | ±0.02 mm |
|---|
| TSC90-E | Size: 90 | Motor mounting: Direct-coupled (E) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | |
| TSC90-PL | Size: 90 | Motor mounting: Parallel (PL) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | |
| TSC90-PR | Size: 90 | Motor mounting: Parallel (PR) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | |
| TSC120-E | Size: 120 | Motor mounting: Direct-coupled (E) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | |
| TSC120-PL | Size: 120 | Motor mounting: Parallel (PL) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | |
| TSC120-PR | Size: 120 | Motor mounting: Parallel (PR) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | |
| TSC160-E | Size: 160 | Motor mounting: Direct-coupled (E) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm | |
| TSC160-PL | Size: 160 | Motor mounting: Parallel (PL) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm | |
| TSC160-PR | Size: 160 | Motor mounting: Parallel (PR) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm |
Ball Screw Linear ActuatorsTPC Mechatronics
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics TSC Ball Screw Linear Actuator (LM Guide, Sizes 90/120/160)
Available part numbers (9)
TSC90-E, TSC90-PL, TSC90-PR, TSC120-E, TSC120-PL, TSC120-PR, TSC160-E, TSC160-PL, TSC160-PR
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Ball Screw Linear Actuators
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| TSC90-E | Size: 90 | Motor mounting: Direct-coupled (E) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | ||
| TSC90-PL | Size: 90 | Motor mounting: Parallel (PL) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | ||
| TSC90-PR | Size: 90 | Motor mounting: Parallel (PR) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 20 / 15 kg | Max payload vertical: 10 / 8 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 95 x 100 mm | ||
| TSC120-E | Size: 120 | Motor mounting: Direct-coupled (E) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | ||
| TSC120-PL | Size: 120 | Motor mounting: Parallel (PL) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | ||
| TSC120-PR | Size: 120 | Motor mounting: Parallel (PR) | Stroke: 50~940 mm | Lead: 10 / 20 mm | Max speed: 500 / 1000 mm/s | Motor: 200 / 400 W | Max payload horizontal: 80 / 40 kg | Max payload vertical: 20 / 15 kg | Ball screw diameter: Ø15 mm | Repeatability: ±0.02 mm | Size W x H: 125 x 86 mm | ||
| TSC160-E | Size: 160 | Motor mounting: Direct-coupled (E) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm | ||
| TSC160-PL | Size: 160 | Motor mounting: Parallel (PL) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm | ||
| TSC160-PR | Size: 160 | Motor mounting: Parallel (PR) | Stroke: 50~1200 mm | Lead: 10 / 20 / 20 mm | Max speed: 500 / 1000 / 1000 mm/s | Motor: 400 / 400 / 750 W | Max payload horizontal: 80 / 35 / 70 kg | Max payload vertical: 40 / 20 / 30 kg | Ball screw diameter: Ø20 mm | Repeatability: ±0.02 mm | Size W x H: 165 x 104 mm |
Need a different model, or a part not listed here? Send us your parts list →
