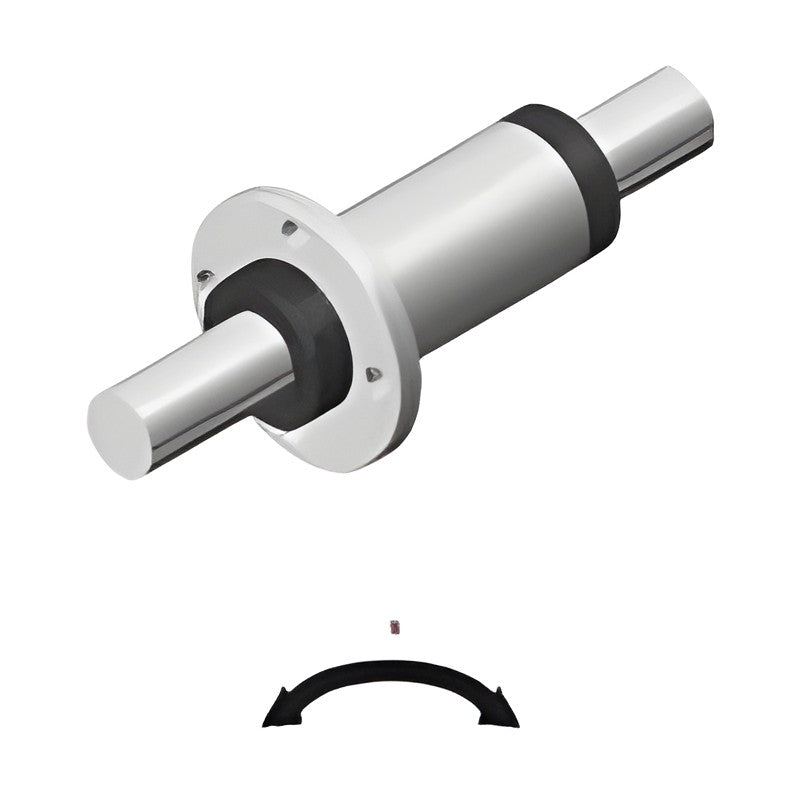

WON ST Compact Ball Spline WSPFL Series, Long Round Flange Type

WON ST Compact Ball Spline WSPFL Series, Long Round Flange Type

Compact ball spline with a precision-ground Gothic-arch spline shaft and ball nut that carries radial and moment loads and transmits rotational torque with one nut; long round flange nut.

Key features

  • Long round flange nut for easy installation and higher load capacity
  • Two rows of Gothic-arch grooves with 4-point ball contact
  • Transmits torque while bearing radial and moment loads with one nut
  • Preload possible for zero rotational clearance and high rigidity
  • Rated load about ten times that of a ball bushing of equal shaft diameter

Specifications

Nut type Long round flange nut
Shaft type options S solid / H hollow
Clearance options CL no preload / CM standard / CT light preload
Precision options Normal / H precision / P super
Material options Standard / M stainless (nut and shaft)
WSPFL5 Shaft diameter d: 5 mm | Nut outer diameter D: 10 mm | Nut length L1: 26 mm | Flange diameter D1: 23 mm | Bolt PCD: 17 mm | C (dynamic): 882 N | C0 (static): 1176 N | T (dynamic torque): 2.646 N·m | T0 (static torque): 3.528 N·m | Nut mass: 12 g | Shaft mass: 14.9 g/100mm | Max. shaft length: 200 mm
WSPFL6 Shaft diameter d: 6 mm | Nut outer diameter D: 12 mm | Nut length L1: 29.8 mm | Flange diameter D1: 25 mm | Bolt PCD: 19 mm | C (dynamic): 1078 N | C0 (static): 1470 N | T (dynamic torque): 3.626 N·m | T0 (static torque): 5.194 N·m | Nut mass: 19.5 g | Shaft mass: 19 g/100mm | Max. shaft length: 300 mm
WSPFL8 Shaft diameter d: 8 mm | Nut outer diameter D: 15 mm | Nut length L1: 36.7 mm | Flange diameter D1: 28 mm | Bolt PCD: 22 mm | C (dynamic): 1764 N | C0 (static): 2450 N | T (dynamic torque): 8.33 N·m | T0 (static torque): 11.76 N·m | Nut mass: 34.1 g | Shaft mass: 39 g/100mm | Max. shaft length: 500 mm
WSPFL10 Shaft diameter d: 10 mm | Nut outer diameter D: 19 mm | Nut length L1: 47 mm | Flange diameter D1: 36 mm | Bolt PCD: 28 mm | C (dynamic): 2842 N | C0 (static): 4018 N | T (dynamic torque): 16.66 N·m | T0 (static torque): 23.52 N·m | Nut mass: 70 g | Shaft mass: 60.5 g/100mm | Max. shaft length: 600 mm
WSPFL12 Shaft diameter d: 12 mm | Nut outer diameter D: 21 mm | Nut length L1: 53.1 mm | Flange diameter D1: 38 mm | Bolt PCD: 30 mm | C (dynamic): 3234 N | C0 (static): 4802 N | T (dynamic torque): 21.56 N·m | T0 (static torque): 33.32 N·m | Nut mass: 91.8 g | Shaft mass: 87.5 g/100mm | Max. shaft length: 800 mm
WSPFL15 Shaft diameter d: 13.6 mm | Nut outer diameter D: 23 mm | Nut length L1: 65 mm | Flange diameter D1: 40 mm | Bolt PCD: 32 mm | C (dynamic): 6370 N | C0 (static): 11564 N | T (dynamic torque): 48.02 N·m | T0 (static torque): 86.24 N·m | Nut mass: 127.5 g | Shaft mass: 111 g/100mm | Max. shaft length: 1000 mm
WSPFL20 Shaft diameter d: 18.2 mm | Nut outer diameter D: 30 mm | Nut length L1: 71 mm | Flange diameter D1: 46 mm | Bolt PCD: 38 mm | C (dynamic): 9310 N | C0 (static): 15092 N | T (dynamic torque): 93.10 N·m | T0 (static torque): 150.92 N·m | Nut mass: 218 g | Shaft mass: 202 g/100mm | Max. shaft length: 1000 mm
WSPFL25 Shaft diameter d: 22.6 mm | Nut outer diameter D: 37 mm | Nut length L1: 84 mm | Flange diameter D1: 57 mm | Bolt PCD: 47 mm | C (dynamic): 15394 N | C0 (static): 23191 N | T (dynamic torque): 192.92 N·m | T0 (static torque): 289.88 N·m | Nut mass: 371 g | Shaft mass: 310 g/100mm | Max. shaft length: 1200 mm
WSPFL30 Shaft diameter d: 27.2 mm | Nut outer diameter D: 45 mm | Nut length L1: 98 mm | Flange diameter D1: 65 mm | Bolt PCD: 54 mm | C (dynamic): 21291 N | C0 (static): 31587 N | T (dynamic torque): 319.84 N·m | T0 (static torque): 473.81 N·m | Nut mass: 680 g | Shaft mass: 450 g/100mm | Max. shaft length: 1200 mm
Ball SplinesWON ST
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Compact Ball Spline WSPFL Series, Long Round Flange Type

Brand WON ST·Ball Splines

Available part numbers (9)

WSPFL5, WSPFL6, WSPFL8, WSPFL10, WSPFL12, WSPFL15, WSPFL20, WSPFL25, WSPFL30
