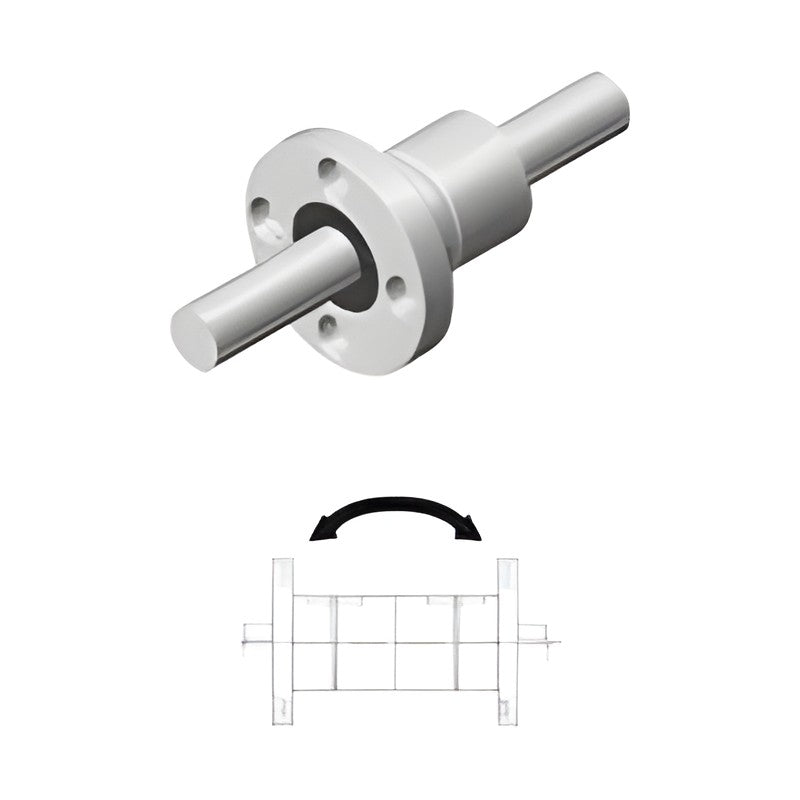

WON ST Compact Ball Spline WSPTFO Series, Round Flange Type with Internal Retainer (Large Shaft)

WON ST Compact Ball Spline WSPTFO Series, Round Flange Type with Internal Retainer (Large Shaft)

Compact ball spline with a precision-ground Gothic-arch spline shaft and ball nut that carries radial and moment loads and transmits rotational torque with one nut; round flange nut with internal retainer on 16/20 mm shafts.

Key features

  • Round flange nut for easy installation
  • Retainer placed inside the nut
  • Two rows of Gothic-arch grooves with 4-point ball contact
  • Transmits torque while bearing radial and moment loads with one nut
  • Preload possible for zero rotational clearance and high rigidity

Specifications

Nut type Round flange nut with internal retainer
Shaft type options S solid / H hollow
Clearance options CL no preload / CM standard / CT light preload
Precision options Normal / H precision / P super
Material options Standard / M stainless (nut and shaft)
WSPTFO16 Shaft diameter d: 16 mm | Nut outer diameter D: 31 mm | Nut length L1: 50 mm | Flange diameter D1: 51 mm | Bolt PCD: 40 mm | C (dynamic): 7060 N | C0 (static): 12600 N | T (dynamic torque): 31.4 N·m | T0 (static torque): 34.3 N·m | Nut mass: 165 g | Shaft mass: 160 g/100mm | Max. shaft length: 1000 mm
WSPTFO20 Shaft diameter d: 20 mm | Nut outer diameter D: 35 mm | Nut length L1: 63 mm | Flange diameter D1: 58 mm | Bolt PCD: 45 mm | C (dynamic): 10200 N | C0 (static): 17800 N | T (dynamic torque): 56.9 N·m | T0 (static torque): 55.9 N·m | Nut mass: 225 g | Shaft mass: 250 g/100mm | Max. shaft length: 1000 mm
