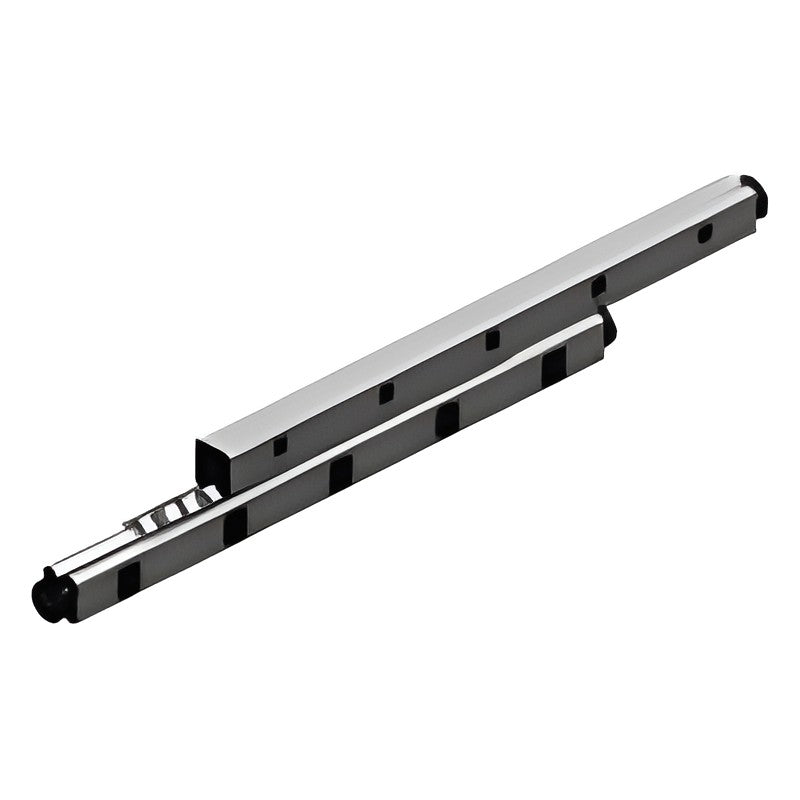

WON ST Cross Roller Guide Way WRG Series

WON ST Cross Roller Guide Way WRG Series

Cross roller guide way set in which roller cages with precision rollers crossed at right angles run between 90 degree V-grooved race rails for precise, low-friction finite linear motion.

Key features

  • Precision rollers crossed at right angles on 90 degree V-grooved race rails
  • Low friction with almost no difference between static and dynamic friction
  • Non-recirculating design for low noise
  • High rigidity and load capacity from roller rolling elements
  • Preload easily applied for zero clearance

Specifications

Set composition Race rail 4 pcs, roller cage 2 pcs, stopper 8 pcs
Load rating basis Per set
WRG1020 Max. stroke: 12 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 5 | Length L: 20 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 1 x 10 mm | Mounting bolt F: M2 | C (dynamic): 0.46 kN | C0 (static): 0.61 kN | Mass: 9 g/set
WRG1030 Max. stroke: 22 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 7 | Length L: 30 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 2 x 10 mm | Mounting bolt F: M2 | C (dynamic): 0.63 kN | C0 (static): 0.92 kN | Mass: 13 g/set
WRG1040 Max. stroke: 27 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 10 | Length L: 40 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 3 x 10 mm | Mounting bolt F: M2 | C (dynamic): 0.95 kN | C0 (static): 1.53 kN | Mass: 18 g/set
WRG1050 Max. stroke: 32 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 13 | Length L: 50 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 4 x 10 mm | Mounting bolt F: M2 | C (dynamic): 1.09 kN | C0 (static): 1.84 kN | Mass: 22 g/set
WRG1060 Max. stroke: 37 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 16 | Length L: 60 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 5 x 10 mm | Mounting bolt F: M2 | C (dynamic): 1.37 kN | C0 (static): 2.45 kN | Mass: 26 g/set
WRG1070 Max. stroke: 42 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 19 | Length L: 70 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 6 x 10 mm | Mounting bolt F: M2 | C (dynamic): 1.50 kN | C0 (static): 2.75 kN | Mass: 30 g/set
WRG1080 Max. stroke: 52 mm | Roller diameter D: 1.5 mm | No. of rollers Z: 21 | Length L: 80 mm | A: 8.5 mm | B: 4 mm | C: 3.8 mm | Hole pitch M x P: 7 x 10 mm | Mounting bolt F: M2 | C (dynamic): 1.63 kN | C0 (static): 3.06 kN | Mass: 35 g/set
WRG2030 Max. stroke: 18 mm | Roller diameter D: 2 mm | No. of rollers Z: 5 | Length L: 30 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 1 x 15 mm | Mounting bolt F: M3 | C (dynamic): 0.84 kN | C0 (static): 1.08 kN | Mass: 28 g/set
WRG2045 Max. stroke: 24 mm | Roller diameter D: 2 mm | No. of rollers Z: 8 | Length L: 45 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 2 x 15 mm | Mounting bolt F: M3 | C (dynamic): 1.46 kN | C0 (static): 2.17 kN | Mass: 43 g/set
WRG2060 Max. stroke: 30 mm | Roller diameter D: 2 mm | No. of rollers Z: 11 | Length L: 60 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 3 x 15 mm | Mounting bolt F: M3 | C (dynamic): 1.74 kN | C0 (static): 2.71 kN | Mass: 57 g/set
WRG2075 Max. stroke: 44 mm | Roller diameter D: 2 mm | No. of rollers Z: 13 | Length L: 75 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 4 x 15 mm | Mounting bolt F: M3 | C (dynamic): 2.01 kN | C0 (static): 3.25 kN | Mass: 71 g/set
WRG2090 Max. stroke: 50 mm | Roller diameter D: 2 mm | No. of rollers Z: 16 | Length L: 90 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 5 x 15 mm | Mounting bolt F: M3 | C (dynamic): 2.52 kN | C0 (static): 4.34 kN | Mass: 85 g/set
WRG2105 Max. stroke: 64 mm | Roller diameter D: 2 mm | No. of rollers Z: 18 | Length L: 105 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 6 x 15 mm | Mounting bolt F: M3 | C (dynamic): 2.76 kN | C0 (static): 4.88 kN | Mass: 98 g/set
WRG2120 Max. stroke: 70 mm | Roller diameter D: 2 mm | No. of rollers Z: 21 | Length L: 120 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 7 x 15 mm | Mounting bolt F: M3 | C (dynamic): 3.00 kN | C0 (static): 5.42 kN | Mass: 112 g/set
WRG2135 Max. stroke: 84 mm | Roller diameter D: 2 mm | No. of rollers Z: 23 | Length L: 135 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 8 x 15 mm | Mounting bolt F: M3 | C (dynamic): 3.23 kN | C0 (static): 5.96 kN | Mass: 126 g/set
WRG2150 Max. stroke: 90 mm | Roller diameter D: 2 mm | No. of rollers Z: 26 | Length L: 150 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 9 x 15 mm | Mounting bolt F: M3 | C (dynamic): 3.68 kN | C0 (static): 7.05 kN | Mass: 140 g/set
WRG2165 Max. stroke: 96 mm | Roller diameter D: 2 mm | No. of rollers Z: 29 | Length L: 165 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 10 x 15 mm | Mounting bolt F: M3 | C (dynamic): 3.90 kN | C0 (static): 7.59 kN | Mass: 153 g/set
WRG2180 Max. stroke: 102 mm | Roller diameter D: 2 mm | No. of rollers Z: 32 | Length L: 180 mm | A: 12 mm | B: 6 mm | C: 5.5 mm | Hole pitch M x P: 11 x 15 mm | Mounting bolt F: M3 | C (dynamic): 4.32 kN | C0 (static): 8.67 kN | Mass: 166 g/set
WRG3050 Max. stroke: 28 mm | Roller diameter D: 3 mm | No. of rollers Z: 7 | Length L: 50 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 1 x 25 mm | Mounting bolt F: M4 | C (dynamic): 2.71 kN | C0 (static): 3.67 kN | Mass: 98 g/set
WRG3075 Max. stroke: 48 mm | Roller diameter D: 3 mm | No. of rollers Z: 10 | Length L: 75 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 2 x 25 mm | Mounting bolt F: M4 | C (dynamic): 4.06 kN | C0 (static): 6.11 kN | Mass: 148 g/set
WRG3100 Max. stroke: 58 mm | Roller diameter D: 3 mm | No. of rollers Z: 14 | Length L: 100 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 3 x 25 mm | Mounting bolt F: M4 | C (dynamic): 5.28 kN | C0 (static): 8.55 kN | Mass: 195 g/set
WRG3125 Max. stroke: 78 mm | Roller diameter D: 3 mm | No. of rollers Z: 17 | Length L: 125 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 4 x 25 mm | Mounting bolt F: M4 | C (dynamic): 5.86 kN | C0 (static): 9.78 kN | Mass: 242 g/set
WRG3150 Max. stroke: 88 mm | Roller diameter D: 3 mm | No. of rollers Z: 21 | Length L: 150 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 5 x 25 mm | Mounting bolt F: M4 | C (dynamic): 6.98 kN | C0 (static): 12.2 kN | Mass: 289 g/set
WRG3175 Max. stroke: 108 mm | Roller diameter D: 3 mm | No. of rollers Z: 24 | Length L: 175 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 6 x 25 mm | Mounting bolt F: M4 | C (dynamic): 8.05 kN | C0 (static): 14.7 kN | Mass: 336 g/set
WRG3200 Max. stroke: 118 mm | Roller diameter D: 3 mm | No. of rollers Z: 28 | Length L: 200 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 7 x 25 mm | Mounting bolt F: M4 | C (dynamic): 9.08 kN | C0 (static): 17.1 kN | Mass: 384 g/set
WRG3225 Max. stroke: 138 mm | Roller diameter D: 3 mm | No. of rollers Z: 31 | Length L: 225 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 8 x 25 mm | Mounting bolt F: M4 | C (dynamic): 9.58 kN | C0 (static): 18.33 kN | Mass: 431 g/set
WRG3250 Max. stroke: 148 mm | Roller diameter D: 3 mm | No. of rollers Z: 35 | Length L: 250 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 9 x 25 mm | Mounting bolt F: M4 | C (dynamic): 10.56 kN | C0 (static): 20.8 kN | Mass: 478 g/set
WRG3275 Max. stroke: 168 mm | Roller diameter D: 3 mm | No. of rollers Z: 38 | Length L: 275 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 10 x 25 mm | Mounting bolt F: M4 | C (dynamic): 11.52 kN | C0 (static): 23.2 kN | Mass: 525 g/set
WRG3300 Max. stroke: 178 mm | Roller diameter D: 3 mm | No. of rollers Z: 42 | Length L: 300 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 11 x 25 mm | Mounting bolt F: M4 | C (dynamic): 12.45 kN | C0 (static): 25.7 kN | Mass: 572 g/set
WRG3325 Max. stroke: 198 mm | Roller diameter D: 3 mm | No. of rollers Z: 45 | Length L: 325 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 12 x 25 mm | Mounting bolt F: M4 | C (dynamic): 12.91 kN | C0 (static): 26.9 kN | Mass: 619 g/set
WRG3350 Max. stroke: 208 mm | Roller diameter D: 3 mm | No. of rollers Z: 49 | Length L: 350 mm | A: 18 mm | B: 8 mm | C: 8.3 mm | Hole pitch M x P: 13 x 25 mm | Mounting bolt F: M4 | C (dynamic): 13.82 kN | C0 (static): 29.3 kN | Mass: 647 g/set
WRG4080 Max. stroke: 58 mm | Roller diameter D: 4 mm | No. of rollers Z: 7 | Length L: 80 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 1 x 40 mm | Mounting bolt F: M5 | C (dynamic): 5.92 kN | C0 (static): 8.10 kN | Mass: 260 g/set
WRG4120 Max. stroke: 82 mm | Roller diameter D: 4 mm | No. of rollers Z: 11 | Length L: 120 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 2 x 40 mm | Mounting bolt F: M5 | C (dynamic): 8.85 kN | C0 (static): 13.5 kN | Mass: 400 g/set
WRG4160 Max. stroke: 106 mm | Roller diameter D: 4 mm | No. of rollers Z: 15 | Length L: 160 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 3 x 40 mm | Mounting bolt F: M5 | C (dynamic): 11.5 kN | C0 (static): 18.9 kN | Mass: 530 g/set
WRG4200 Max. stroke: 130 mm | Roller diameter D: 4 mm | No. of rollers Z: 19 | Length L: 200 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 4 x 40 mm | Mounting bolt F: M5 | C (dynamic): 14.0 kN | C0 (static): 24.3 kN | Mass: 660 g/set
WRG4240 Max. stroke: 154 mm | Roller diameter D: 4 mm | No. of rollers Z: 23 | Length L: 240 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 5 x 40 mm | Mounting bolt F: M5 | C (dynamic): 16.4 kN | C0 (static): 29.7 kN | Mass: 790 g/set
WRG4280 Max. stroke: 178 mm | Roller diameter D: 4 mm | No. of rollers Z: 27 | Length L: 280 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 6 x 40 mm | Mounting bolt F: M5 | C (dynamic): 18.7 kN | C0 (static): 35.1 kN | Mass: 920 g/set
WRG4320 Max. stroke: 202 mm | Roller diameter D: 4 mm | No. of rollers Z: 31 | Length L: 320 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 7 x 40 mm | Mounting bolt F: M5 | C (dynamic): 20.88 kN | C0 (static): 40.5 kN | Mass: 1050 g/set
WRG4360 Max. stroke: 226 mm | Roller diameter D: 4 mm | No. of rollers Z: 35 | Length L: 360 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 8 x 40 mm | Mounting bolt F: M5 | C (dynamic): 23.0 kN | C0 (static): 45.9 kN | Mass: 1180 g/set
WRG4400 Max. stroke: 250 mm | Roller diameter D: 4 mm | No. of rollers Z: 39 | Length L: 400 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 9 x 40 mm | Mounting bolt F: M5 | C (dynamic): 25.1 kN | C0 (static): 51.3 kN | Mass: 1300 g/set
WRG4440 Max. stroke: 274 mm | Roller diameter D: 4 mm | No. of rollers Z: 43 | Length L: 440 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 10 x 40 mm | Mounting bolt F: M5 | C (dynamic): 27.1 kN | C0 (static): 56.7 kN | Mass: 1430 g/set
WRG4480 Max. stroke: 298 mm | Roller diameter D: 4 mm | No. of rollers Z: 47 | Length L: 480 mm | A: 22 mm | B: 11 mm | C: 10.2 mm | Hole pitch M x P: 11 x 40 mm | Mounting bolt F: M5 | C (dynamic): 29.1 kN | C0 (static): 62.1 kN | Mass: 1530 g/set
WRG6100 Max. stroke: 56 mm | Roller diameter D: 6 mm | No. of rollers Z: 7 | Length L: 100 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 1 x 50 mm | Mounting bolt F: M6 | C (dynamic): 16.4 kN | C0 (static): 22.7 kN | Mass: 630 g/set
WRG6150 Max. stroke: 96 mm | Roller diameter D: 6 mm | No. of rollers Z: 10 | Length L: 150 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 2 x 50 mm | Mounting bolt F: M6 | C (dynamic): 24.5 kN | C0 (static): 37.8 kN | Mass: 950 g/set
WRG6200 Max. stroke: 136 mm | Roller diameter D: 6 mm | No. of rollers Z: 13 | Length L: 200 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 3 x 50 mm | Mounting bolt F: M6 | C (dynamic): 28.2 kN | C0 (static): 45.4 kN | Mass: 1260 g/set
WRG6250 Max. stroke: 156 mm | Roller diameter D: 6 mm | No. of rollers Z: 17 | Length L: 250 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 4 x 50 mm | Mounting bolt F: M6 | C (dynamic): 35.4 kN | C0 (static): 60.5 kN | Mass: 1570 g/set
WRG6300 Max. stroke: 196 mm | Roller diameter D: 6 mm | No. of rollers Z: 20 | Length L: 300 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 5 x 50 mm | Mounting bolt F: M6 | C (dynamic): 42.1 kN | C0 (static): 75.6 kN | Mass: 1800 g/set
WRG6350 Max. stroke: 216 mm | Roller diameter D: 6 mm | No. of rollers Z: 24 | Length L: 350 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 6 x 50 mm | Mounting bolt F: M6 | C (dynamic): 48.5 kN | C0 (static): 90.7 kN | Mass: 2190 g/set
WRG6400 Max. stroke: 256 mm | Roller diameter D: 6 mm | No. of rollers Z: 27 | Length L: 400 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 7 x 50 mm | Mounting bolt F: M6 | C (dynamic): 51.7 kN | C0 (static): 98.3 kN | Mass: 2490 g/set
WRG6450 Max. stroke: 276 mm | Roller diameter D: 6 mm | No. of rollers Z: 31 | Length L: 450 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 8 x 50 mm | Mounting bolt F: M6 | C (dynamic): 57.8 kN | C0 (static): 113 kN | Mass: 2810 g/set
WRG6500 Max. stroke: 316 mm | Roller diameter D: 6 mm | No. of rollers Z: 34 | Length L: 500 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 9 x 50 mm | Mounting bolt F: M6 | C (dynamic): 63.7 kN | C0 (static): 128 kN | Mass: 3110 g/set
WRG6550 Max. stroke: 336 mm | Roller diameter D: 6 mm | No. of rollers Z: 38 | Length L: 550 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 10 x 50 mm | Mounting bolt F: M6 | C (dynamic): 69.5 kN | C0 (static): 143 kN | Mass: 3420 g/set
WRG6600 Max. stroke: 376 mm | Roller diameter D: 6 mm | No. of rollers Z: 41 | Length L: 600 mm | A: 31 mm | B: 15 mm | C: 14.2 mm | Hole pitch M x P: 11 x 50 mm | Mounting bolt F: M6 | C (dynamic): 72.3 kN | C0 (static): 151 kN | Mass: 3730 g/set
WRG9200 Max. stroke: 118 mm | Roller diameter D: 9 mm | No. of rollers Z: 10 | Length L: 200 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 1 x 100 mm | Mounting bolt F: M8 | C (dynamic): 62.3 kN | C0 (static): 94.8 kN | Mass: 2710 g/set
WRG9300 Max. stroke: 178 mm | Roller diameter D: 9 mm | No. of rollers Z: 15 | Length L: 300 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 2 x 100 mm | Mounting bolt F: M8 | C (dynamic): 81.1 kN | C0 (static): 133 kN | Mass: 4050 g/set
WRG9400 Max. stroke: 238 mm | Roller diameter D: 9 mm | No. of rollers Z: 20 | Length L: 400 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 3 x 100 mm | Mounting bolt F: M8 | C (dynamic): 107 kN | C0 (static): 190 kN | Mass: 5350 g/set
WRG9500 Max. stroke: 298 mm | Roller diameter D: 9 mm | No. of rollers Z: 25 | Length L: 500 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 4 x 100 mm | Mounting bolt F: M8 | C (dynamic): 123 kN | C0 (static): 228 kN | Mass: 6680 g/set
WRG9600 Max. stroke: 358 mm | Roller diameter D: 9 mm | No. of rollers Z: 30 | Length L: 600 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 5 x 100 mm | Mounting bolt F: M8 | C (dynamic): 147 kN | C0 (static): 284 kN | Mass: 8010 g/set
WRG9700 Max. stroke: 418 mm | Roller diameter D: 9 mm | No. of rollers Z: 35 | Length L: 700 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 6 x 100 mm | Mounting bolt F: M8 | C (dynamic): 162 kN | C0 (static): 322 kN | Mass: 9330 g/set
WRG9800 Max. stroke: 478 mm | Roller diameter D: 9 mm | No. of rollers Z: 40 | Length L: 800 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 7 x 100 mm | Mounting bolt F: M8 | C (dynamic): 184 kN | C0 (static): 379 kN | Mass: 10650 g/set
WRG9900 Max. stroke: 538 mm | Roller diameter D: 9 mm | No. of rollers Z: 45 | Length L: 900 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 8 x 100 mm | Mounting bolt F: M8 | C (dynamic): 198 kN | C0 (static): 417 kN | Mass: 11970 g/set
WRG91000 Max. stroke: 598 mm | Roller diameter D: 9 mm | No. of rollers Z: 50 | Length L: 1000 mm | A: 44 mm | B: 22 mm | C: 20.2 mm | Hole pitch M x P: 9 x 100 mm | Mounting bolt F: M8 | C (dynamic): 219 kN | C0 (static): 474 kN | Mass: 13300 g/set
Cross Roller GuidesWON ST
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Cross Roller Guide Way WRG Series

Brand WON ST·Cross Roller Guides

Available part numbers (62)

WRG1020, WRG1030, WRG1040, WRG1050, WRG1060, WRG1070, WRG1080, WRG2030, WRG2045, WRG2060 + 52 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
