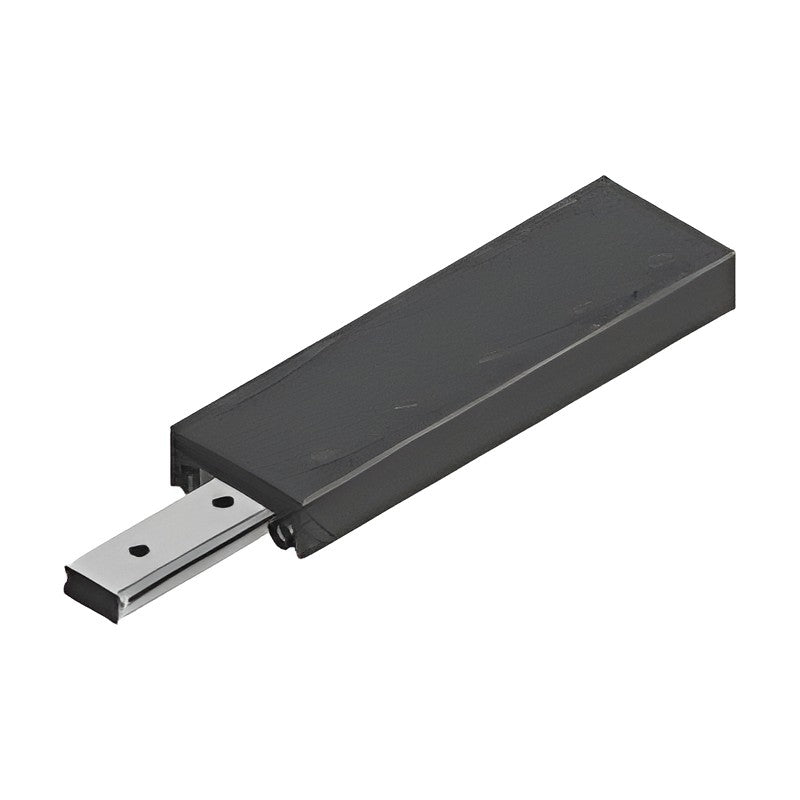

WON ST Cross Roller Table WRGT Series

WON ST Cross Roller Table WRGT Series

Compact cross roller table unit in which cross roller guide ways are mounted between a precision table and base for highly precise, rigid finite linear motion.

Key features

  • Compact, highly precise and rigid unit for finite linear motion
  • Cross roller guide ways mounted between a precision table and base
  • Pre-filled with lithium grease

Specifications

Lubrication Pre-filled with lithium grease
WRGT1025 Max. stroke: 12 mm | Width W: 20 mm | Height M: 8 mm | Length L: 25 mm | C (dynamic): 0.46 kN | C0 (static): 0.61 kN
WRGT1035 Max. stroke: 18 mm | Width W: 20 mm | Height M: 8 mm | Length L: 35 mm | C (dynamic): 0.63 kN | C0 (static): 0.92 kN
WRGT1045 Max. stroke: 25 mm | Width W: 20 mm | Height M: 8 mm | Length L: 45 mm | C (dynamic): 0.95 kN | C0 (static): 1.53 kN
WRGT1055 Max. stroke: 32 mm | Width W: 20 mm | Height M: 8 mm | Length L: 55 mm | C (dynamic): 1.09 kN | C0 (static): 1.84 kN
WRGT1065 Max. stroke: 40 mm | Width W: 20 mm | Height M: 8 mm | Length L: 65 mm | C (dynamic): 1.23 kN | C0 (static): 2.14 kN
WRGT1075 Max. stroke: 45 mm | Width W: 20 mm | Height M: 8 mm | Length L: 75 mm | C (dynamic): 1.50 kN | C0 (static): 2.75 kN
WRGT1085 Max. stroke: 50 mm | Width W: 20 mm | Height M: 8 mm | Length L: 85 mm | C (dynamic): 1.63 kN | C0 (static): 3.06 kN
WRGT2035 Max. stroke: 18 mm | Width W: 30 mm | Height M: 12 mm | Length L: 35 mm | C (dynamic): 0.84 kN | C0 (static): 1.08 kN
WRGT2050 Max. stroke: 30 mm | Width W: 30 mm | Height M: 12 mm | Length L: 50 mm | C (dynamic): 1.17 kN | C0 (static): 1.63 kN
WRGT2065 Max. stroke: 40 mm | Width W: 30 mm | Height M: 12 mm | Length L: 65 mm | C (dynamic): 1.46 kN | C0 (static): 2.17 kN
WRGT2080 Max. stroke: 50 mm | Width W: 30 mm | Height M: 12 mm | Length L: 80 mm | C (dynamic): 2.01 kN | C0 (static): 3.25 kN
WRGT2095 Max. stroke: 60 mm | Width W: 30 mm | Height M: 12 mm | Length L: 95 mm | C (dynamic): 2.27 kN | C0 (static): 3.79 kN
WRGT2110 Max. stroke: 70 mm | Width W: 30 mm | Height M: 12 mm | Length L: 110 mm | C (dynamic): 2.52 kN | C0 (static): 4.34 kN
WRGT2125 Max. stroke: 80 mm | Width W: 30 mm | Height M: 12 mm | Length L: 125 mm | C (dynamic): 2.76 kN | C0 (static): 4.88 kN
WRGT3055 Max. stroke: 30 mm | Width W: 40 mm | Height M: 16 mm | Length L: 55 mm | C (dynamic): 2.71 kN | C0 (static): 3.67 kN
WRGT3080 Max. stroke: 45 mm | Width W: 40 mm | Height M: 16 mm | Length L: 80 mm | C (dynamic): 4.06 kN | C0 (static): 6.11 kN
WRGT3105 Max. stroke: 60 mm | Width W: 40 mm | Height M: 16 mm | Length L: 105 mm | C (dynamic): 4.68 kN | C0 (static): 7.33 kN
WRGT3130 Max. stroke: 75 mm | Width W: 40 mm | Height M: 16 mm | Length L: 130 mm | C (dynamic): 5.86 kN | C0 (static): 9.78 kN
WRGT3155 Max. stroke: 90 mm | Width W: 40 mm | Height M: 16 mm | Length L: 155 mm | C (dynamic): 6.98 kN | C0 (static): 12.2 kN
WRGT3180 Max. stroke: 105 mm | Width W: 40 mm | Height M: 16 mm | Length L: 180 mm | C (dynamic): 8.05 kN | C0 (static): 14.7 kN
WRGT3205 Max. stroke: 130 mm | Width W: 40 mm | Height M: 16 mm | Length L: 205 mm | C (dynamic): 8.57 kN | C0 (static): 15.9 kN
Cross Roller GuidesWON ST
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Cross Roller Table WRGT Series

Brand WON ST·Cross Roller Guides

Available part numbers (21)

WRGT1025, WRGT1035, WRGT1045, WRGT1055, WRGT1065, WRGT1075, WRGT1085, WRGT2035, WRGT2050, WRGT2065 + 11 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WRGT1025Max. stroke: 12 mm | Width W: 20 mm | Height M: 8 mm | Length L: 25 mm | C (dynamic): 0.46 kN | C0 (static): 0.61 kN
WRGT1035Max. stroke: 18 mm | Width W: 20 mm | Height M: 8 mm | Length L: 35 mm | C (dynamic): 0.63 kN | C0 (static): 0.92 kN
WRGT1045Max. stroke: 25 mm | Width W: 20 mm | Height M: 8 mm | Length L: 45 mm | C (dynamic): 0.95 kN | C0 (static): 1.53 kN
WRGT1055Max. stroke: 32 mm | Width W: 20 mm | Height M: 8 mm | Length L: 55 mm | C (dynamic): 1.09 kN | C0 (static): 1.84 kN
WRGT1065Max. stroke: 40 mm | Width W: 20 mm | Height M: 8 mm | Length L: 65 mm | C (dynamic): 1.23 kN | C0 (static): 2.14 kN
WRGT1075Max. stroke: 45 mm | Width W: 20 mm | Height M: 8 mm | Length L: 75 mm | C (dynamic): 1.50 kN | C0 (static): 2.75 kN
WRGT1085Max. stroke: 50 mm | Width W: 20 mm | Height M: 8 mm | Length L: 85 mm | C (dynamic): 1.63 kN | C0 (static): 3.06 kN
WRGT2035Max. stroke: 18 mm | Width W: 30 mm | Height M: 12 mm | Length L: 35 mm | C (dynamic): 0.84 kN | C0 (static): 1.08 kN
WRGT2050Max. stroke: 30 mm | Width W: 30 mm | Height M: 12 mm | Length L: 50 mm | C (dynamic): 1.17 kN | C0 (static): 1.63 kN
WRGT2065Max. stroke: 40 mm | Width W: 30 mm | Height M: 12 mm | Length L: 65 mm | C (dynamic): 1.46 kN | C0 (static): 2.17 kN
WRGT2080Max. stroke: 50 mm | Width W: 30 mm | Height M: 12 mm | Length L: 80 mm | C (dynamic): 2.01 kN | C0 (static): 3.25 kN
WRGT2095Max. stroke: 60 mm | Width W: 30 mm | Height M: 12 mm | Length L: 95 mm | C (dynamic): 2.27 kN | C0 (static): 3.79 kN
WRGT2110Max. stroke: 70 mm | Width W: 30 mm | Height M: 12 mm | Length L: 110 mm | C (dynamic): 2.52 kN | C0 (static): 4.34 kN
WRGT2125Max. stroke: 80 mm | Width W: 30 mm | Height M: 12 mm | Length L: 125 mm | C (dynamic): 2.76 kN | C0 (static): 4.88 kN
WRGT3055Max. stroke: 30 mm | Width W: 40 mm | Height M: 16 mm | Length L: 55 mm | C (dynamic): 2.71 kN | C0 (static): 3.67 kN
WRGT3080Max. stroke: 45 mm | Width W: 40 mm | Height M: 16 mm | Length L: 80 mm | C (dynamic): 4.06 kN | C0 (static): 6.11 kN
WRGT3105Max. stroke: 60 mm | Width W: 40 mm | Height M: 16 mm | Length L: 105 mm | C (dynamic): 4.68 kN | C0 (static): 7.33 kN
WRGT3130Max. stroke: 75 mm | Width W: 40 mm | Height M: 16 mm | Length L: 130 mm | C (dynamic): 5.86 kN | C0 (static): 9.78 kN
WRGT3155Max. stroke: 90 mm | Width W: 40 mm | Height M: 16 mm | Length L: 155 mm | C (dynamic): 6.98 kN | C0 (static): 12.2 kN
WRGT3180Max. stroke: 105 mm | Width W: 40 mm | Height M: 16 mm | Length L: 180 mm | C (dynamic): 8.05 kN | C0 (static): 14.7 kN
WRGT3205Max. stroke: 130 mm | Width W: 40 mm | Height M: 16 mm | Length L: 205 mm | C (dynamic): 8.57 kN | C0 (static): 15.9 kN
