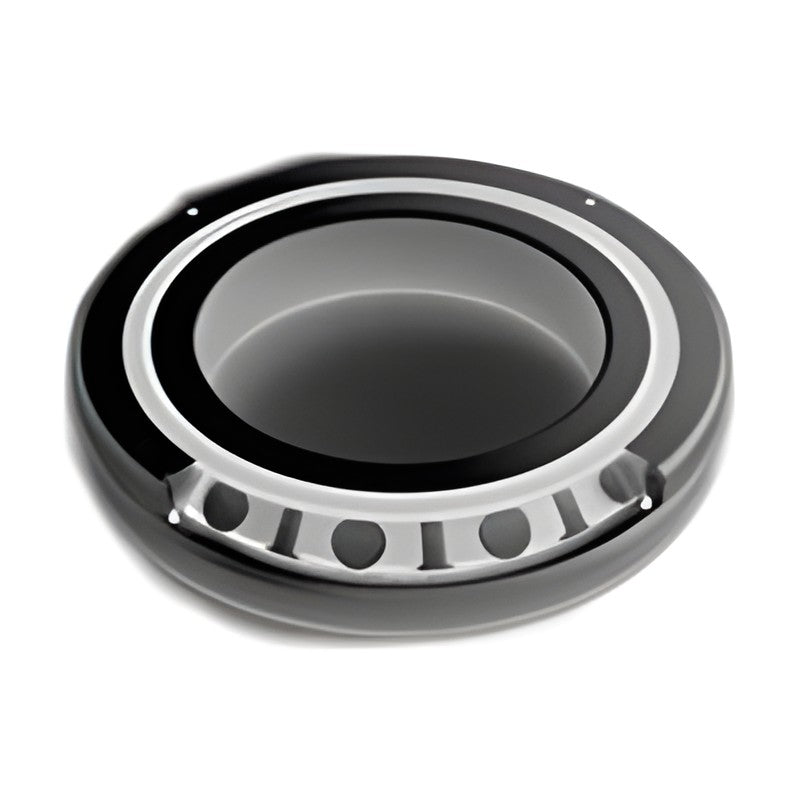

WON ST Crossed Roller Bearing CB Series, Standard Type (Separable Outer Ring)

WON ST Crossed Roller Bearing CB Series, Standard Type (Separable Outer Ring)

Standard crossed roller bearing with an integral inner ring and an outer ring split into upper and lower halves bolted together, designed for inner ring rotation in machine tool index tables and robot joints.

Key features

  • Rollers crossed at right angles between V-grooved inner and outer rings
  • Bears radial, axial and moment loads simultaneously
  • Spacer retainer prevents roller collision, friction and skewing
  • Integral inner ring, split outer ring bolted for easy handling

Specifications

Structure Integral inner ring, separable (split) outer ring
Rotation Inner ring rotation
Seal options No seal / UU two-side seal / U one-side seal
Precision classes Moderate / H6 High / P4 Super / P2 Ultra
CB2008 Inner diameter d: 20 mm | Outer diameter D: 36 mm | Roller pitch circle dp: 27 mm | Width B: 8 mm | r min: 0.5 mm | Shoulder ds max: 23.5 mm | Housing Dh min: 30.5 mm | C (dynamic, radial): 3.23 kN | C0 (static, radial): 3.1 kN | Mass: 0.04 kg
CB2508 Inner diameter d: 25 mm | Outer diameter D: 41 mm | Roller pitch circle dp: 32 mm | Width B: 8 mm | r min: 0.5 mm | Shoulder ds max: 28.5 mm | Housing Dh min: 35.5 mm | C (dynamic, radial): 3.63 kN | C0 (static, radial): 3.83 kN | Mass: 0.05 kg
CB3010 Inner diameter d: 30 mm | Outer diameter D: 55 mm | Roller pitch circle dp: 41.5 mm | Width B: 10 mm | r min: 0.6 mm | Shoulder ds max: 37 mm | Housing Dh min: 47 mm | C (dynamic, radial): 7.35 kN | C0 (static, radial): 8.36 kN | Mass: 0.12 kg
CB3510 Inner diameter d: 35 mm | Outer diameter D: 60 mm | Roller pitch circle dp: 46.5 mm | Width B: 10 mm | r min: 0.6 mm | Shoulder ds max: 41 mm | Housing Dh min: 51.5 mm | C (dynamic, radial): 7.64 kN | C0 (static, radial): 9.12 kN | Mass: 0.13 kg
CB4010 Inner diameter d: 40 mm | Outer diameter D: 65 mm | Roller pitch circle dp: 51.5 mm | Width B: 10 mm | r min: 0.6 mm | Shoulder ds max: 47.5 mm | Housing Dh min: 57.5 mm | C (dynamic, radial): 8.33 kN | C0 (static, radial): 10.6 kN | Mass: 0.16 kg
CB4510 Inner diameter d: 45 mm | Outer diameter D: 70 mm | Roller pitch circle dp: 56.5 mm | Width B: 10 mm | r min: 0.6 mm | Shoulder ds max: 51 mm | Housing Dh min: 61.5 mm | C (dynamic, radial): 8.62 kN | C0 (static, radial): 11.3 kN | Mass: 0.17 kg
CB5013 Inner diameter d: 50 mm | Outer diameter D: 80 mm | Roller pitch circle dp: 64 mm | Width B: 13 mm | r min: 0.6 mm | Shoulder ds max: 57.4 mm | Housing Dh min: 72 mm | C (dynamic, radial): 16.7 kN | C0 (static, radial): 20.9 kN | Mass: 0.27 kg
CB6013 Inner diameter d: 60 mm | Outer diameter D: 90 mm | Roller pitch circle dp: 74 mm | Width B: 13 mm | r min: 0.6 mm | Shoulder ds max: 68 mm | Housing Dh min: 82 mm | C (dynamic, radial): 18 kN | C0 (static, radial): 24.3 kN | Mass: 0.3 kg
CB7013 Inner diameter d: 70 mm | Outer diameter D: 100 mm | Roller pitch circle dp: 84 mm | Width B: 13 mm | r min: 0.6 mm | Shoulder ds max: 78 mm | Housing Dh min: 92 mm | C (dynamic, radial): 19.4 kN | C0 (static, radial): 27.7 kN | Mass: 0.35 kg
CB8016 Inner diameter d: 80 mm | Outer diameter D: 120 mm | Roller pitch circle dp: 98 mm | Width B: 16 mm | r min: 0.6 mm | Shoulder ds max: 91 mm | Housing Dh min: 111 mm | C (dynamic, radial): 30.1 kN | C0 (static, radial): 42.1 kN | Mass: 0.7 kg
CB9016 Inner diameter d: 90 mm | Outer diameter D: 130 mm | Roller pitch circle dp: 108 mm | Width B: 16 mm | r min: 1 mm | Shoulder ds max: 98 mm | Housing Dh min: 118 mm | C (dynamic, radial): 31.4 kN | C0 (static, radial): 45.3 kN | Mass: 0.75 kg
CB10016 Inner diameter d: 100 mm | Outer diameter D: 140 mm | Roller pitch circle dp: 119.3 mm | Width B: 16 mm | r min: 1 mm | Shoulder ds max: 109 mm | Housing Dh min: 129 mm | C (dynamic, radial): 31.7 kN | C0 (static, radial): 48.6 kN | Mass: 0.83 kg
CB10020 Inner diameter d: 100 mm | Outer diameter D: 150 mm | Roller pitch circle dp: 123 mm | Width B: 20 mm | r min: 1 mm | Shoulder ds max: 113 mm | Housing Dh min: 133 mm | C (dynamic, radial): 33.1 kN | C0 (static, radial): 50.9 kN | Mass: 1.45 kg
CB11012 Inner diameter d: 110 mm | Outer diameter D: 135 mm | Roller pitch circle dp: 121.8 mm | Width B: 12 mm | r min: 0.6 mm | Shoulder ds max: 117 mm | Housing Dh min: 127 mm | C (dynamic, radial): 12.5 kN | C0 (static, radial): 24.1 kN | Mass: 0.4 kg
CB11015 Inner diameter d: 110 mm | Outer diameter D: 145 mm | Roller pitch circle dp: 126.5 mm | Width B: 15 mm | r min: 0.6 mm | Shoulder ds max: 122 mm | Housing Dh min: 136 mm | C (dynamic, radial): 23.7 kN | C0 (static, radial): 41.5 kN | Mass: 0.75 kg
CB11020 Inner diameter d: 110 mm | Outer diameter D: 160 mm | Roller pitch circle dp: 133 mm | Width B: 20 mm | r min: 1 mm | Shoulder ds max: 120 mm | Housing Dh min: 143 mm | C (dynamic, radial): 34 kN | C0 (static, radial): 54 kN | Mass: 1.56 kg
CB12016 Inner diameter d: 120 mm | Outer diameter D: 150 mm | Roller pitch circle dp: 134.2 mm | Width B: 16 mm | r min: 0.6 mm | Shoulder ds max: 127 mm | Housing Dh min: 141 mm | C (dynamic, radial): 24.2 kN | C0 (static, radial): 43.2 kN | Mass: 0.72 kg
CB12025 Inner diameter d: 120 mm | Outer diameter D: 180 mm | Roller pitch circle dp: 148.7 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 133 mm | Housing Dh min: 164 mm | C (dynamic, radial): 66.9 kN | C0 (static, radial): 100 kN | Mass: 2.62 kg
CB13015 Inner diameter d: 130 mm | Outer diameter D: 160 mm | Roller pitch circle dp: 144.5 mm | Width B: 15 mm | r min: 0.6 mm | Shoulder ds max: 137 mm | Housing Dh min: 152 mm | C (dynamic, radial): 25 kN | C0 (static, radial): 46.7 kN | Mass: 0.72 kg
CB13025 Inner diameter d: 130 mm | Outer diameter D: 190 mm | Roller pitch circle dp: 158 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 143 mm | Housing Dh min: 174 mm | C (dynamic, radial): 69.5 kN | C0 (static, radial): 107 kN | Mass: 2.82 kg
CB14016 Inner diameter d: 140 mm | Outer diameter D: 175 mm | Roller pitch circle dp: 154.8 mm | Width B: 16 mm | r min: 1 mm | Shoulder ds max: 147 mm | Housing Dh min: 162 mm | C (dynamic, radial): 25.9 kN | C0 (static, radial): 50.1 kN | Mass: 1 kg
CB14025 Inner diameter d: 140 mm | Outer diameter D: 200 mm | Roller pitch circle dp: 168 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 154 mm | Housing Dh min: 185 mm | C (dynamic, radial): 74.8 kN | C0 (static, radial): 121 kN | Mass: 2.96 kg
CB15013 Inner diameter d: 150 mm | Outer diameter D: 180 mm | Roller pitch circle dp: 164 mm | Width B: 13 mm | r min: 0.6 mm | Shoulder ds max: 157 mm | Housing Dh min: 172 mm | C (dynamic, radial): 27 kN | C0 (static, radial): 53.5 kN | Mass: 0.68 kg
CB15025 Inner diameter d: 150 mm | Outer diameter D: 210 mm | Roller pitch circle dp: 178 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 164 mm | Housing Dh min: 194 mm | C (dynamic, radial): 76.8 kN | C0 (static, radial): 128 kN | Mass: 3.16 kg
CB15030 Inner diameter d: 150 mm | Outer diameter D: 230 mm | Roller pitch circle dp: 188 mm | Width B: 30 mm | r min: 1.5 mm | Shoulder ds max: 173 mm | Housing Dh min: 211 mm | C (dynamic, radial): 100 kN | C0 (static, radial): 156 kN | Mass: 5.3 kg
CB16025 Inner diameter d: 160 mm | Outer diameter D: 220 mm | Roller pitch circle dp: 188.6 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 173 mm | Housing Dh min: 204 mm | C (dynamic, radial): 81.7 kN | C0 (static, radial): 135 kN | Mass: 3.14 kg
CB17020 Inner diameter d: 170 mm | Outer diameter D: 220 mm | Roller pitch circle dp: 191 mm | Width B: 20 mm | r min: 1.5 mm | Shoulder ds max: 184 mm | Housing Dh min: 198 mm | C (dynamic, radial): 29 kN | C0 (static, radial): 62.1 kN | Mass: 2.21 kg
CB18025 Inner diameter d: 180 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 210 mm | Width B: 25 mm | r min: 1.5 mm | Shoulder ds max: 195 mm | Housing Dh min: 225 mm | C (dynamic, radial): 84 kN | C0 (static, radial): 143 kN | Mass: 3.44 kg
CB19025 Inner diameter d: 190 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 211.9 mm | Width B: 25 mm | r min: 1 mm | Shoulder ds max: 202 mm | Housing Dh min: 222 mm | C (dynamic, radial): 41.7 kN | C0 (static, radial): 82.9 kN | Mass: 2.99 kg
CB20025 Inner diameter d: 200 mm | Outer diameter D: 260 mm | Roller pitch circle dp: 230 mm | Width B: 25 mm | r min: 2 mm | Shoulder ds max: 215 mm | Housing Dh min: 245 mm | C (dynamic, radial): 84.2 kN | C0 (static, radial): 157 kN | Mass: 4 kg
CB20030 Inner diameter d: 200 mm | Outer diameter D: 280 mm | Roller pitch circle dp: 240 mm | Width B: 30 mm | r min: 2 mm | Shoulder ds max: 221 mm | Housing Dh min: 258 mm | C (dynamic, radial): 114 kN | C0 (static, radial): 200 kN | Mass: 6.7 kg
CB20035 Inner diameter d: 200 mm | Outer diameter D: 295 mm | Roller pitch circle dp: 247.7 mm | Width B: 35 mm | r min: 2 mm | Shoulder ds max: 225 mm | Housing Dh min: 270 mm | C (dynamic, radial): 151 kN | C0 (static, radial): 252 kN | Mass: 9.6 kg
CB22025 Inner diameter d: 220 mm | Outer diameter D: 280 mm | Roller pitch circle dp: 250.1 mm | Width B: 25 mm | r min: 2 mm | Shoulder ds max: 235 mm | Housing Dh min: 265 mm | C (dynamic, radial): 92.3 kN | C0 (static, radial): 171 kN | Mass: 4.1 kg
CB24025 Inner diameter d: 240 mm | Outer diameter D: 300 mm | Roller pitch circle dp: 269 mm | Width B: 25 mm | r min: 2.5 mm | Shoulder ds max: 256 mm | Housing Dh min: 281 mm | C (dynamic, radial): 68.3 kN | C0 (static, radial): 145 kN | Mass: 4.5 kg
CB25025 Inner diameter d: 250 mm | Outer diameter D: 310 mm | Roller pitch circle dp: 277.5 mm | Width B: 25 mm | r min: 2.5 mm | Shoulder ds max: 265 mm | Housing Dh min: 290 mm | C (dynamic, radial): 69.3 kN | C0 (static, radial): 150 kN | Mass: 5 kg
CB25030 Inner diameter d: 250 mm | Outer diameter D: 330 mm | Roller pitch circle dp: 287.5 mm | Width B: 30 mm | r min: 2.5 mm | Shoulder ds max: 269 mm | Housing Dh min: 306 mm | C (dynamic, radial): 126 kN | C0 (static, radial): 244 kN | Mass: 8.1 kg
CB25040 Inner diameter d: 250 mm | Outer diameter D: 355 mm | Roller pitch circle dp: 300.7 mm | Width B: 40 mm | r min: 2.5 mm | Shoulder ds max: 275 mm | Housing Dh min: 326 mm | C (dynamic, radial): 195 kN | C0 (static, radial): 348 kN | Mass: 14.8 kg
CB30025 Inner diameter d: 300 mm | Outer diameter D: 360 mm | Roller pitch circle dp: 328 mm | Width B: 25 mm | r min: 2.5 mm | Shoulder ds max: 315 mm | Housing Dh min: 340 mm | C (dynamic, radial): 76.3 kN | C0 (static, radial): 178 kN | Mass: 5.9 kg
CB30035 Inner diameter d: 300 mm | Outer diameter D: 395 mm | Roller pitch circle dp: 345 mm | Width B: 35 mm | r min: 2.5 mm | Shoulder ds max: 322 mm | Housing Dh min: 368 mm | C (dynamic, radial): 183 kN | C0 (static, radial): 367 kN | Mass: 13.4 kg
CB30040 Inner diameter d: 300 mm | Outer diameter D: 405 mm | Roller pitch circle dp: 351.6 mm | Width B: 40 mm | r min: 2.5 mm | Shoulder ds max: 326 mm | Housing Dh min: 377 mm | C (dynamic, radial): 212 kN | C0 (static, radial): 409 kN | Mass: 17.2 kg
CB35020 Inner diameter d: 350 mm | Outer diameter D: 400 mm | Roller pitch circle dp: 373.4 mm | Width B: 20 mm | r min: 2.5 mm | Shoulder ds max: 363 mm | Housing Dh min: 383 mm | C (dynamic, radial): 54.1 kN | C0 (static, radial): 143 kN | Mass: 3.9 kg
CB40035 Inner diameter d: 400 mm | Outer diameter D: 480 mm | Roller pitch circle dp: 440.3 mm | Width B: 35 mm | r min: 2.5 mm | Shoulder ds max: 422 mm | Housing Dh min: 459 mm | C (dynamic, radial): 156 kN | C0 (static, radial): 370 kN | Mass: 14.5 kg
CB40040 Inner diameter d: 400 mm | Outer diameter D: 510 mm | Roller pitch circle dp: 453.4 mm | Width B: 40 mm | r min: 2.5 mm | Shoulder ds max: 428 mm | Housing Dh min: 479 mm | C (dynamic, radial): 241 kN | C0 (static, radial): 531 kN | Mass: 23.5 kg
CB45025 Inner diameter d: 450 mm | Outer diameter D: 500 mm | Roller pitch circle dp: 474 mm | Width B: 25 mm | r min: 1 mm | Shoulder ds max: 464 mm | Housing Dh min: 484 mm | C (dynamic, radial): 61.7 kN | C0 (static, radial): 182 kN | Mass: 6.6 kg
CB50025 Inner diameter d: 500 mm | Outer diameter D: 550 mm | Roller pitch circle dp: 524.2 mm | Width B: 25 mm | r min: 1 mm | Shoulder ds max: 514 mm | Housing Dh min: 534 mm | C (dynamic, radial): 65.5 kN | C0 (static, radial): 201 kN | Mass: 7.3 kg
CB50040 Inner diameter d: 500 mm | Outer diameter D: 600 mm | Roller pitch circle dp: 548.8 mm | Width B: 40 mm | r min: 2.5 mm | Shoulder ds max: 526 mm | Housing Dh min: 572 mm | C (dynamic, radial): 239 kN | C0 (static, radial): 607 kN | Mass: 26 kg
CB50050 Inner diameter d: 500 mm | Outer diameter D: 625 mm | Roller pitch circle dp: 561.6 mm | Width B: 50 mm | r min: 2.5 mm | Shoulder ds max: 536 mm | Housing Dh min: 587 mm | C (dynamic, radial): 267 kN | C0 (static, radial): 653 kN | Mass: 41.7 kg
CB60040 Inner diameter d: 600 mm | Outer diameter D: 700 mm | Roller pitch circle dp: 650 mm | Width B: 40 mm | r min: 3 mm | Shoulder ds max: 627 mm | Housing Dh min: 673 mm | C (dynamic, radial): 264 kN | C0 (static, radial): 721 kN | Mass: 29 kg
CB70045 Inner diameter d: 700 mm | Outer diameter D: 815 mm | Roller pitch circle dp: 753.5 mm | Width B: 45 mm | r min: 3 mm | Shoulder ds max: 731 mm | Housing Dh min: 777 mm | C (dynamic, radial): 281 kN | C0 (static, radial): 836 kN | Mass: 46 kg
CB80070 Inner diameter d: 800 mm | Outer diameter D: 950 mm | Roller pitch circle dp: 868.1 mm | Width B: 70 mm | r min: 4 mm | Shoulder ds max: 836 mm | Housing Dh min: 900 mm | C (dynamic, radial): 468 kN | C0 (static, radial): 1330 kN | Mass: 105 kg
CB90070 Inner diameter d: 900 mm | Outer diameter D: 1050 mm | Roller pitch circle dp: 969 mm | Width B: 70 mm | r min: 4 mm | Shoulder ds max: 937 mm | Housing Dh min: 1001 mm | C (dynamic, radial): 494 kN | C0 (static, radial): 1490 kN | Mass: 120 kg
