WON ST Crossed Roller Bearing CH Series, High-Rigidity Integral Type with Mounting Holes

WON ST Crossed Roller Bearing CH Series, High-Rigidity Integral Type with Mounting Holes

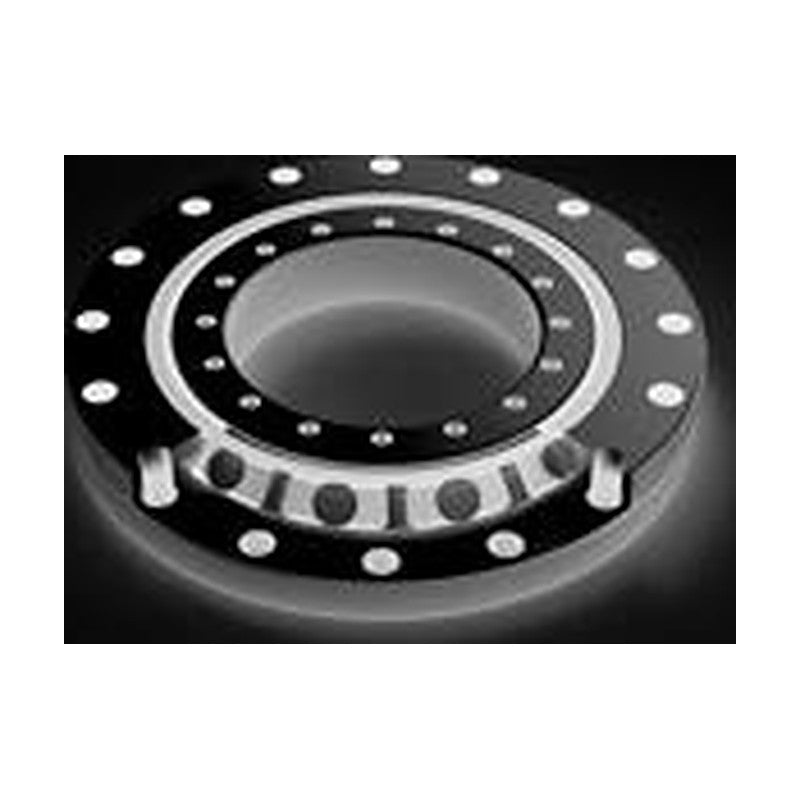

High-rigidity crossed roller bearing with integral inner and outer rings and mounting holes in both rings, giving small installation error for applications where the inner and outer rings rotate together or individually.

Key features

  • Integral inner and outer rings for minimal installation error
  • Mounting holes in both rings, no housing or retainer plate needed
  • Bears radial, axial and moment loads simultaneously
  • Spacer retainer prevents roller collision, friction and skewing

Specifications

Structure Integral inner and outer rings
Seal options No seal / UU two-side / U or UT one-side
Precision classes Moderate / H6 High / P4 Super / P2 Ultra
CH42 Inner diameter d: 20 mm | Outer diameter D: 70 mm | Roller pitch circle dp: 41.5 mm | Width B: 12 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 37 mm | Housing Dh min: 47 mm | C (dynamic, radial): 7.35 kN | C0 (static, radial): 8.35 kN | Inner ring holes: 6-M3 penetrated on PCD 28 mm | Outer ring holes: 6-ø3.4 penetrated, ø6.5 counterbore depth 3.3 on PCD 57 mm | Mass: 0.29 kg
CH66 Inner diameter d: 35 mm | Outer diameter D: 95 mm | Roller pitch circle dp: 66 mm | Width B: 15 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 59 mm | Housing Dh min: 74 mm | C (dynamic, radial): 17.5 kN | C0 (static, radial): 22.3 kN | Inner ring holes: 8-M4 penetrated on PCD 45 mm | Outer ring holes: 8-ø4.5 penetrated, ø8 counterbore depth 4.4 on PCD 83 mm | Mass: 0.62 kg
CH85 Inner diameter d: 55 mm | Outer diameter D: 120 mm | Roller pitch circle dp: 85 mm | Width B: 15 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 79 mm | Housing Dh min: 93 mm | C (dynamic, radial): 20.3 kN | C0 (static, radial): 29.5 kN | Inner ring holes: 8-M5 penetrated on PCD 65 mm | Outer ring holes: 8-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 105 mm | Mass: 1 kg
CH124 Inner diameter d: 80 mm | Outer diameter D: 165 mm | Roller pitch circle dp: 124 mm | Width B: 22 mm | Oil inlet d1: 3.1 mm | r min: 1 mm | Shoulder ds max: 114 mm | Housing Dh min: 134 mm | C (dynamic, radial): 33.1 kN | C0 (static, radial): 50.9 kN | Inner ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 97 mm | Outer ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 148 mm | Mass: 2.6 kg
CH124X Inner diameter d: 80 mm | Outer diameter D: 165 mm | Roller pitch circle dp: 124 mm | Width B: 22 mm | Oil inlet d1: 3.1 mm | r min: 1 mm | Shoulder ds max: 114 mm | Housing Dh min: 134 mm | C (dynamic, radial): 33.1 kN | C0 (static, radial): 50.9 kN | Inner ring holes: 10-M5 penetrated on PCD 97 mm | Outer ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 148 mm | Mass: 2.6 kg
CH148 Inner diameter d: 90 mm | Outer diameter D: 210 mm | Roller pitch circle dp: 147.5 mm | Width B: 25 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 133 mm | Housing Dh min: 162 mm | C (dynamic, radial): 49.1 kN | C0 (static, radial): 76.8 kN | Inner ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 112 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 187 mm | Mass: 4.9 kg
CH148X Inner diameter d: 90 mm | Outer diameter D: 210 mm | Roller pitch circle dp: 147.5 mm | Width B: 25 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 133 mm | Housing Dh min: 162 mm | C (dynamic, radial): 49.1 kN | C0 (static, radial): 76.8 kN | Inner ring holes: 12-M8 penetrated on PCD 112 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 187 mm | Mass: 4.9 kg
CH178 Inner diameter d: 115 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 178 mm | Width B: 28 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 161 mm | Housing Dh min: 195 mm | C (dynamic, radial): 80.3 kN | C0 (static, radial): 135 kN | Inner ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 139 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 217 mm | Mass: 6.8 kg
CH178X Inner diameter d: 115 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 178 mm | Width B: 28 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 161 mm | Housing Dh min: 195 mm | C (dynamic, radial): 80.3 kN | C0 (static, radial): 135 kN | Inner ring holes: 12-M8 penetrated on PCD 139 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 217 mm | Mass: 6.8 kg
CH228 Inner diameter d: 160 mm | Outer diameter D: 295 mm | Roller pitch circle dp: 227.5 mm | Width B: 35 mm | Oil inlet d1: 6 mm | r min: 2 mm | Shoulder ds max: 208 mm | Housing Dh min: 246 mm | C (dynamic, radial): 104 kN | C0 (static, radial): 173 kN | Inner ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 184 mm | Outer ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 270 mm | Mass: 11.4 kg
CH228X Inner diameter d: 160 mm | Outer diameter D: 295 mm | Roller pitch circle dp: 227.5 mm | Width B: 35 mm | Oil inlet d1: 6 mm | r min: 2 mm | Shoulder ds max: 208 mm | Housing Dh min: 246 mm | C (dynamic, radial): 104 kN | C0 (static, radial): 173 kN | Inner ring holes: 12-M10 penetrated on PCD 184 mm | Outer ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 270 mm | Mass: 11.4 kg
CH297 Inner diameter d: 210 mm | Outer diameter D: 380 mm | Roller pitch circle dp: 297.3 mm | Width B: 40 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 272 mm | Housing Dh min: 320 mm | C (dynamic, radial): 156 kN | C0 (static, radial): 281 kN | Inner ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 240 mm | Outer ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 350 mm | Mass: 21.3 kg
CH297X Inner diameter d: 210 mm | Outer diameter D: 380 mm | Roller pitch circle dp: 297.3 mm | Width B: 40 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 272 mm | Housing Dh min: 320 mm | C (dynamic, radial): 156 kN | C0 (static, radial): 281 kN | Inner ring holes: 16-M12 penetrated on PCD 240 mm | Outer ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 350 mm | Mass: 21.3 kg
CH445 Inner diameter d: 350 mm | Outer diameter D: 540 mm | Roller pitch circle dp: 445.4 mm | Width B: 45 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 417 mm | Housing Dh min: 473 mm | C (dynamic, radial): 222 kN | C0 (static, radial): 473 kN | Inner ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 385 mm | Outer ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 505 mm | Mass: 35.4 kg
CH445X Inner diameter d: 350 mm | Outer diameter D: 540 mm | Roller pitch circle dp: 445.4 mm | Width B: 45 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 417 mm | Housing Dh min: 473 mm | C (dynamic, radial): 222 kN | C0 (static, radial): 473 kN | Inner ring holes: 24-M12 penetrated on PCD 385 mm | Outer ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 505 mm | Mass: 35.4 kg
Crossed Roller BearingsWON ST
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Crossed Roller Bearing CH Series, High-Rigidity Integral Type with Mounting Holes

Brand WON ST·Crossed Roller Bearings

Available part numbers (15)

CH42, CH66, CH85, CH124, CH124X, CH148, CH148X, CH178, CH178X, CH228 + 5 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CH42Inner diameter d: 20 mm | Outer diameter D: 70 mm | Roller pitch circle dp: 41.5 mm | Width B: 12 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 37 mm | Housing Dh min: 47 mm | C (dynamic, radial): 7.35 kN | C0 (static, radial): 8.35 kN | Inner ring holes: 6-M3 penetrated on PCD 28 mm | Outer ring holes: 6-ø3.4 penetrated, ø6.5 counterbore depth 3.3 on PCD 57 mm | Mass: 0.29 kg
CH66Inner diameter d: 35 mm | Outer diameter D: 95 mm | Roller pitch circle dp: 66 mm | Width B: 15 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 59 mm | Housing Dh min: 74 mm | C (dynamic, radial): 17.5 kN | C0 (static, radial): 22.3 kN | Inner ring holes: 8-M4 penetrated on PCD 45 mm | Outer ring holes: 8-ø4.5 penetrated, ø8 counterbore depth 4.4 on PCD 83 mm | Mass: 0.62 kg
CH85Inner diameter d: 55 mm | Outer diameter D: 120 mm | Roller pitch circle dp: 85 mm | Width B: 15 mm | Oil inlet d1: 3.1 mm | r min: 0.6 mm | Shoulder ds max: 79 mm | Housing Dh min: 93 mm | C (dynamic, radial): 20.3 kN | C0 (static, radial): 29.5 kN | Inner ring holes: 8-M5 penetrated on PCD 65 mm | Outer ring holes: 8-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 105 mm | Mass: 1 kg
CH124Inner diameter d: 80 mm | Outer diameter D: 165 mm | Roller pitch circle dp: 124 mm | Width B: 22 mm | Oil inlet d1: 3.1 mm | r min: 1 mm | Shoulder ds max: 114 mm | Housing Dh min: 134 mm | C (dynamic, radial): 33.1 kN | C0 (static, radial): 50.9 kN | Inner ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 97 mm | Outer ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 148 mm | Mass: 2.6 kg
CH124XInner diameter d: 80 mm | Outer diameter D: 165 mm | Roller pitch circle dp: 124 mm | Width B: 22 mm | Oil inlet d1: 3.1 mm | r min: 1 mm | Shoulder ds max: 114 mm | Housing Dh min: 134 mm | C (dynamic, radial): 33.1 kN | C0 (static, radial): 50.9 kN | Inner ring holes: 10-M5 penetrated on PCD 97 mm | Outer ring holes: 10-ø5.5 penetrated, ø9.5 counterbore depth 5.4 on PCD 148 mm | Mass: 2.6 kg
CH148Inner diameter d: 90 mm | Outer diameter D: 210 mm | Roller pitch circle dp: 147.5 mm | Width B: 25 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 133 mm | Housing Dh min: 162 mm | C (dynamic, radial): 49.1 kN | C0 (static, radial): 76.8 kN | Inner ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 112 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 187 mm | Mass: 4.9 kg
CH148XInner diameter d: 90 mm | Outer diameter D: 210 mm | Roller pitch circle dp: 147.5 mm | Width B: 25 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 133 mm | Housing Dh min: 162 mm | C (dynamic, radial): 49.1 kN | C0 (static, radial): 76.8 kN | Inner ring holes: 12-M8 penetrated on PCD 112 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 187 mm | Mass: 4.9 kg
CH178Inner diameter d: 115 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 178 mm | Width B: 28 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 161 mm | Housing Dh min: 195 mm | C (dynamic, radial): 80.3 kN | C0 (static, radial): 135 kN | Inner ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 139 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 217 mm | Mass: 6.8 kg
CH178XInner diameter d: 115 mm | Outer diameter D: 240 mm | Roller pitch circle dp: 178 mm | Width B: 28 mm | Oil inlet d1: 3.1 mm | r min: 1.5 mm | Shoulder ds max: 161 mm | Housing Dh min: 195 mm | C (dynamic, radial): 80.3 kN | C0 (static, radial): 135 kN | Inner ring holes: 12-M8 penetrated on PCD 139 mm | Outer ring holes: 12-ø9 penetrated, ø14 counterbore depth 8.6 on PCD 217 mm | Mass: 6.8 kg
CH228Inner diameter d: 160 mm | Outer diameter D: 295 mm | Roller pitch circle dp: 227.5 mm | Width B: 35 mm | Oil inlet d1: 6 mm | r min: 2 mm | Shoulder ds max: 208 mm | Housing Dh min: 246 mm | C (dynamic, radial): 104 kN | C0 (static, radial): 173 kN | Inner ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 184 mm | Outer ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 270 mm | Mass: 11.4 kg
CH228XInner diameter d: 160 mm | Outer diameter D: 295 mm | Roller pitch circle dp: 227.5 mm | Width B: 35 mm | Oil inlet d1: 6 mm | r min: 2 mm | Shoulder ds max: 208 mm | Housing Dh min: 246 mm | C (dynamic, radial): 104 kN | C0 (static, radial): 173 kN | Inner ring holes: 12-M10 penetrated on PCD 184 mm | Outer ring holes: 12-ø11 penetrated, ø17.5 counterbore depth 10.8 on PCD 270 mm | Mass: 11.4 kg
CH297Inner diameter d: 210 mm | Outer diameter D: 380 mm | Roller pitch circle dp: 297.3 mm | Width B: 40 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 272 mm | Housing Dh min: 320 mm | C (dynamic, radial): 156 kN | C0 (static, radial): 281 kN | Inner ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 240 mm | Outer ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 350 mm | Mass: 21.3 kg
CH297XInner diameter d: 210 mm | Outer diameter D: 380 mm | Roller pitch circle dp: 297.3 mm | Width B: 40 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 272 mm | Housing Dh min: 320 mm | C (dynamic, radial): 156 kN | C0 (static, radial): 281 kN | Inner ring holes: 16-M12 penetrated on PCD 240 mm | Outer ring holes: 16-ø14 penetrated, ø20 counterbore depth 13 on PCD 350 mm | Mass: 21.3 kg
CH445Inner diameter d: 350 mm | Outer diameter D: 540 mm | Roller pitch circle dp: 445.4 mm | Width B: 45 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 417 mm | Housing Dh min: 473 mm | C (dynamic, radial): 222 kN | C0 (static, radial): 473 kN | Inner ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 385 mm | Outer ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 505 mm | Mass: 35.4 kg
CH445XInner diameter d: 350 mm | Outer diameter D: 540 mm | Roller pitch circle dp: 445.4 mm | Width B: 45 mm | Oil inlet d1: 6 mm | r min: 2.5 mm | Shoulder ds max: 417 mm | Housing Dh min: 473 mm | C (dynamic, radial): 222 kN | C0 (static, radial): 473 kN | Inner ring holes: 24-M12 penetrated on PCD 385 mm | Outer ring holes: 24-ø14 penetrated, ø20 counterbore depth 13 on PCD 505 mm | Mass: 35.4 kg
