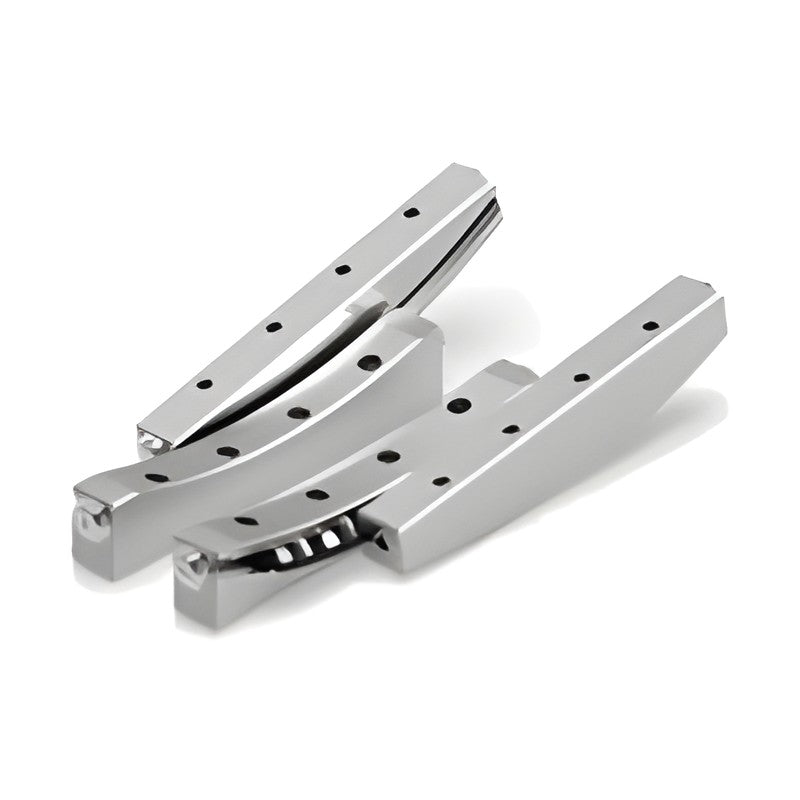

WON ST Curved Cross Roller Guide Way CRGF Series, Flat Mounting Type

WON ST Curved Cross Roller Guide Way CRGF Series, Flat Mounting Type

Curved cross roller guide way with precisely ground curved V-grooves and a flat installation surface, reducing machining of the table and base for precise curved motion.

Key features

  • Flat installation surface simplifies table and base machining
  • Precisely ground curved V-groove with accurate center of rotation
  • Non-recirculating, low and stable friction for fine curved motion
  • Low noise

Specifications

Load rating basis Per set
CRGF2050-87 Rotation range: ±6° | Roller diameter D: 2 mm | No. of rollers Z: 10 | L: 50 mm | R: 87 mm | H1: 89.5 mm | A: 15 mm | B: 7.25 mm | C (dynamic): 1130 N | C0 (static): 2420 N | Allowable load F: 810 N | Mass: 67 g/set
CRGF3070-110 Rotation range: ±10° | Roller diameter D: 3 mm | No. of rollers Z: 10 | L: 70 mm | R: 70 mm | H1: 114.5 mm | A: 18 mm | B: 8.5 mm | C (dynamic): 2440 N | C0 (static): 5620 N | Allowable load F: 1870 N | Mass: 189 g/set
Curved Cross Roller GuidesWON ST
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Curved Cross Roller Guide Way CRGF Series, Flat Mounting Type

Brand WON ST·Curved Cross Roller Guides

Available part numbers (2)

CRGF2050-87, CRGF3070-110

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRGF2050-87Rotation range: ±6° | Roller diameter D: 2 mm | No. of rollers Z: 10 | L: 50 mm | R: 87 mm | H1: 89.5 mm | A: 15 mm | B: 7.25 mm | C (dynamic): 1130 N | C0 (static): 2420 N | Allowable load F: 810 N | Mass: 67 g/set
CRGF3070-110Rotation range: ±10° | Roller diameter D: 3 mm | No. of rollers Z: 10 | L: 70 mm | R: 70 mm | H1: 114.5 mm | A: 18 mm | B: 8.5 mm | C (dynamic): 2440 N | C0 (static): 5620 N | Allowable load F: 1870 N | Mass: 189 g/set
