WON ST Flange Linear Ball Bushing LMF-L / LMK-L Series, Long Type

WON ST Flange Linear Ball Bushing LMF-L / LMK-L Series, Long Type

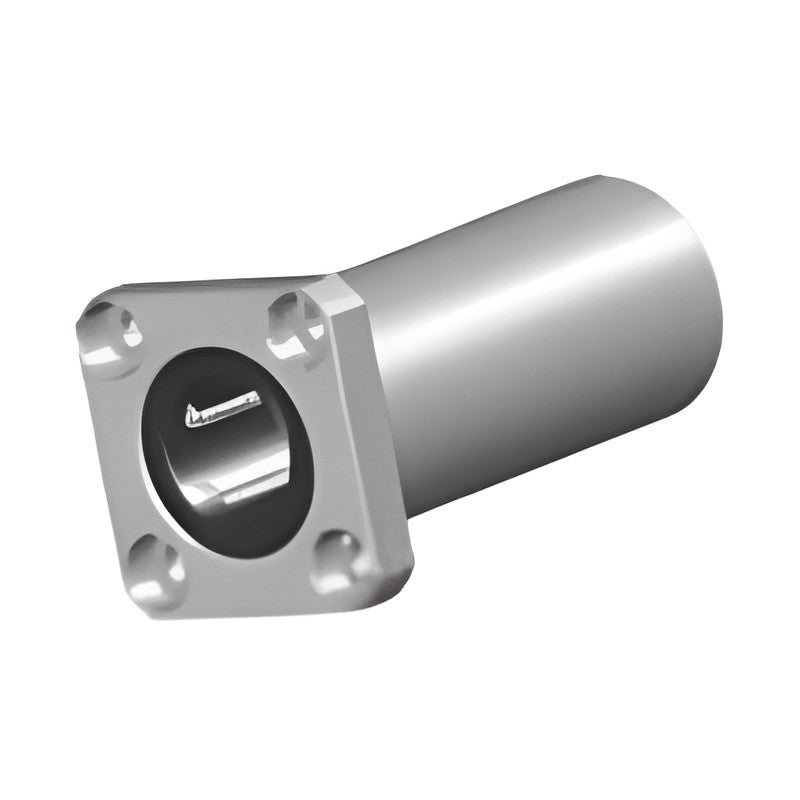

Long-type flange linear ball bushing with round (LMF..L) or square (LMK..L) flange and two retainers, suited to applications with moment load.

Key features

  • Two retainers in one outer sleeve for moment loads
  • Integral flange, mounted with the flange only
  • Plating or Raydent surface treatment available

Specifications

Seal Seals on both sides (UU)
Length Long type
LMF6LUU Flange: Round | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 35 mm | Flange diameter D1: 28 mm | Flange thickness H: 5 mm | Bolt PCD: 20 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 323 N | C0 (static): 529 N | Mass: 31 g
LMK6LUU Flange: Square | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 35 mm | Flange square K: 22 mm | Flange thickness H: 5 mm | Bolt PCD: 20 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 323 N | C0 (static): 529 N | Mass: 31 g
LMF8LUU Flange: Round | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 45 mm | Flange diameter D1: 32 mm | Flange thickness H: 5 mm | Bolt PCD: 24 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 431 N | C0 (static): 784 N | Mass: 51 g
LMK8LUU Flange: Square | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 45 mm | Flange square K: 25 mm | Flange thickness H: 5 mm | Bolt PCD: 24 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 431 N | C0 (static): 784 N | Mass: 51 g
LMF10LUU Flange: Round | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 55 mm | Flange diameter D1: 40 mm | Flange thickness H: 6 mm | Bolt PCD: 29 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N | Mass: 98 g
LMK10LUU Flange: Square | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 55 mm | Flange square K: 30 mm | Flange thickness H: 6 mm | Bolt PCD: 29 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N | Mass: 98 g
LMF12LUU Flange: Round | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 57 mm | Flange diameter D1: 42 mm | Flange thickness H: 6 mm | Bolt PCD: 32 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 110 g
LMK12LUU Flange: Square | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 57 mm | Flange square K: 32 mm | Flange thickness H: 6 mm | Bolt PCD: 32 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 110 g
LMF13LUU Flange: Round | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 61 mm | Flange diameter D1: 43 mm | Flange thickness H: 6 mm | Bolt PCD: 33 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 130 g
LMK13LUU Flange: Square | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 61 mm | Flange square K: 34 mm | Flange thickness H: 6 mm | Bolt PCD: 33 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 130 g
LMF16LUU Flange: Round | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 70 mm | Flange diameter D1: 48 mm | Flange thickness H: 6 mm | Bolt PCD: 38 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N | Mass: 190 g
LMK16LUU Flange: Square | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 70 mm | Flange square K: 37 mm | Flange thickness H: 6 mm | Bolt PCD: 38 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N | Mass: 190 g
LMF20LUU Flange: Round | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Flange diameter D1: 54 mm | Flange thickness H: 8 mm | Bolt PCD: 43 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N | Mass: 260 g
LMK20LUU Flange: Square | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Flange square K: 42 mm | Flange thickness H: 8 mm | Bolt PCD: 43 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N | Mass: 260 g
LMF25LUU Flange: Round | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Flange diameter D1: 62 mm | Flange thickness H: 8 mm | Bolt PCD: 51 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N | Mass: 540 g
LMK25LUU Flange: Square | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Flange square K: 50 mm | Flange thickness H: 8 mm | Bolt PCD: 51 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N | Mass: 540 g
LMF30LUU Flange: Round | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 123 mm | Flange diameter D1: 74 mm | Flange thickness H: 10 mm | Bolt PCD: 60 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N | Mass: 680 g
LMK30LUU Flange: Square | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 123 mm | Flange square K: 58 mm | Flange thickness H: 10 mm | Bolt PCD: 60 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N | Mass: 680 g
LMF35LUU Flange: Round | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 135 mm | Flange diameter D1: 82 mm | Flange thickness H: 10 mm | Bolt PCD: 67 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N | Mass: 1020 g
LMK35LUU Flange: Square | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 135 mm | Flange square K: 64 mm | Flange thickness H: 10 mm | Bolt PCD: 67 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N | Mass: 1020 g
LMF40LUU Flange: Round | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 154 mm | Flange diameter D1: 96 mm | Flange thickness H: 13 mm | Bolt PCD: 78 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1570 g
LMK40LUU Flange: Square | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 154 mm | Flange square K: 75 mm | Flange thickness H: 13 mm | Bolt PCD: 78 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1570 g
LMF50LUU Flange: Round | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 192 mm | Flange diameter D1: 116 mm | Flange thickness H: 13 mm | Bolt PCD: 98 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 3600 g
LMK50LUU Flange: Square | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 192 mm | Flange square K: 92 mm | Flange thickness H: 13 mm | Bolt PCD: 98 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 3600 g
LMF60LUU Flange: Round | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 211 mm | Flange diameter D1: 134 mm | Flange thickness H: 18 mm | Bolt PCD: 112 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 4500 g
LMK60LUU Flange: Square | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 211 mm | Flange square K: 106 mm | Flange thickness H: 18 mm | Bolt PCD: 112 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 4500 g
Linear BushingsWON ST
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Flange Linear Ball Bushing LMF-L / LMK-L Series, Long Type

Brand WON ST·Linear Bushings

Available part numbers (26)

LMF6LUU, LMK6LUU, LMF8LUU, LMK8LUU, LMF10LUU, LMK10LUU, LMF12LUU, LMK12LUU, LMF13LUU, LMK13LUU + 16 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LMF6LUUFlange: Round | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 35 mm | Flange diameter D1: 28 mm | Flange thickness H: 5 mm | Bolt PCD: 20 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 323 N | C0 (static): 529 N | Mass: 31 g
LMK6LUUFlange: Square | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 35 mm | Flange square K: 22 mm | Flange thickness H: 5 mm | Bolt PCD: 20 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 323 N | C0 (static): 529 N | Mass: 31 g
LMF8LUUFlange: Round | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 45 mm | Flange diameter D1: 32 mm | Flange thickness H: 5 mm | Bolt PCD: 24 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 431 N | C0 (static): 784 N | Mass: 51 g
LMK8LUUFlange: Square | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 45 mm | Flange square K: 25 mm | Flange thickness H: 5 mm | Bolt PCD: 24 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 431 N | C0 (static): 784 N | Mass: 51 g
LMF10LUUFlange: Round | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 55 mm | Flange diameter D1: 40 mm | Flange thickness H: 6 mm | Bolt PCD: 29 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N | Mass: 98 g
LMK10LUUFlange: Square | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 55 mm | Flange square K: 30 mm | Flange thickness H: 6 mm | Bolt PCD: 29 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N | Mass: 98 g
LMF12LUUFlange: Round | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 57 mm | Flange diameter D1: 42 mm | Flange thickness H: 6 mm | Bolt PCD: 32 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 110 g
LMK12LUUFlange: Square | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 57 mm | Flange square K: 32 mm | Flange thickness H: 6 mm | Bolt PCD: 32 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 110 g
LMF13LUUFlange: Round | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 61 mm | Flange diameter D1: 43 mm | Flange thickness H: 6 mm | Bolt PCD: 33 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 130 g
LMK13LUUFlange: Square | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 61 mm | Flange square K: 34 mm | Flange thickness H: 6 mm | Bolt PCD: 33 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 130 g
LMF16LUUFlange: Round | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 70 mm | Flange diameter D1: 48 mm | Flange thickness H: 6 mm | Bolt PCD: 38 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N | Mass: 190 g
LMK16LUUFlange: Square | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 70 mm | Flange square K: 37 mm | Flange thickness H: 6 mm | Bolt PCD: 38 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N | Mass: 190 g
LMF20LUUFlange: Round | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Flange diameter D1: 54 mm | Flange thickness H: 8 mm | Bolt PCD: 43 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N | Mass: 260 g
LMK20LUUFlange: Square | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Flange square K: 42 mm | Flange thickness H: 8 mm | Bolt PCD: 43 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N | Mass: 260 g
LMF25LUUFlange: Round | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Flange diameter D1: 62 mm | Flange thickness H: 8 mm | Bolt PCD: 51 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N | Mass: 540 g
LMK25LUUFlange: Square | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Flange square K: 50 mm | Flange thickness H: 8 mm | Bolt PCD: 51 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N | Mass: 540 g
LMF30LUUFlange: Round | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 123 mm | Flange diameter D1: 74 mm | Flange thickness H: 10 mm | Bolt PCD: 60 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N | Mass: 680 g
LMK30LUUFlange: Square | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 123 mm | Flange square K: 58 mm | Flange thickness H: 10 mm | Bolt PCD: 60 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N | Mass: 680 g
LMF35LUUFlange: Round | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 135 mm | Flange diameter D1: 82 mm | Flange thickness H: 10 mm | Bolt PCD: 67 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N | Mass: 1020 g
LMK35LUUFlange: Square | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 135 mm | Flange square K: 64 mm | Flange thickness H: 10 mm | Bolt PCD: 67 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N | Mass: 1020 g
LMF40LUUFlange: Round | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 154 mm | Flange diameter D1: 96 mm | Flange thickness H: 13 mm | Bolt PCD: 78 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1570 g
LMK40LUUFlange: Square | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 154 mm | Flange square K: 75 mm | Flange thickness H: 13 mm | Bolt PCD: 78 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1570 g
LMF50LUUFlange: Round | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 192 mm | Flange diameter D1: 116 mm | Flange thickness H: 13 mm | Bolt PCD: 98 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 3600 g
LMK50LUUFlange: Square | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 192 mm | Flange square K: 92 mm | Flange thickness H: 13 mm | Bolt PCD: 98 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 3600 g
LMF60LUUFlange: Round | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 211 mm | Flange diameter D1: 134 mm | Flange thickness H: 18 mm | Bolt PCD: 112 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 4500 g
LMK60LUUFlange: Square | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 211 mm | Flange square K: 106 mm | Flange thickness H: 18 mm | Bolt PCD: 112 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 4500 g
