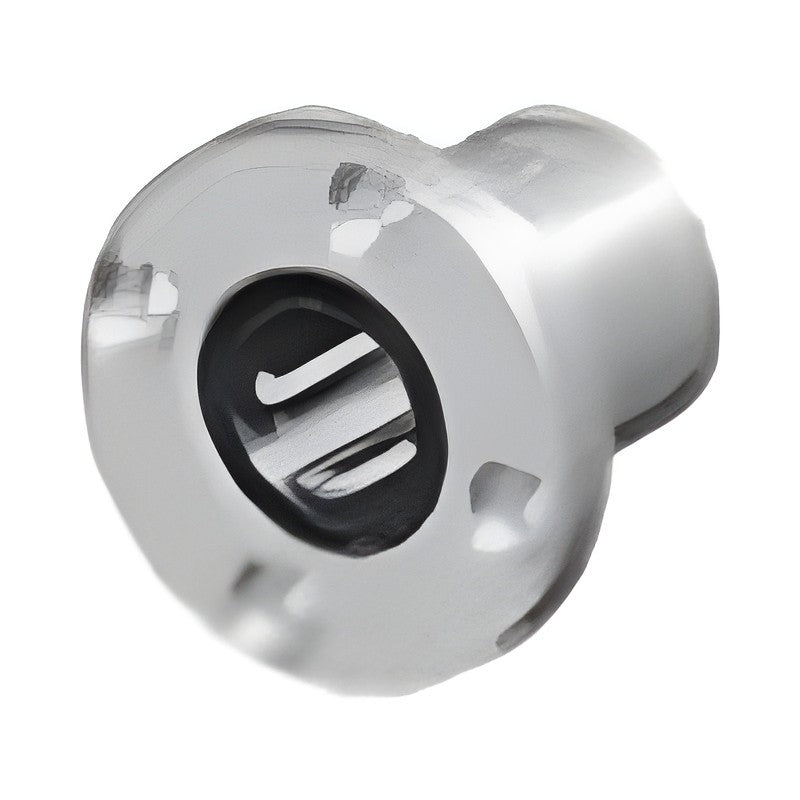

WON ST Flange Linear Ball Bushing LMF / LMK / LMH Series (Round, Square, Oval Flange)

WON ST Flange Linear Ball Bushing LMF / LMK / LMH Series (Round, Square, Oval Flange)

Linear ball bushing with integral round (LMF), square (LMK) or oval (LMH) flange for direct mounting without a housing.

Key features

  • Integral flange and outer sleeve, mounted with the flange only
  • Square and oval flanges give a lower center height for compact designs
  • Integral retainer guiding 4 to 6 ball rows for stable running accuracy
  • Plating or Raydent surface treatment available

Specifications

Seal Seals on both sides (UU)
LMF6UU Flange: Round | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Flange diameter D1: 28 mm | Bolt PCD: 20 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Mass: 24 g
LMK6UU Flange: Square | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Flange square K: 22 mm | Bolt PCD: 20 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Mass: 24 g
LMF8UU Flange: Round | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Flange diameter D1: 32 mm | Bolt PCD: 24 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N | Mass: 37 g
LMK8UU Flange: Square | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Flange square K: 25 mm | Bolt PCD: 24 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N | Mass: 37 g
LMF10UU Flange: Round | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange diameter D1: 40 mm | Bolt PCD: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMK10UU Flange: Square | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange square K: 30 mm | Bolt PCD: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMH10UU Flange: Oval | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange D1: 40 mm | Flange width W: 25 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMF12UU Flange: Round | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange diameter D1: 42 mm | Bolt PCD: 32 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMK12UU Flange: Square | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange square K: 32 mm | Bolt PCD: 32 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMH12UU Flange: Oval | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange D1: 42 mm | Flange width W: 27 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMF13UU Flange: Round | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange diameter D1: 43 mm | Bolt PCD: 33 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMK13UU Flange: Square | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange square K: 34 mm | Bolt PCD: 33 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMH13UU Flange: Oval | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange D1: 43 mm | Flange width W: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMF16UU Flange: Round | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange diameter D1: 48 mm | Bolt PCD: 38 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMK16UU Flange: Square | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange square K: 37 mm | Bolt PCD: 38 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMH16UU Flange: Oval | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange D1: 48 mm | Flange width W: 34 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMF20UU Flange: Round | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange diameter D1: 54 mm | Bolt PCD: 43 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMK20UU Flange: Square | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange square K: 42 mm | Bolt PCD: 43 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMH20UU Flange: Oval | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange D1: 54 mm | Flange width W: 38 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMF25UU Flange: Round | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange diameter D1: 62 mm | Bolt PCD: 51 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMK25UU Flange: Square | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange square K: 50 mm | Bolt PCD: 51 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMH25UU Flange: Oval | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange D1: 62 mm | Flange width W: 46 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMF30UU Flange: Round | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange diameter D1: 74 mm | Bolt PCD: 60 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMK30UU Flange: Square | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange square K: 58 mm | Bolt PCD: 60 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMH30UU Flange: Oval | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange D1: 74 mm | Flange width W: 51 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMF35UU Flange: Round | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Flange diameter D1: 82 mm | Bolt PCD: 67 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1670 N | C0 (static): 3140 N | Mass: 650 g
LMK35UU Flange: Square | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Flange square K: 64 mm | Bolt PCD: 67 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1670 N | C0 (static): 3140 N | Mass: 650 g
LMF40UU Flange: Round | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Flange diameter D1: 96 mm | Bolt PCD: 78 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N | Mass: 1060 g
LMK40UU Flange: Square | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Flange square K: 75 mm | Bolt PCD: 78 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N | Mass: 1060 g
LMF50UU Flange: Round | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Flange diameter D1: 116 mm | Bolt PCD: 98 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Mass: 2200 g
LMK50UU Flange: Square | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Flange square K: 92 mm | Bolt PCD: 98 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Mass: 2200 g
LMF60UU Flange: Round | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Flange diameter D1: 134 mm | Bolt PCD: 112 mm | Flange thickness H: 18 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N | Mass: 3000 g
LMK60UU Flange: Square | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Flange square K: 106 mm | Bolt PCD: 112 mm | Flange thickness H: 18 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N | Mass: 3000 g
Linear BushingsWON ST
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Flange Linear Ball Bushing LMF / LMK / LMH Series (Round, Square, Oval Flange)

Brand WON ST·Linear Bushings

Available part numbers (33)

LMF6UU, LMK6UU, LMF8UU, LMK8UU, LMF10UU, LMK10UU, LMH10UU, LMF12UU, LMK12UU, LMH12UU + 23 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LMF6UUFlange: Round | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Flange diameter D1: 28 mm | Bolt PCD: 20 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Mass: 24 g
LMK6UUFlange: Square | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Flange square K: 22 mm | Bolt PCD: 20 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Mass: 24 g
LMF8UUFlange: Round | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Flange diameter D1: 32 mm | Bolt PCD: 24 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N | Mass: 37 g
LMK8UUFlange: Square | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Flange square K: 25 mm | Bolt PCD: 24 mm | Flange thickness H: 5 mm | Bolt hole d1 x d2 x h: 3.5x6x3.1 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N | Mass: 37 g
LMF10UUFlange: Round | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange diameter D1: 40 mm | Bolt PCD: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMK10UUFlange: Square | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange square K: 30 mm | Bolt PCD: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMH10UUFlange: Oval | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Flange D1: 40 mm | Flange width W: 25 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Mass: 72 g
LMF12UUFlange: Round | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange diameter D1: 42 mm | Bolt PCD: 32 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMK12UUFlange: Square | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange square K: 32 mm | Bolt PCD: 32 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMH12UUFlange: Oval | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Flange D1: 42 mm | Flange width W: 27 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 76 g
LMF13UUFlange: Round | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange diameter D1: 43 mm | Bolt PCD: 33 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMK13UUFlange: Square | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange square K: 34 mm | Bolt PCD: 33 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMH13UUFlange: Oval | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Flange D1: 43 mm | Flange width W: 29 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Mass: 88 g
LMF16UUFlange: Round | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange diameter D1: 48 mm | Bolt PCD: 38 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMK16UUFlange: Square | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange square K: 37 mm | Bolt PCD: 38 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMH16UUFlange: Oval | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Flange D1: 48 mm | Flange width W: 34 mm | Flange thickness H: 6 mm | Bolt hole d1 x d2 x h: 4.5x7.5x4.1 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Mass: 120 g
LMF20UUFlange: Round | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange diameter D1: 54 mm | Bolt PCD: 43 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMK20UUFlange: Square | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange square K: 42 mm | Bolt PCD: 43 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMH20UUFlange: Oval | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Flange D1: 54 mm | Flange width W: 38 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Mass: 180 g
LMF25UUFlange: Round | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange diameter D1: 62 mm | Bolt PCD: 51 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMK25UUFlange: Square | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange square K: 50 mm | Bolt PCD: 51 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMH25UUFlange: Oval | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Flange D1: 62 mm | Flange width W: 46 mm | Flange thickness H: 8 mm | Bolt hole d1 x d2 x h: 5.5x9x5.1 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Mass: 340 g
LMF30UUFlange: Round | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange diameter D1: 74 mm | Bolt PCD: 60 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMK30UUFlange: Square | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange square K: 58 mm | Bolt PCD: 60 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMH30UUFlange: Oval | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Flange D1: 74 mm | Flange width W: 51 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Mass: 470 g
LMF35UUFlange: Round | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Flange diameter D1: 82 mm | Bolt PCD: 67 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1670 N | C0 (static): 3140 N | Mass: 650 g
LMK35UUFlange: Square | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Flange square K: 64 mm | Bolt PCD: 67 mm | Flange thickness H: 10 mm | Bolt hole d1 x d2 x h: 6.6x11x6.1 mm | Ball rows: 6 | C (dynamic): 1670 N | C0 (static): 3140 N | Mass: 650 g
LMF40UUFlange: Round | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Flange diameter D1: 96 mm | Bolt PCD: 78 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N | Mass: 1060 g
LMK40UUFlange: Square | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Flange square K: 75 mm | Bolt PCD: 78 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N | Mass: 1060 g
LMF50UUFlange: Round | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Flange diameter D1: 116 mm | Bolt PCD: 98 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Mass: 2200 g
LMK50UUFlange: Square | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Flange square K: 92 mm | Bolt PCD: 98 mm | Flange thickness H: 13 mm | Bolt hole d1 x d2 x h: 9x14x8.1 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Mass: 2200 g
LMF60UUFlange: Round | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Flange diameter D1: 134 mm | Bolt PCD: 112 mm | Flange thickness H: 18 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N | Mass: 3000 g
LMK60UUFlange: Square | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Flange square K: 106 mm | Bolt PCD: 112 mm | Flange thickness H: 18 mm | Bolt hole d1 x d2 x h: 11x17x11.1 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N | Mass: 3000 g
