WON ST Linear Ball Bushing LM-L / LME-L Series, Long Type

WON ST Linear Ball Bushing LM-L / LME-L Series, Long Type

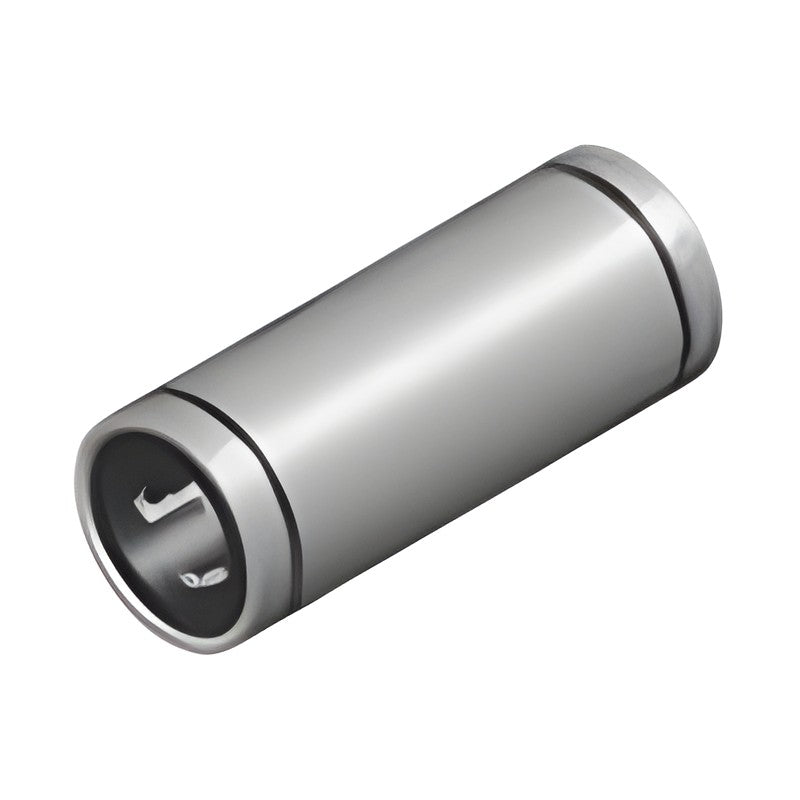

Long-type cylindrical linear ball bushing (standard LM..L and Europe LME..L) with two retainers in one outer sleeve, suited to moment loads.

Key features

  • Two retainers in one outer sleeve for moment loads
  • Outer sleeve of high carbon chromium bearing steel, ground after heat treatment
  • Integral retainer guiding 4 to 6 ball rows for stable running accuracy
  • Standardized dimensions for interchangeability
  • Plating or Raydent surface treatment available

Specifications

Seal Seals on both sides (UU)
Length Long type
LM6LUU Series: Standard | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 35 mm | Retaining ring groove pitch B: 27 mm | Groove width W: 1.1 mm | Groove diameter D1: 11.5 mm | Ball rows: 4 | C (dynamic): 323 N | C0 (static): 530 N | Mass: 16 g
LM8LUU Series: Standard | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 45 mm | Retaining ring groove pitch B: 35 mm | Groove width W: 1.1 mm | Groove diameter D1: 14.3 mm | Ball rows: 4 | C (dynamic): 431 N | C0 (static): 784 N | Mass: 31 g
LM10LUU Series: Standard | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 55 mm | Retaining ring groove pitch B: 44 mm | Groove width W: 1.3 mm | Groove diameter D1: 18 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N | Mass: 62 g
LM12LUU Series: Standard | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 57 mm | Retaining ring groove pitch B: 46 mm | Groove width W: 1.3 mm | Groove diameter D1: 20 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 80 g
LM13LUU Series: Standard | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 61 mm | Retaining ring groove pitch B: 46 mm | Groove width W: 1.3 mm | Groove diameter D1: 22 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 90 g
LM16LUU Series: Standard | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 70 mm | Retaining ring groove pitch B: 53 mm | Groove width W: 1.6 mm | Groove diameter D1: 27 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N | Mass: 145 g
LM20LUU Series: Standard | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Retaining ring groove pitch B: 61 mm | Groove width W: 1.6 mm | Groove diameter D1: 30.5 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N | Mass: 180 g
LM25LUU Series: Standard | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Retaining ring groove pitch B: 82 mm | Groove width W: 1.85 mm | Groove diameter D1: 38 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N | Mass: 440 g
LM30LUU Series: Standard | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 123 mm | Retaining ring groove pitch B: 89 mm | Groove width W: 1.85 mm | Groove diameter D1: 43 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N | Mass: 480 g
LM35LUU Series: Standard | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 135 mm | Retaining ring groove pitch B: 99 mm | Groove width W: 2.1 mm | Groove diameter D1: 49 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N | Mass: 795 g
LM40LUU Series: Standard | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 151 mm | Retaining ring groove pitch B: 121 mm | Groove width W: 2.1 mm | Groove diameter D1: 57 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1170 g
LM50LUU Series: Standard | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 192 mm | Retaining ring groove pitch B: 148 mm | Groove width W: 2.6 mm | Groove diameter D1: 76.5 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 3100 g
LM60LUU Series: Standard | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 209 mm | Retaining ring groove pitch B: 170 mm | Groove width W: 3.15 mm | Groove diameter D1: 86.5 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 3500 g
LME8LUU Series: Europe | Inside diameter dr: 8 mm | Outer diameter D: 16 mm | Length L: 46 mm | Retaining ring groove pitch B: 33 mm | Groove width W: 1.1 mm | Groove diameter D1: 15.2 mm | Ball rows: 4 | C (dynamic): 421 N | C0 (static): 804 N | Mass: 40 g
LME12LUU Series: Europe | Inside diameter dr: 12 mm | Outer diameter D: 22 mm | Length L: 61 mm | Retaining ring groove pitch B: 45.8 mm | Groove width W: 1.3 mm | Groove diameter D1: 21 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N | Mass: 80 g
LME16LUU Series: Europe | Inside diameter dr: 16 mm | Outer diameter D: 26 mm | Length L: 68 mm | Retaining ring groove pitch B: 49.8 mm | Groove width W: 1.3 mm | Groove diameter D1: 24.9 mm | Ball rows: 5 | C (dynamic): 921 N | C0 (static): 1780 N | Mass: 115 g
LME20LUU Series: Europe | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 80 mm | Retaining ring groove pitch B: 61 mm | Groove width W: 1.6 mm | Groove diameter D1: 30.5 mm | Ball rows: 5 | C (dynamic): 1370 N | C0 (static): 2740 N | Mass: 180 g
LME25LUU Series: Europe | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 112 mm | Retaining ring groove pitch B: 82 mm | Groove width W: 1.85 mm | Groove diameter D1: 38 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 3140 N | Mass: 430 g
LME30LUU Series: Europe | Inside diameter dr: 30 mm | Outer diameter D: 47 mm | Length L: 123 mm | Retaining ring groove pitch B: 104.2 mm | Groove width W: 1.85 mm | Groove diameter D1: 44.5 mm | Ball rows: 6 | C (dynamic): 2500 N | C0 (static): 5490 N | Mass: 615 g
LME40LUU Series: Europe | Inside diameter dr: 40 mm | Outer diameter D: 62 mm | Length L: 151 mm | Retaining ring groove pitch B: 121.2 mm | Groove width W: 2.15 mm | Groove diameter D1: 59 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N | Mass: 1400 g
LME50LUU Series: Europe | Inside diameter dr: 50 mm | Outer diameter D: 75 mm | Length L: 192 mm | Retaining ring groove pitch B: 155.2 mm | Groove width W: 2.65 mm | Groove diameter D1: 72 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N | Mass: 2320 g
LME60LUU Series: Europe | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 209 mm | Retaining ring groove pitch B: 170 mm | Groove width W: 3.15 mm | Groove diameter D1: 86.5 mm | Ball rows: 6 | C (dynamic): 7550 N | C0 (static): 20000 N | Mass: 3900 g
