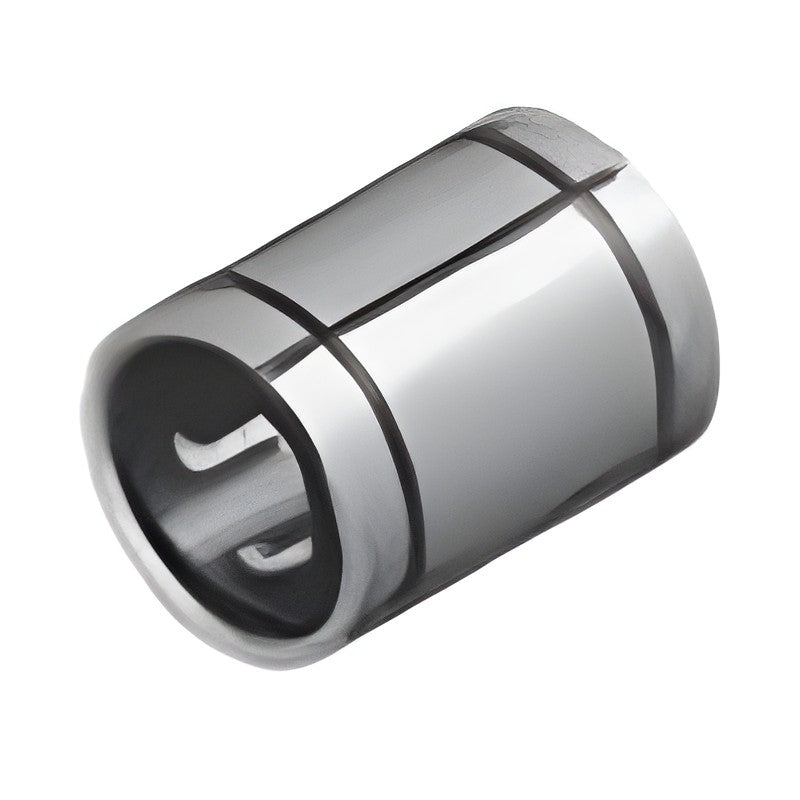

WON ST Linear Ball Bushing LM Series (Standard, Open, Adjustable)

WON ST Linear Ball Bushing LM Series (Standard, Open, Adjustable)

Standard (Asia) series linear ball bushing for cylindrical shafts, in cylindrical, open (OP) and adjustable clearance (AJ) types.

Key features

  • Outer sleeve of high carbon chromium bearing steel, ground after heat treatment
  • Integral retainer guiding 4 to 6 ball rows for stable running accuracy
  • Standardized dimensions for interchangeability
  • Plating or Raydent surface treatment available

Specifications

Seal Seals on both sides (UU)
Outer sleeve material High carbon chromium bearing steel
LM4UU Type: Cylindrical (standard) | Inside diameter dr: 4 mm | Outer diameter D: 8 mm | Length L: 12 mm | Ball rows: 4 | C (dynamic): 88 N | C0 (static): 127 N | Radial clearance tolerance: -3 um | Mass: 2 g
LM5UU Type: Cylindrical (standard) | Inside diameter dr: 5 mm | Outer diameter D: 10 mm | Length L: 15 mm | Retaining ring groove pitch B: 10.2 mm | Groove width W: 1.1 mm | Groove diameter D1: 9.6 mm | Ball rows: 4 | C (dynamic): 167 N | C0 (static): 206 N | Radial clearance tolerance: -3 um | Mass: 4 g
LM6UU Type: Cylindrical (standard) | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Retaining ring groove pitch B: 13.5 mm | Groove width W: 1.1 mm | Groove diameter D1: 11.5 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Radial clearance tolerance: -3 um | Mass: 8.5 g
LM6UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 6 mm | Outer diameter D: 12 mm | Length L: 19 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N
LM8SUU Type: Cylindrical (standard) | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 17 mm | Retaining ring groove pitch B: 11.5 mm | Groove width W: 1.1 mm | Groove diameter D1: 14.3 mm | Ball rows: 4 | C (dynamic): 176 N | C0 (static): 216 N | Radial clearance tolerance: -3 um | Mass: 11 g
LM8SUUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 17 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 176 N | C0 (static): 216 N
LM8UU Type: Cylindrical (standard) | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Retaining ring groove pitch B: 17.5 mm | Groove width W: 1.1 mm | Groove diameter D1: 14.3 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N | Radial clearance tolerance: -3 um | Mass: 17 g
LM8UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 8 mm | Outer diameter D: 15 mm | Length L: 24 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 274 N | C0 (static): 392 N
LM10UU Type: Cylindrical (standard) | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Retaining ring groove pitch B: 22 mm | Groove width W: 1.3 mm | Groove diameter D1: 18 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N | Radial clearance tolerance: -4 um | Mass: 36 g
LM10UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 10 mm | Outer diameter D: 19 mm | Length L: 29 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 372 N | C0 (static): 549 N
LM12UU Type: Cylindrical (standard) | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Retaining ring groove pitch B: 23 mm | Groove width W: 1.3 mm | Groove diameter D1: 20 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Radial clearance tolerance: -4 um | Mass: 42 g
LM12UUOP Type: Open (OP) | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Opening h1: 8 mm | Opening angle: 80 deg | Ball rows: 3 | C (dynamic): 510 N | C0 (static): 784 N
LM12UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 12 mm | Outer diameter D: 21 mm | Length L: 30 mm | Slit width h: 1.5 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N
LM13UU Type: Cylindrical (standard) | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Retaining ring groove pitch B: 23 mm | Groove width W: 1.3 mm | Groove diameter D1: 22 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Radial clearance tolerance: -4 um | Mass: 49 g
LM13UUOP Type: Open (OP) | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Opening h1: 9 mm | Opening angle: 80 deg | Ball rows: 3 | C (dynamic): 510 N | C0 (static): 784 N
LM13UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 13 mm | Outer diameter D: 23 mm | Length L: 32 mm | Slit width h: 1.5 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N
LM16UU Type: Cylindrical (standard) | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Retaining ring groove pitch B: 26.5 mm | Groove width W: 1.6 mm | Groove diameter D1: 27 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N | Radial clearance tolerance: -6 um | Mass: 76 g
LM16UUOP Type: Open (OP) | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Opening h1: 11 mm | Opening angle: 80 deg | Ball rows: 4 | C (dynamic): 774 N | C0 (static): 1180 N
LM16UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 16 mm | Outer diameter D: 28 mm | Length L: 37 mm | Slit width h: 1.5 mm | Ball rows: 5 | C (dynamic): 774 N | C0 (static): 1180 N
LM20UU Type: Cylindrical (standard) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Retaining ring groove pitch B: 30.5 mm | Groove width W: 1.6 mm | Groove diameter D1: 30.5 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N | Radial clearance tolerance: -6 um | Mass: 100 g
LM20UUOP Type: Open (OP) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Opening h1: 11 mm | Opening angle: 60 deg | Ball rows: 4 | C (dynamic): 882 N | C0 (static): 1370 N
LM20UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 42 mm | Slit width h: 1.5 mm | Ball rows: 5 | C (dynamic): 882 N | C0 (static): 1370 N
LM25UU Type: Cylindrical (standard) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Retaining ring groove pitch B: 41 mm | Groove width W: 1.85 mm | Groove diameter D1: 38 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Radial clearance tolerance: -6 um | Mass: 240 g
LM25UUOP Type: Open (OP) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Opening h1: 12 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 980 N | C0 (static): 1570 N
LM25UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 59 mm | Slit width h: 2 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N
LM30UU Type: Cylindrical (standard) | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Retaining ring groove pitch B: 44.5 mm | Groove width W: 1.85 mm | Groove diameter D1: 43 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Radial clearance tolerance: -8 um | Mass: 270 g
LM30UUOP Type: Open (OP) | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Opening h1: 15 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 1570 N | C0 (static): 2740 N
LM30UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 30 mm | Outer diameter D: 45 mm | Length L: 64 mm | Slit width h: 2.5 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N
LM35UU Type: Cylindrical (standard) | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Retaining ring groove pitch B: 49.5 mm | Groove width W: 2.1 mm | Groove diameter D1: 49 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 3140 N | Radial clearance tolerance: -8 um | Mass: 425 g
LM35UUOP Type: Open (OP) | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Opening h1: 17 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 2160 N | C0 (static): 3140 N
LM35UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 35 mm | Outer diameter D: 52 mm | Length L: 70 mm | Slit width h: 2.5 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 3140 N
LM40UU Type: Cylindrical (standard) | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Retaining ring groove pitch B: 60.5 mm | Groove width W: 2.1 mm | Groove diameter D1: 57 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 4020 N | Radial clearance tolerance: -10 um | Mass: 654 g
LM40UUOP Type: Open (OP) | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Opening h1: 20 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 3820 N | C0 (static): 4020 N
LM40UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 40 mm | Outer diameter D: 60 mm | Length L: 80 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 4020 N
LM50UU Type: Cylindrical (standard) | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Retaining ring groove pitch B: 74 mm | Groove width W: 2.6 mm | Groove diameter D1: 76.5 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Radial clearance tolerance: -13 um | Mass: 1700 g
LM50UUOP Type: Open (OP) | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Opening h1: 25 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 3820 N | C0 (static): 7940 N
LM50UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 50 mm | Outer diameter D: 80 mm | Length L: 100 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N
LM60UU Type: Cylindrical (standard) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Retaining ring groove pitch B: 85 mm | Groove width W: 3.15 mm | Groove diameter D1: 86.5 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N | Radial clearance tolerance: -13 um | Mass: 2000 g
LM60UUOP Type: Open (OP) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Opening h1: 30 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 4700 N | C0 (static): 10000 N
LM60UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 110 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 10000 N
Linear BushingsWON ST
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Linear Ball Bushing LM Series (Standard, Open, Adjustable)

Brand WON ST·Linear Bushings

Available part numbers (40)

LM4UU, LM5UU, LM6UU, LM6UUAJ, LM8SUU, LM8SUUAJ, LM8UU, LM8UUAJ, LM10UU, LM10UUAJ + 30 more — see full table ↓
