WON ST Linear Ball Bushing LME Series, Europe Series (Standard, Open, Adjustable)

WON ST Linear Ball Bushing LME Series, Europe Series (Standard, Open, Adjustable)

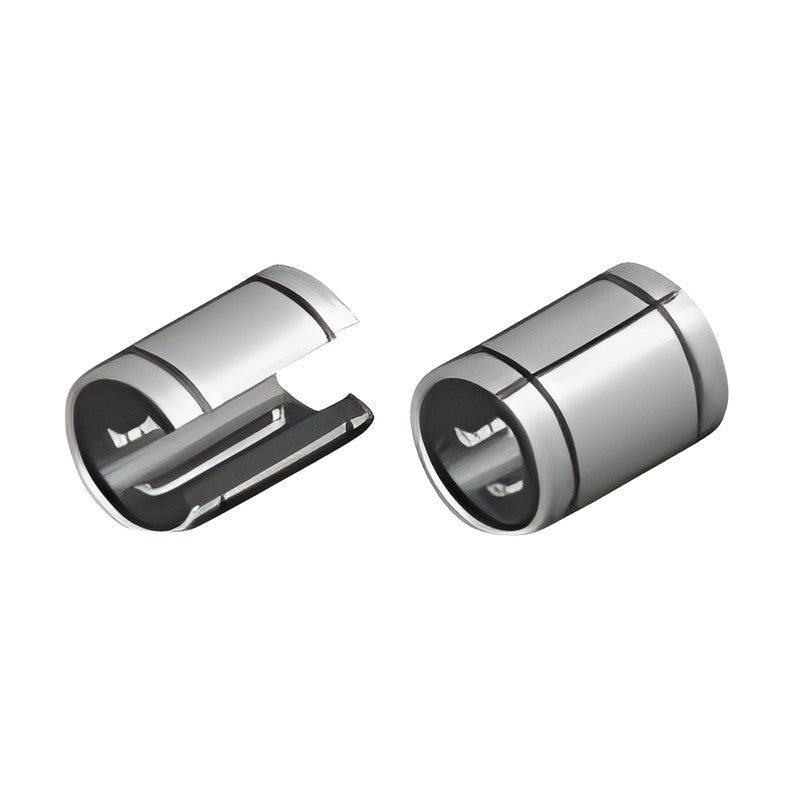

Europe series linear ball bushing for cylindrical shafts, in cylindrical, open (OP) and adjustable clearance (AJ) types.

Key features

  • Outer sleeve of high carbon chromium bearing steel, ground after heat treatment
  • Integral retainer guiding 4 to 6 ball rows for stable running accuracy
  • Standardized dimensions for interchangeability
  • Plating or Raydent surface treatment available

Specifications

Seal Seals on both sides (UU)
Outer sleeve material High carbon chromium bearing steel
LME5UU Type: Cylindrical (standard) | Inside diameter dr: 5 mm | Outer diameter D: 12 mm | Length L: 22 mm | Retaining ring groove pitch B: 14.5 mm | Groove width W: 1.1 mm | Groove diameter D1: 11.5 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N | Radial clearance tolerance: -3 um | Mass: 11 g
LME5UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 5 mm | Outer diameter D: 12 mm | Length L: 22 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 206 N | C0 (static): 265 N
LME8UU Type: Cylindrical (standard) | Inside diameter dr: 8 mm | Outer diameter D: 16 mm | Length L: 25 mm | Retaining ring groove pitch B: 16.5 mm | Groove width W: 1.1 mm | Groove diameter D1: 15.2 mm | Ball rows: 4 | C (dynamic): 265 N | C0 (static): 402 N | Radial clearance tolerance: -3 um | Mass: 22 g
LME8UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 8 mm | Outer diameter D: 16 mm | Length L: 25 mm | Slit width h: 1 mm | Ball rows: 4 | C (dynamic): 265 N | C0 (static): 402 N
LME12UU Type: Cylindrical (standard) | Inside diameter dr: 12 mm | Outer diameter D: 22 mm | Length L: 32 mm | Retaining ring groove pitch B: 22.9 mm | Groove width W: 1.3 mm | Groove diameter D1: 21 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N | Radial clearance tolerance: -4 um | Mass: 45 g
LME12UUOP Type: Open (OP) | Inside diameter dr: 12 mm | Outer diameter D: 22 mm | Length L: 32 mm | Opening h1: 7.5 mm | Opening angle: 78 deg | Ball rows: 3 | C (dynamic): 510 N | C0 (static): 784 N
LME12UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 12 mm | Outer diameter D: 22 mm | Length L: 32 mm | Slit width h: 1.5 mm | Ball rows: 4 | C (dynamic): 510 N | C0 (static): 784 N
LME16UU Type: Cylindrical (standard) | Inside diameter dr: 16 mm | Outer diameter D: 26 mm | Length L: 36 mm | Retaining ring groove pitch B: 24.9 mm | Groove width W: 1.3 mm | Groove diameter D1: 24.9 mm | Ball rows: 5 | C (dynamic): 578 N | C0 (static): 892 N | Radial clearance tolerance: -4 um | Mass: 60 g
LME16UUOP Type: Open (OP) | Inside diameter dr: 16 mm | Outer diameter D: 26 mm | Length L: 36 mm | Opening h1: 10 mm | Opening angle: 78 deg | Ball rows: 4 | C (dynamic): 578 N | C0 (static): 892 N
LME16UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 16 mm | Outer diameter D: 26 mm | Length L: 36 mm | Slit width h: 1.5 mm | Ball rows: 5 | C (dynamic): 578 N | C0 (static): 892 N
LME20UU Type: Cylindrical (standard) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 45 mm | Retaining ring groove pitch B: 31.5 mm | Groove width W: 1.6 mm | Groove diameter D1: 30.3 mm | Ball rows: 5 | C (dynamic): 862 N | C0 (static): 1370 N | Radial clearance tolerance: -6 um | Mass: 102 g
LME20UUOP Type: Open (OP) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 45 mm | Opening h1: 10 mm | Opening angle: 60 deg | Ball rows: 4 | C (dynamic): 862 N | C0 (static): 1370 N
LME20UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 20 mm | Outer diameter D: 32 mm | Length L: 45 mm | Slit width h: 2 mm | Ball rows: 5 | C (dynamic): 862 N | C0 (static): 1370 N
LME25UU Type: Cylindrical (standard) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 58 mm | Retaining ring groove pitch B: 44.1 mm | Groove width W: 1.85 mm | Groove diameter D1: 37.5 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N | Radial clearance tolerance: -6 um | Mass: 235 g
LME25UUOP Type: Open (OP) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 58 mm | Opening h1: 12.5 mm | Opening angle: 60 deg | Ball rows: 5 | C (dynamic): 980 N | C0 (static): 1570 N
LME25UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 25 mm | Outer diameter D: 40 mm | Length L: 58 mm | Slit width h: 2 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1570 N
LME30UU Type: Cylindrical (standard) | Inside diameter dr: 30 mm | Outer diameter D: 47 mm | Length L: 68 mm | Retaining ring groove pitch B: 52.1 mm | Groove width W: 1.85 mm | Groove diameter D1: 44.5 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N | Radial clearance tolerance: -8 um | Mass: 360 g
LME30UUOP Type: Open (OP) | Inside diameter dr: 30 mm | Outer diameter D: 47 mm | Length L: 68 mm | Opening h1: 12.5 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 1570 N | C0 (static): 2740 N
LME30UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 30 mm | Outer diameter D: 47 mm | Length L: 68 mm | Slit width h: 2 mm | Ball rows: 6 | C (dynamic): 1570 N | C0 (static): 2740 N
LME40UU Type: Cylindrical (standard) | Inside diameter dr: 40 mm | Outer diameter D: 62 mm | Length L: 80 mm | Retaining ring groove pitch B: 60.6 mm | Groove width W: 2.15 mm | Groove diameter D1: 59 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N | Radial clearance tolerance: -8 um | Mass: 770 g
LME40UUOP Type: Open (OP) | Inside diameter dr: 40 mm | Outer diameter D: 62 mm | Length L: 80 mm | Opening h1: 16.8 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 2160 N | C0 (static): 4020 N
LME40UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 40 mm | Outer diameter D: 62 mm | Length L: 80 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 2160 N | C0 (static): 4020 N
LME50UU Type: Cylindrical (standard) | Inside diameter dr: 50 mm | Outer diameter D: 75 mm | Length L: 100 mm | Retaining ring groove pitch B: 77.6 mm | Groove width W: 2.65 mm | Groove diameter D1: 72 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N | Radial clearance tolerance: -13 um | Mass: 1250 g
LME50UUOP Type: Open (OP) | Inside diameter dr: 50 mm | Outer diameter D: 75 mm | Length L: 100 mm | Opening h1: 21 mm | Opening angle: 50 deg | Ball rows: 5 | C (dynamic): 3820 N | C0 (static): 7940 N
LME50UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 50 mm | Outer diameter D: 75 mm | Length L: 100 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7940 N
LME60UU Type: Cylindrical (standard) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 125 mm | Retaining ring groove pitch B: 101.7 mm | Groove width W: 3.15 mm | Groove diameter D1: 86.5 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 9800 N | Radial clearance tolerance: -13 um | Mass: 2220 g
LME60UUOP Type: Open (OP) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 125 mm | Opening h1: 27.2 mm | Opening angle: 54 deg | Ball rows: 5 | C (dynamic): 4700 N | C0 (static): 9800 N
LME60UUAJ Type: Adjustable clearance (AJ) | Inside diameter dr: 60 mm | Outer diameter D: 90 mm | Length L: 125 mm | Slit width h: 3 mm | Ball rows: 6 | C (dynamic): 4700 N | C0 (static): 9800 N
