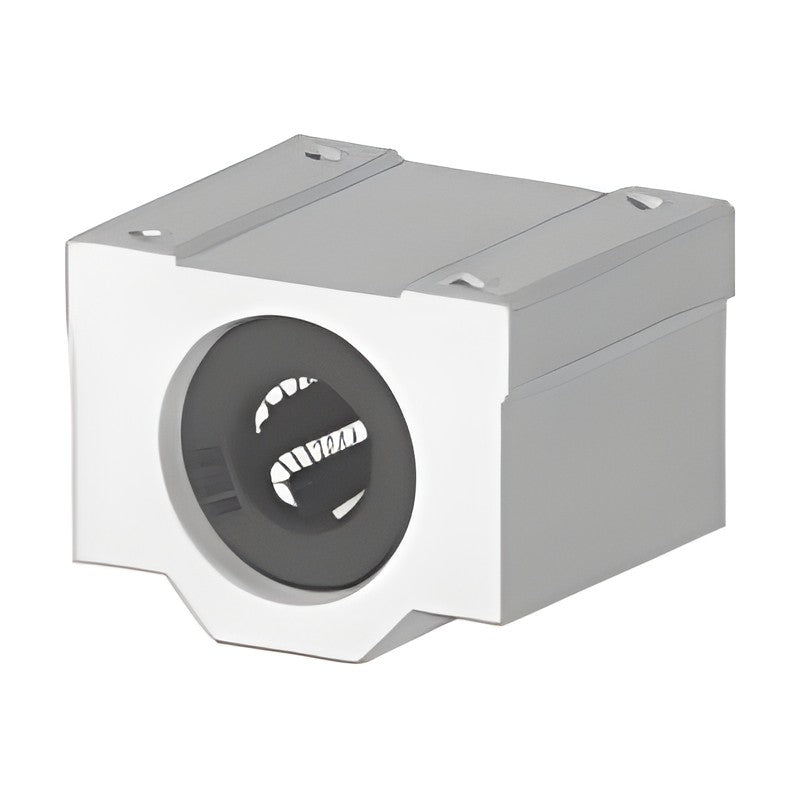

WON ST Linear Bushing Block SC Series, Closed Type

WON ST Linear Bushing Block SC Series, Closed Type

Aluminum linear bushing block (pillow block) with one LM..UU linear ball bushing built in.

Key features

  • One LM..UU linear ball bushing built in
  • Mount from the top with four bolts

Specifications

Bushing 1 pc LM..UU
Marking Marked SH..UU on the side
SC8UU Shaft diameter d: 8 mm | Center height h: 11 mm | Width W: 34 mm | Length L: 30 mm | Height F: 22 mm | Mounting pitch B x C: 24 x 18 mm | Bolt hole S2: 3.4 mm | Ball rows: 4 | C (dynamic): 260 N | C0 (static): 400 N | Mass: 52 g
SC10UU Shaft diameter d: 10 mm | Center height h: 13 mm | Width W: 40 mm | Length L: 35 mm | Height F: 26 mm | Mounting pitch B x C: 28 x 21 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 370 N | C0 (static): 540 N | Mass: 92 g
SC12UU Shaft diameter d: 12 mm | Center height h: 15 mm | Width W: 42 mm | Length L: 36 mm | Height F: 29 mm | Mounting pitch B x C: 30.5 x 26 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 410 N | C0 (static): 490 N | Mass: 102 g
SC13UU Shaft diameter d: 13 mm | Center height h: 15 mm | Width W: 44 mm | Length L: 39 mm | Height F: 30 mm | Mounting pitch B x C: 33 x 26 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 500 N | C0 (static): 770 N | Mass: 123 g
SC16UU Shaft diameter d: 16 mm | Center height h: 19 mm | Width W: 50 mm | Length L: 44 mm | Height F: 38.5 mm | Mounting pitch B x C: 36 x 34 mm | Bolt hole S2: 4.3 mm | Ball rows: 5 | C (dynamic): 770 N | C0 (static): 1170 N | Mass: 189 g
SC20UU Shaft diameter d: 20 mm | Center height h: 21 mm | Width W: 54 mm | Length L: 50 mm | Height F: 41 mm | Mounting pitch B x C: 40 x 40 mm | Bolt hole S2: 5.2 mm | Ball rows: 5 | C (dynamic): 860 N | C0 (static): 1370 N | Mass: 237 g
SC25UU Shaft diameter d: 25 mm | Center height h: 26 mm | Width W: 76 mm | Length L: 67 mm | Height F: 51.5 mm | Mounting pitch B x C: 54 x 50 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 980 N | C0 (static): 1560 N | Mass: 555 g
SC30UU Shaft diameter d: 30 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 72 mm | Height F: 59.5 mm | Mounting pitch B x C: 58 x 58 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 2740 N | Mass: 685 g
SC35UU Shaft diameter d: 35 mm | Center height h: 34 mm | Width W: 90 mm | Length L: 80 mm | Height F: 68 mm | Mounting pitch B x C: 70 x 60 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 1660 N | C0 (static): 3130 N | Mass: 1100 g
SC40UU Shaft diameter d: 40 mm | Center height h: 40 mm | Width W: 102 mm | Length L: 90 mm | Height F: 78 mm | Mounting pitch B x C: 80 x 60 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 2150 N | C0 (static): 4010 N | Mass: 1600 g
SC50UU Shaft diameter d: 50 mm | Center height h: 52 mm | Width W: 122 mm | Length L: 110 mm | Height F: 102 mm | Mounting pitch B x C: 100 x 80 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 3820 N | C0 (static): 7930 N | Mass: 3350 g
