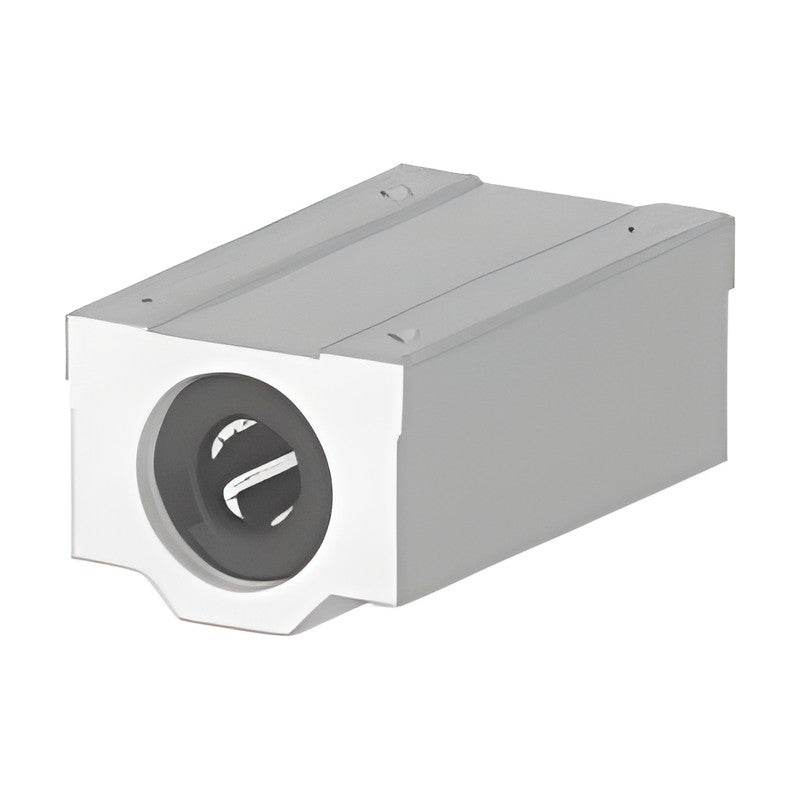

WON ST Linear Bushing Block SCWN Series, Double Closed Type

WON ST Linear Bushing Block SCWN Series, Double Closed Type

Double-length aluminum linear bushing block with two LM..UU linear ball bushings built in.

Key features

  • Two LM..UU linear ball bushings built in
  • Mount from the top with four bolts

Specifications

Bushing 2 pcs LM..UU
Marking Marked SHW..UU on the side
SCWN10UU Shaft diameter d: 10 mm | Center height h: 13 mm | Width W: 40 mm | Length L: 68 mm | Height F: 26 mm | Mounting pitch B x C: 28 x 46 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N
SCWN12UU Shaft diameter d: 12 mm | Center height h: 15 mm | Width W: 42 mm | Length L: 70 mm | Height F: 29 mm | Mounting pitch B x C: 30.5 x 50 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N
SCWN13UU Shaft diameter d: 13 mm | Center height h: 15 mm | Width W: 44 mm | Length L: 75 mm | Height F: 30 mm | Mounting pitch B x C: 33 x 50 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N
SCWN16UU Shaft diameter d: 16 mm | Center height h: 19 mm | Width W: 50 mm | Length L: 85 mm | Height F: 38.5 mm | Mounting pitch B x C: 36 x 60 mm | Bolt hole S2: 4.3 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N
SCWN20UU Shaft diameter d: 20 mm | Center height h: 21 mm | Width W: 54 mm | Length L: 96 mm | Height F: 41 mm | Mounting pitch B x C: 40 x 70 mm | Bolt hole S2: 5.2 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N
SCWN25UU Shaft diameter d: 25 mm | Center height h: 26 mm | Width W: 76 mm | Length L: 130 mm | Height F: 51.5 mm | Mounting pitch B x C: 54 x 100 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N
SCWN30UU Shaft diameter d: 30 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 140 mm | Height F: 59.5 mm | Mounting pitch B x C: 58 x 110 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N
SCWN35UU Shaft diameter d: 35 mm | Center height h: 34 mm | Width W: 90 mm | Length L: 155 mm | Height F: 68 mm | Mounting pitch B x C: 70 x 120 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N
SCWN40UU Shaft diameter d: 40 mm | Center height h: 40 mm | Width W: 102 mm | Length L: 175 mm | Height F: 78 mm | Mounting pitch B x C: 80 x 140 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N
SCWN50UU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 122 mm | Length L: 215 mm | Height F: 102 mm | Mounting pitch B x C: 100 x 160 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N
Linear Bushing BlocksWON ST
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Linear Bushing Block SCWN Series, Double Closed Type

Brand WON ST·Linear Bushing Blocks

Available part numbers (10)

SCWN10UU, SCWN12UU, SCWN13UU, SCWN16UU, SCWN20UU, SCWN25UU, SCWN30UU, SCWN35UU, SCWN40UU, SCWN50UU

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCWN10UUShaft diameter d: 10 mm | Center height h: 13 mm | Width W: 40 mm | Length L: 68 mm | Height F: 26 mm | Mounting pitch B x C: 28 x 46 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 588 N | C0 (static): 1100 N
SCWN12UUShaft diameter d: 12 mm | Center height h: 15 mm | Width W: 42 mm | Length L: 70 mm | Height F: 29 mm | Mounting pitch B x C: 30.5 x 50 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N
SCWN13UUShaft diameter d: 13 mm | Center height h: 15 mm | Width W: 44 mm | Length L: 75 mm | Height F: 30 mm | Mounting pitch B x C: 33 x 50 mm | Bolt hole S2: 4.3 mm | Ball rows: 4 | C (dynamic): 813 N | C0 (static): 1570 N
SCWN16UUShaft diameter d: 16 mm | Center height h: 19 mm | Width W: 50 mm | Length L: 85 mm | Height F: 38.5 mm | Mounting pitch B x C: 36 x 60 mm | Bolt hole S2: 4.3 mm | Ball rows: 5 | C (dynamic): 1230 N | C0 (static): 2350 N
SCWN20UUShaft diameter d: 20 mm | Center height h: 21 mm | Width W: 54 mm | Length L: 96 mm | Height F: 41 mm | Mounting pitch B x C: 40 x 70 mm | Bolt hole S2: 5.2 mm | Ball rows: 5 | C (dynamic): 1400 N | C0 (static): 2740 N
SCWN25UUShaft diameter d: 25 mm | Center height h: 26 mm | Width W: 76 mm | Length L: 130 mm | Height F: 51.5 mm | Mounting pitch B x C: 54 x 100 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 1560 N | C0 (static): 3140 N
SCWN30UUShaft diameter d: 30 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 140 mm | Height F: 59.5 mm | Mounting pitch B x C: 58 x 110 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 2490 N | C0 (static): 5490 N
SCWN35UUShaft diameter d: 35 mm | Center height h: 34 mm | Width W: 90 mm | Length L: 155 mm | Height F: 68 mm | Mounting pitch B x C: 70 x 120 mm | Bolt hole S2: 7 mm | Ball rows: 6 | C (dynamic): 2650 N | C0 (static): 6270 N
SCWN40UUShaft diameter d: 40 mm | Center height h: 40 mm | Width W: 102 mm | Length L: 175 mm | Height F: 78 mm | Mounting pitch B x C: 80 x 140 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 3430 N | C0 (static): 8040 N
SCWN50UUShaft diameter d: 50 mm | Center height h: 50 mm | Width W: 122 mm | Length L: 215 mm | Height F: 102 mm | Mounting pitch B x C: 100 x 160 mm | Bolt hole S2: 8.7 mm | Ball rows: 6 | C (dynamic): 6080 N | C0 (static): 15900 N
