WON ST Linear Motion Guide H-FNA / H-FLA Series, Thin Flange Type

WON ST Linear Motion Guide H-FNA / H-FLA Series, Thin Flange Type

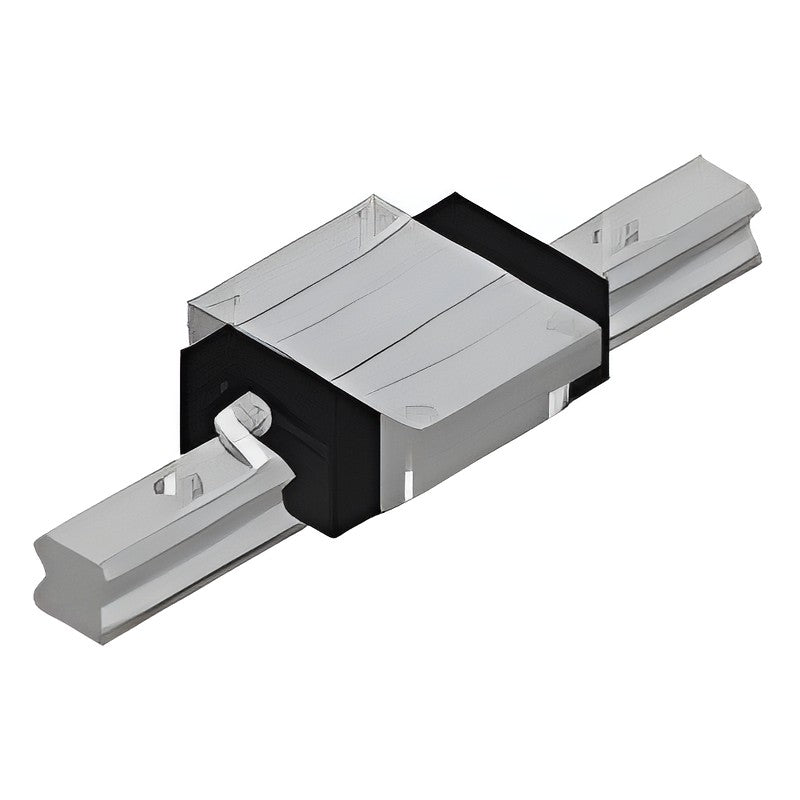

Four-row circular arc-groove linear motion guide with 4-direction equal load rating (45-degree ball contact) and a face-to-face D/F structure.

Key features

  • 4-row circular arc groove, 4-direction equal load (45° contact)
  • Face-to-face D/F structure for self-alignment and error absorption
  • High rigidity and stable long-term travel accuracy
  • Excellent wear resistance for long life
  • Interchangeable rails and blocks

Specifications

Material Standard or stainless (M) block and rail
Rolling element Ball (full-ball)
Block type Flange, reduced flange thickness for bottom bolting
H15FNA Height H: 24 mm | Width W: 47 mm | Length L: 56.5 mm | Mounting pitch B: 38 mm | Mounting pitch C: 30 mm | Mounting bolt M: M5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.19 kg | Rail mass: 1.3 kg/m
H15FLA Height H: 24 mm | Width W: 47 mm | Length L: 64.8 mm | Mounting pitch B: 38 mm | Mounting pitch C: 30 mm | Mounting bolt M: M5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 14.3 kN | C0 (static): 19.3 kN | Block mass: 0.24 kg | Rail mass: 1.3 kg/m
H25FNA Height H: 36 mm | Width W: 70 mm | Length L: 83.2 mm | Mounting pitch B: 57 mm | Mounting pitch C: 45 mm | Mounting bolt M: M8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.61 kg | Rail mass: 3.0 kg/m
H25FLA Height H: 36 mm | Width W: 70 mm | Length L: 103.1 mm | Mounting pitch B: 57 mm | Mounting pitch C: 45 mm | Mounting bolt M: M8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 32.8 kN | C0 (static): 43.6 kN | Block mass: 0.82 kg | Rail mass: 3.0 kg/m
H30FNA Height H: 42 mm | Width W: 90 mm | Length L: 99.3 mm | Mounting pitch B: 72 mm | Mounting pitch C: 52 mm | Mounting bolt M: M10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 50.4 kN | C0 (static): 57.1 kN | Block mass: 1.1 kg | Rail mass: 4.85 kg/m
H30FLA Height H: 42 mm | Width W: 90 mm | Length L: 121.5 mm | Mounting pitch B: 72 mm | Mounting pitch C: 52 mm | Mounting bolt M: M10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 60.3 kN | C0 (static): 73.6 kN | Block mass: 1.3 kg | Rail mass: 4.85 kg/m
H35FNA Height H: 48 mm | Width W: 100 mm | Length L: 111.8 mm | Mounting pitch B: 82 mm | Mounting pitch C: 62 mm | Mounting bolt M: M10 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 67.0 kN | C0 (static): 74.6 kN | Block mass: 1.6 kg | Rail mass: 6.58 kg/m
H35FLA Height H: 48 mm | Width W: 100 mm | Length L: 137.2 mm | Mounting pitch B: 82 mm | Mounting pitch C: 62 mm | Mounting bolt M: M10 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 80.2 kN | C0 (static): 96.2 kN | Block mass: 2.01 kg | Rail mass: 6.58 kg/m
LM GuidesWON ST
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Linear Motion Guide H-FNA / H-FLA Series, Thin Flange Type

Brand WON ST·LM Guides

Available part numbers (8)

H15FNA, H15FLA, H25FNA, H25FLA, H30FNA, H30FLA, H35FNA, H35FLA

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H15FNAHeight H: 24 mm | Width W: 47 mm | Length L: 56.5 mm | Mounting pitch B: 38 mm | Mounting pitch C: 30 mm | Mounting bolt M: M5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.19 kg | Rail mass: 1.3 kg/m
H15FLAHeight H: 24 mm | Width W: 47 mm | Length L: 64.8 mm | Mounting pitch B: 38 mm | Mounting pitch C: 30 mm | Mounting bolt M: M5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 14.3 kN | C0 (static): 19.3 kN | Block mass: 0.24 kg | Rail mass: 1.3 kg/m
H25FNAHeight H: 36 mm | Width W: 70 mm | Length L: 83.2 mm | Mounting pitch B: 57 mm | Mounting pitch C: 45 mm | Mounting bolt M: M8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.61 kg | Rail mass: 3.0 kg/m
H25FLAHeight H: 36 mm | Width W: 70 mm | Length L: 103.1 mm | Mounting pitch B: 57 mm | Mounting pitch C: 45 mm | Mounting bolt M: M8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 32.8 kN | C0 (static): 43.6 kN | Block mass: 0.82 kg | Rail mass: 3.0 kg/m
H30FNAHeight H: 42 mm | Width W: 90 mm | Length L: 99.3 mm | Mounting pitch B: 72 mm | Mounting pitch C: 52 mm | Mounting bolt M: M10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 50.4 kN | C0 (static): 57.1 kN | Block mass: 1.1 kg | Rail mass: 4.85 kg/m
H30FLAHeight H: 42 mm | Width W: 90 mm | Length L: 121.5 mm | Mounting pitch B: 72 mm | Mounting pitch C: 52 mm | Mounting bolt M: M10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 60.3 kN | C0 (static): 73.6 kN | Block mass: 1.3 kg | Rail mass: 4.85 kg/m
H35FNAHeight H: 48 mm | Width W: 100 mm | Length L: 111.8 mm | Mounting pitch B: 82 mm | Mounting pitch C: 62 mm | Mounting bolt M: M10 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 67.0 kN | C0 (static): 74.6 kN | Block mass: 1.6 kg | Rail mass: 6.58 kg/m
H35FLAHeight H: 48 mm | Width W: 100 mm | Length L: 137.2 mm | Mounting pitch B: 82 mm | Mounting pitch C: 62 mm | Mounting bolt M: M10 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 80.2 kN | C0 (static): 96.2 kN | Block mass: 2.01 kg | Rail mass: 6.58 kg/m
