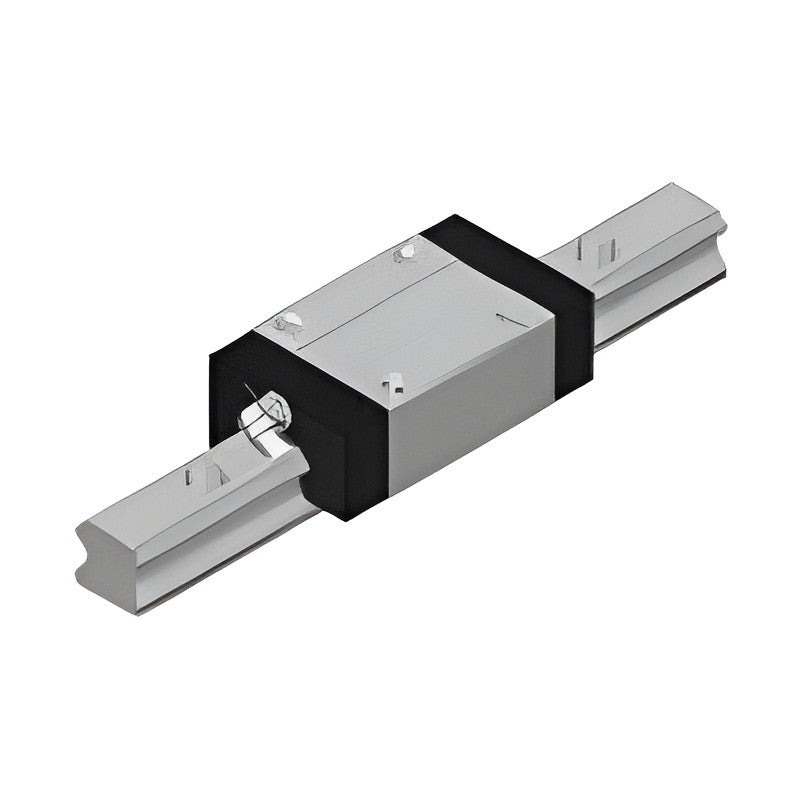

WON ST Linear Motion Guide H-RN / H-RL Series, Rectangular Type

WON ST Linear Motion Guide H-RN / H-RL Series, Rectangular Type

Four-row circular arc-groove linear motion guide with 4-direction equal load rating (45-degree ball contact) and a face-to-face D/F structure.

Key features

  • 4-row circular arc groove, 4-direction equal load (45° contact)
  • Face-to-face D/F structure for self-alignment and error absorption
  • High rigidity and stable long-term travel accuracy
  • Excellent wear resistance for long life
  • Interchangeable rails and blocks

Specifications

Material Standard or stainless (M) block and rail
Rolling element Ball (full-ball)
Block type Rectangular (top tapped, compact width)
H15RN Height H: 28 mm | Width W: 34 mm | Length L: 56.5 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.18 kg | Rail mass: 1.3 kg/m
H15RL Height H: 28 mm | Width W: 34 mm | Length L: 64.8 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 14.3 kN | C0 (static): 19.3 kN | Block mass: 0.23 kg | Rail mass: 1.3 kg/m
H20RN Height H: 30 mm | Width W: 44 mm | Length L: 73.2 mm | Mounting pitch B: 32 mm | Mounting pitch C: 36 mm | Mounting bolt M: M5x6 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 18.3 kN | C0 (static): 23.9 kN | Block mass: 0.31 kg | Rail mass: 2.2 kg/m
H20RL Height H: 30 mm | Width W: 44 mm | Length L: 89.1 mm | Mounting pitch B: 32 mm | Mounting pitch C: 50 mm | Mounting bolt M: M5x6 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 21.8 kN | C0 (static): 30.7 kN | Block mass: 0.41 kg | Rail mass: 2.2 kg/m
H25RN Height H: 40 mm | Width W: 48 mm | Length L: 83.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.53 kg | Rail mass: 3.0 kg/m
H25RL Height H: 40 mm | Width W: 48 mm | Length L: 103.1 mm | Mounting pitch B: 35 mm | Mounting pitch C: 50 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 32.8 kN | C0 (static): 43.6 kN | Block mass: 0.71 kg | Rail mass: 3.0 kg/m
H30RN Height H: 45 mm | Width W: 60 mm | Length L: 99.3 mm | Mounting pitch B: 40 mm | Mounting pitch C: 40 mm | Mounting bolt M: M8x10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 50.4 kN | C0 (static): 57.1 kN | Block mass: 0.9 kg | Rail mass: 4.85 kg/m
H30RL Height H: 45 mm | Width W: 60 mm | Length L: 121.5 mm | Mounting pitch B: 40 mm | Mounting pitch C: 60 mm | Mounting bolt M: M8x10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 60.3 kN | C0 (static): 73.6 kN | Block mass: 1.1 kg | Rail mass: 4.85 kg/m
H35RN Height H: 55 mm | Width W: 70 mm | Length L: 111.8 mm | Mounting pitch B: 50 mm | Mounting pitch C: 50 mm | Mounting bolt M: M8x12 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 67.0 kN | C0 (static): 74.6 kN | Block mass: 1.5 kg | Rail mass: 6.58 kg/m
H35RL Height H: 55 mm | Width W: 70 mm | Length L: 137.2 mm | Mounting pitch B: 50 mm | Mounting pitch C: 72 mm | Mounting bolt M: M8x12 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 80.2 kN | C0 (static): 96.2 kN | Block mass: 2.01 kg | Rail mass: 6.58 kg/m
H45RN Height H: 70 mm | Width W: 86 mm | Length L: 139.0 mm | Mounting pitch B: 60 mm | Mounting pitch C: 60 mm | Mounting bolt M: M10x17 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 108.5 kN | C0 (static): 116.4 kN | Block mass: 2.89 kg | Rail mass: 11.03 kg/m
H45RL Height H: 70 mm | Width W: 86 mm | Length L: 170.8 mm | Mounting pitch B: 60 mm | Mounting pitch C: 80 mm | Mounting bolt M: M10x17 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 129.7 kN | C0 (static): 150.1 kN | Block mass: 3.74 kg | Rail mass: 11.03 kg/m
H55RN Height H: 80 mm | Width W: 100 mm | Length L: 163.0 mm | Mounting pitch B: 75 mm | Mounting pitch C: 75 mm | Mounting bolt M: M12x18 | Rail width W1: 53 mm | Rail height H1: 44 mm | C (dynamic): 155.9 kN | C0 (static): 161.5 kN | Block mass: 4.28 kg | Rail mass: 15.26 kg/m
H55RL Height H: 80 mm | Width W: 100 mm | Length L: 201.1 mm | Mounting pitch B: 75 mm | Mounting pitch C: 95 mm | Mounting bolt M: M12x18 | Rail width W1: 53 mm | Rail height H1: 44 mm | C (dynamic): 187.5 kN | C0 (static): 210.1 kN | Block mass: 5.59 kg | Rail mass: 15.26 kg/m
LM GuidesWON ST
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Linear Motion Guide H-RN / H-RL Series, Rectangular Type

Brand WON ST·LM Guides

Available part numbers (14)

H15RN, H15RL, H20RN, H20RL, H25RN, H25RL, H30RN, H30RL, H35RN, H35RL + 4 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H15RNHeight H: 28 mm | Width W: 34 mm | Length L: 56.5 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.18 kg | Rail mass: 1.3 kg/m
H15RLHeight H: 28 mm | Width W: 34 mm | Length L: 64.8 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x5 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 14.3 kN | C0 (static): 19.3 kN | Block mass: 0.23 kg | Rail mass: 1.3 kg/m
H20RNHeight H: 30 mm | Width W: 44 mm | Length L: 73.2 mm | Mounting pitch B: 32 mm | Mounting pitch C: 36 mm | Mounting bolt M: M5x6 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 18.3 kN | C0 (static): 23.9 kN | Block mass: 0.31 kg | Rail mass: 2.2 kg/m
H20RLHeight H: 30 mm | Width W: 44 mm | Length L: 89.1 mm | Mounting pitch B: 32 mm | Mounting pitch C: 50 mm | Mounting bolt M: M5x6 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 21.8 kN | C0 (static): 30.7 kN | Block mass: 0.41 kg | Rail mass: 2.2 kg/m
H25RNHeight H: 40 mm | Width W: 48 mm | Length L: 83.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.53 kg | Rail mass: 3.0 kg/m
H25RLHeight H: 40 mm | Width W: 48 mm | Length L: 103.1 mm | Mounting pitch B: 35 mm | Mounting pitch C: 50 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 32.8 kN | C0 (static): 43.6 kN | Block mass: 0.71 kg | Rail mass: 3.0 kg/m
H30RNHeight H: 45 mm | Width W: 60 mm | Length L: 99.3 mm | Mounting pitch B: 40 mm | Mounting pitch C: 40 mm | Mounting bolt M: M8x10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 50.4 kN | C0 (static): 57.1 kN | Block mass: 0.9 kg | Rail mass: 4.85 kg/m
H30RLHeight H: 45 mm | Width W: 60 mm | Length L: 121.5 mm | Mounting pitch B: 40 mm | Mounting pitch C: 60 mm | Mounting bolt M: M8x10 | Rail width W1: 28 mm | Rail height H1: 26 mm | C (dynamic): 60.3 kN | C0 (static): 73.6 kN | Block mass: 1.1 kg | Rail mass: 4.85 kg/m
H35RNHeight H: 55 mm | Width W: 70 mm | Length L: 111.8 mm | Mounting pitch B: 50 mm | Mounting pitch C: 50 mm | Mounting bolt M: M8x12 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 67.0 kN | C0 (static): 74.6 kN | Block mass: 1.5 kg | Rail mass: 6.58 kg/m
H35RLHeight H: 55 mm | Width W: 70 mm | Length L: 137.2 mm | Mounting pitch B: 50 mm | Mounting pitch C: 72 mm | Mounting bolt M: M8x12 | Rail width W1: 34 mm | Rail height H1: 29 mm | C (dynamic): 80.2 kN | C0 (static): 96.2 kN | Block mass: 2.01 kg | Rail mass: 6.58 kg/m
H45RNHeight H: 70 mm | Width W: 86 mm | Length L: 139.0 mm | Mounting pitch B: 60 mm | Mounting pitch C: 60 mm | Mounting bolt M: M10x17 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 108.5 kN | C0 (static): 116.4 kN | Block mass: 2.89 kg | Rail mass: 11.03 kg/m
H45RLHeight H: 70 mm | Width W: 86 mm | Length L: 170.8 mm | Mounting pitch B: 60 mm | Mounting pitch C: 80 mm | Mounting bolt M: M10x17 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 129.7 kN | C0 (static): 150.1 kN | Block mass: 3.74 kg | Rail mass: 11.03 kg/m
H55RNHeight H: 80 mm | Width W: 100 mm | Length L: 163.0 mm | Mounting pitch B: 75 mm | Mounting pitch C: 75 mm | Mounting bolt M: M12x18 | Rail width W1: 53 mm | Rail height H1: 44 mm | C (dynamic): 155.9 kN | C0 (static): 161.5 kN | Block mass: 4.28 kg | Rail mass: 15.26 kg/m
H55RLHeight H: 80 mm | Width W: 100 mm | Length L: 201.1 mm | Mounting pitch B: 75 mm | Mounting pitch C: 95 mm | Mounting bolt M: M12x18 | Rail width W1: 53 mm | Rail height H1: 44 mm | C (dynamic): 187.5 kN | C0 (static): 210.1 kN | Block mass: 5.59 kg | Rail mass: 15.26 kg/m
