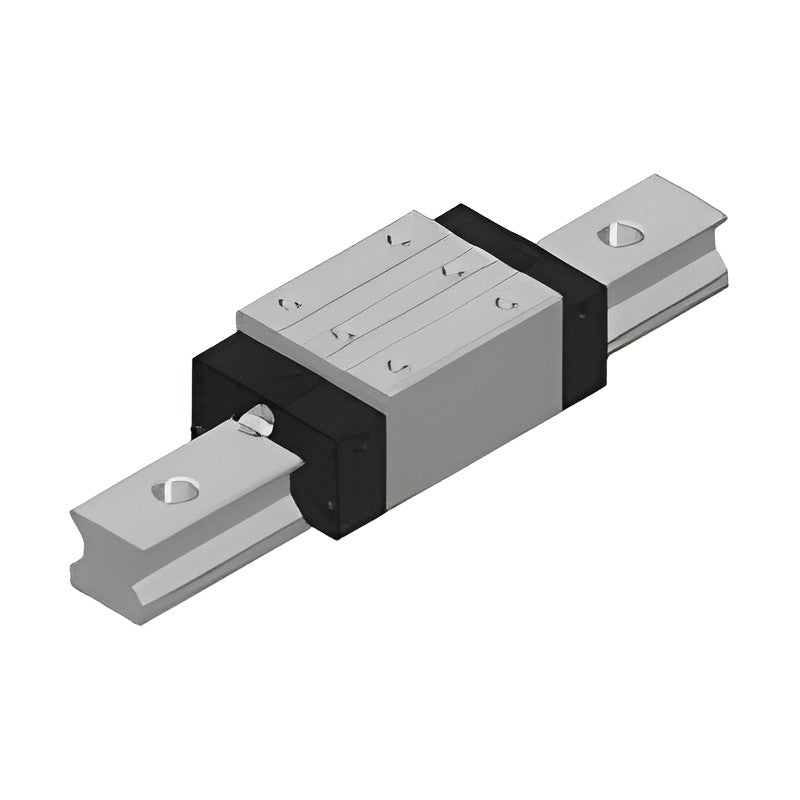

WON ST Roller Linear Motion Guide R-RN / R-RL Series, Rectangular Type

WON ST Roller Linear Motion Guide R-RN / R-RL Series, Rectangular Type

Roller linear motion guide with a compact rectangular block tapped on top, in standard (RN) and long (RL) lengths.

Key features

  • Four-row cylindrical rollers at 45 degree contact angle, 4-direction equal load
  • Higher rigidity and load capacity than ball types of the same size
  • Low displacement under impact or variable load; good vibration damping
  • Long life with excellent wear resistance

Specifications

Block type Rectangular (tapped top)
Rolling element Cylindrical roller, 4-row
Grease nipple B-M6F
R25RN Height H: 40 mm | Width W: 48 mm | Length L: 92.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 35 mm | Mounting bolt M: M6x9 | Rail width W1: 23 mm | Rail height H1: 24 mm | C (dynamic): 29.1 kN | C0 (static): 56.2 kN | Block mass: 0.7 kg | Rail mass: 3.1 kg/m
R25RL Height H: 40 mm | Width W: 48 mm | Length L: 110.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 50 mm | Mounting bolt M: M6x9 | Rail width W1: 23 mm | Rail height H1: 24 mm | C (dynamic): 35.6 kN | C0 (static): 73.1 kN | Block mass: 0.9 kg | Rail mass: 3.1 kg/m
R30RN Height H: 45 mm | Width W: 60 mm | Length L: 103.8 mm | Mounting pitch B: 40 mm | Mounting pitch C: 40 mm | Mounting bolt M: M8x11 | Rail width W1: 28 mm | Rail height H1: 28 mm | C (dynamic): 44.4 kN | C0 (static): 87.3 kN | Block mass: 1.2 kg | Rail mass: 4.4 kg/m
R30RL Height H: 45 mm | Width W: 60 mm | Length L: 126.6 mm | Mounting pitch B: 40 mm | Mounting pitch C: 60 mm | Mounting bolt M: M8x11 | Rail width W1: 28 mm | Rail height H1: 28 mm | C (dynamic): 55.0 kN | C0 (static): 114.8 kN | Block mass: 1.5 kg | Rail mass: 4.4 kg/m
R35RN Height H: 55 mm | Width W: 70 mm | Length L: 118.3 mm | Mounting pitch B: 50 mm | Mounting pitch C: 50 mm | Mounting bolt M: M8x13 | Rail width W1: 34 mm | Rail height H1: 31 mm | C (dynamic): 61.0 kN | C0 (static): 114.0 kN | Block mass: 2.0 kg | Rail mass: 6.2 kg/m
R35RL Height H: 55 mm | Width W: 70 mm | Length L: 142.3 mm | Mounting pitch B: 50 mm | Mounting pitch C: 72 mm | Mounting bolt M: M8x13 | Rail width W1: 34 mm | Rail height H1: 31 mm | C (dynamic): 75.6 kN | C0 (static): 150.0 kN | Block mass: 2.5 kg | Rail mass: 6.2 kg/m
R45RN Height H: 70 mm | Width W: 86 mm | Length L: 146.3 mm | Mounting pitch B: 60 mm | Mounting pitch C: 60 mm | Mounting bolt M: M10x20 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 103.8 kN | C0 (static): 202.0 kN | Block mass: 3.9 kg | Rail mass: 10.1 kg/m
R45RL Height H: 70 mm | Width W: 86 mm | Length L: 178.8 mm | Mounting pitch B: 60 mm | Mounting pitch C: 80 mm | Mounting bolt M: M10x20 | Rail width W1: 45 mm | Rail height H1: 38 mm | C (dynamic): 132.3 kN | C0 (static): 276.2 kN | Block mass: 5.0 kg | Rail mass: 10.1 kg/m
R55RN Height H: 80 mm | Width W: 100 mm | Length L: 168.6 mm | Mounting pitch B: 75 mm | Mounting pitch C: 75 mm | Mounting bolt M: M12x19 | Rail width W1: 53 mm | Rail height H1: 43.5 mm | C (dynamic): 146.9 kN | C0 (static): 278.0 kN | Block mass: 6.2 kg | Rail mass: 13.4 kg/m
R55RL Height H: 80 mm | Width W: 100 mm | Length L: 207.7 mm | Mounting pitch B: 75 mm | Mounting pitch C: 95 mm | Mounting bolt M: M12x19 | Rail width W1: 53 mm | Rail height H1: 43.5 mm | C (dynamic): 181.9 kN | C0 (static): 380.3 kN | Block mass: 8.1 kg | Rail mass: 13.4 kg/m
LM GuidesWON ST
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Roller Linear Motion Guide R-RN / R-RL Series, Rectangular Type

Brand WON ST·LM Guides

Available part numbers (10)

R25RN, R25RL, R30RN, R30RL, R35RN, R35RL, R45RN, R45RL, R55RN, R55RL
