WON ST Shaft Line Support ST Series (Type I, Continuous)

WON ST Shaft Line Support ST Series (Type I, Continuous)

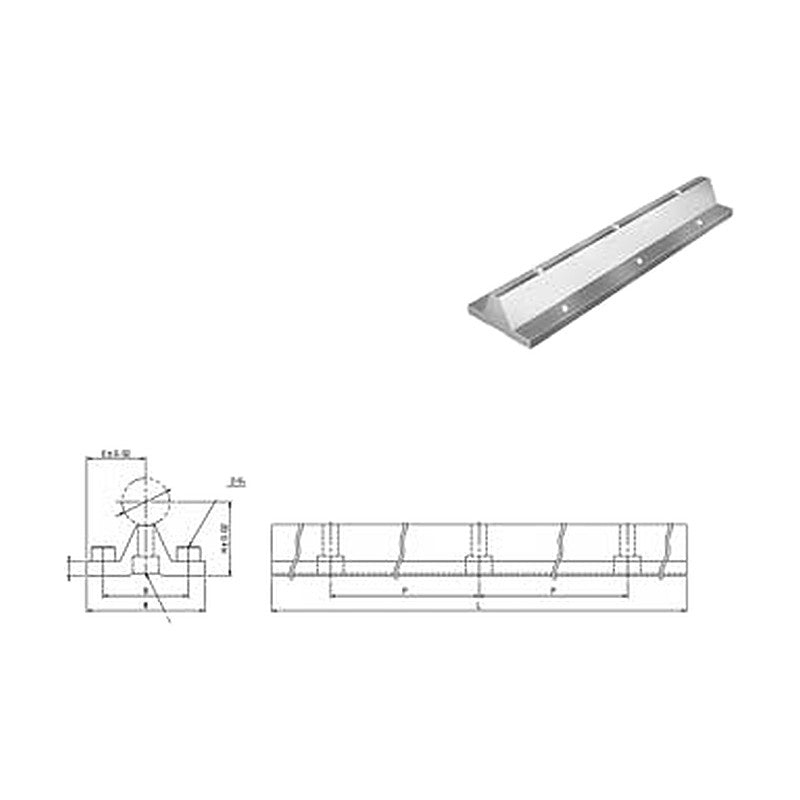

Continuous shaft line support (type I) up to 3 m long for line tapped shafts, used with SHO open-type ball bushing blocks.

Key features

  • Supports a line tapped shaft along its length against bending and vibration
  • Combined with open-type ball bushing blocks to build a slide rail unit
  • Hole pitch P can be changed on request; multiple supports can be linked

Specifications

Applicable block SHO
Max. length 3 m
ST16 Shaft diameter d: 16 mm | Shaft center height H: 25 mm | E: 20 mm | Width W: 40 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 5 mm | Mounting pitch B: 30 mm | Hole pitch P: 150 mm | Bolt S1: M5 | Bolt S2: M5
ST20 Shaft diameter d: 20 mm | Shaft center height H: 27 mm | E: 22.5 mm | Width W: 45 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 5 mm | Mounting pitch B: 30 mm | Hole pitch P: 150 mm | Bolt S1: M5 | Bolt S2: M6
ST25 Shaft diameter d: 25 mm | Shaft center height H: 33 mm | E: 27.5 mm | Width W: 55 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 6 mm | Mounting pitch B: 35 mm | Hole pitch P: 200 mm | Bolt S1: M6 | Bolt S2: M6
ST30 Shaft diameter d: 30 mm | Shaft center height H: 37 mm | E: 30 mm | Width W: 60 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 7 mm | Mounting pitch B: 40 mm | Hole pitch P: 200 mm | Bolt S1: M6 | Bolt S2: M8
ST40 Shaft diameter d: 40 mm | Shaft center height H: 48 mm | E: 37.5 mm | Width W: 75 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 9 mm | Mounting pitch B: 55 mm | Hole pitch P: 300 mm | Bolt S1: M8 | Bolt S2: M8
Shaft SupportsWON ST
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Shaft Line Support ST Series (Type I, Continuous)

Brand WON ST·Shaft Supports

Available part numbers (5)

ST16, ST20, ST25, ST30, ST40

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST16Shaft diameter d: 16 mm | Shaft center height H: 25 mm | E: 20 mm | Width W: 40 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 5 mm | Mounting pitch B: 30 mm | Hole pitch P: 150 mm | Bolt S1: M5 | Bolt S2: M5
ST20Shaft diameter d: 20 mm | Shaft center height H: 27 mm | E: 22.5 mm | Width W: 45 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 5 mm | Mounting pitch B: 30 mm | Hole pitch P: 150 mm | Bolt S1: M5 | Bolt S2: M6
ST25Shaft diameter d: 25 mm | Shaft center height H: 33 mm | E: 27.5 mm | Width W: 55 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 6 mm | Mounting pitch B: 35 mm | Hole pitch P: 200 mm | Bolt S1: M6 | Bolt S2: M6
ST30Shaft diameter d: 30 mm | Shaft center height H: 37 mm | E: 30 mm | Width W: 60 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 7 mm | Mounting pitch B: 40 mm | Hole pitch P: 200 mm | Bolt S1: M6 | Bolt S2: M8
ST40Shaft diameter d: 40 mm | Shaft center height H: 48 mm | E: 37.5 mm | Width W: 75 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 9 mm | Mounting pitch B: 55 mm | Hole pitch P: 300 mm | Bolt S1: M8 | Bolt S2: M8
