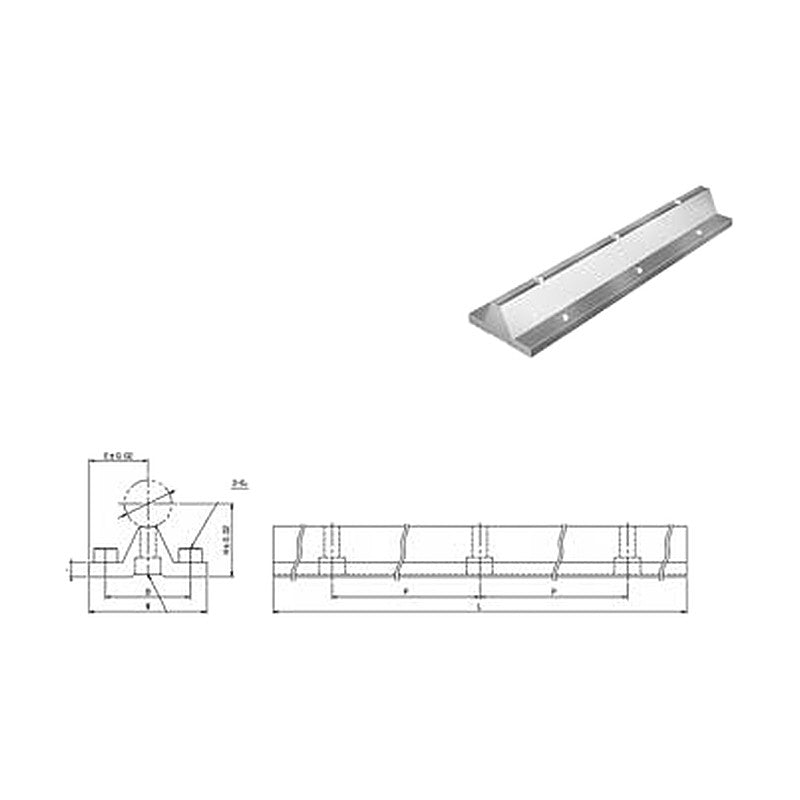

WON ST Shaft Line Support STU Series (Type II, Continuous)

WON ST Shaft Line Support STU Series (Type II, Continuous)

Continuous shaft line support (type II) up to 3 m long for line tapped shafts, used with SHO and CSO open-type ball bushing blocks.

Key features

  • Supports a line tapped shaft along its length against bending and vibration
  • Combined with open-type ball bushing blocks to build a slide rail unit
  • Hole pitch P can be changed on request; multiple supports can be linked

Specifications

Applicable block SHO, CSO
Max. length 3 m
STU16 Shaft diameter d: 16 mm | Shaft center height H: 27 mm | E: 21 mm | Width W: 42 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 6 mm | Mounting pitch B: 31 mm | Hole pitch P: 150 mm | Bolt S1: M5 | Bolt S2: M5
STU20 Shaft diameter d: 20 mm | Shaft center height H: 31 mm | E: 25 mm | Width W: 50 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 6 mm | Mounting pitch B: 36 mm | Hole pitch P: 150 mm | Bolt S1: M6 | Bolt S2: M6
STU25 Shaft diameter d: 25 mm | Shaft center height H: 36 mm | E: 26.5 mm | Width W: 53 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 7 mm | Mounting pitch B: 39 mm | Hole pitch P: 200 mm | Bolt S1: M6 | Bolt S2: M6
STU30 Shaft diameter d: 30 mm | Shaft center height H: 43 mm | E: 33.5 mm | Width W: 67 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 8 mm | Mounting pitch B: 49 mm | Hole pitch P: 200 mm | Bolt S1: M8 | Bolt S2: M8
STU40 Shaft diameter d: 40 mm | Shaft center height H: 55 mm | E: 37 mm | Width W: 74 mm | Length L: max. 3 m (supports can be linked) | Thickness T: 11 mm | Mounting pitch B: 56 mm | Hole pitch P: 300 mm | Bolt S1: M8 | Bolt S2: M8
