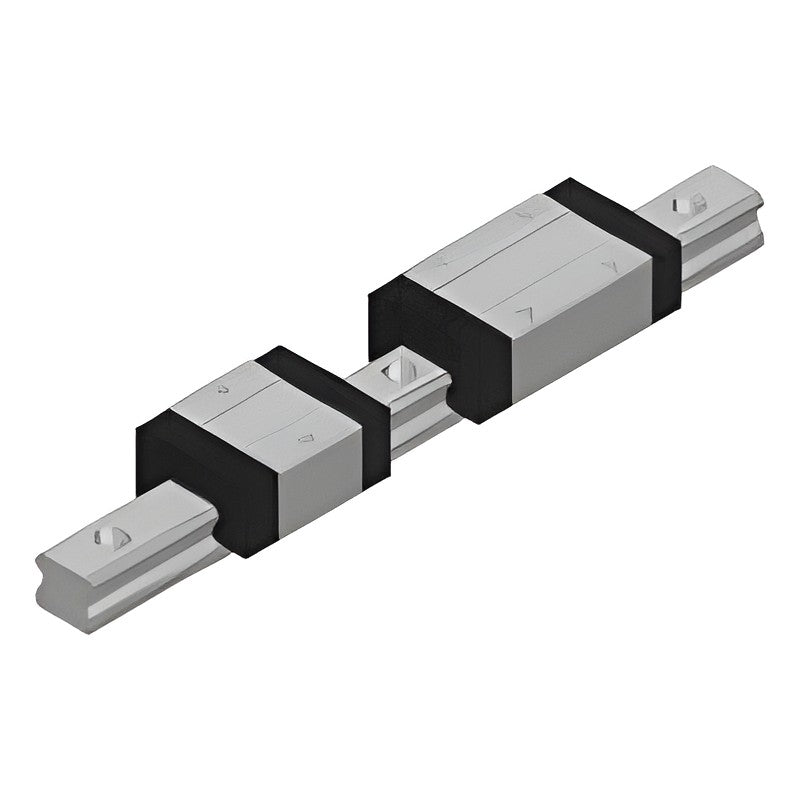

WON ST Slim Linear Motion Guide S-RC / S-RN Series, Rectangular Type

WON ST Slim Linear Motion Guide S-RC / S-RN Series, Rectangular Type

Slim linear motion guide with low sectional height, 4-direction equal load rating and a face-to-face D/F structure, suited to stable horizontal motion.

Key features

  • Slim block with minimized width and height
  • 4-row circular arc groove, 4-direction equal load (45° contact)
  • Face-to-face D/F structure for self-alignment
  • High rigidity and low noise
  • Interchangeable rails and blocks

Specifications

Material Standard or stainless (M) block and rail
Rolling element Ball (full-ball)
Block type Rectangular, short (RC) / standard (RN)
S15RC Height H: 24 mm | Width W: 34 mm | Length L: 39.8 mm | Mounting pitch B: 26 mm | Mounting bolt M: M4x6 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 9.0 kN | C0 (static): 10 kN | Block mass: 0.096 kg | Rail mass: 1.3 kg/m
S15RN Height H: 24 mm | Width W: 34 mm | Length L: 56.5 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x6 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.156 kg | Rail mass: 1.3 kg/m
S20RC Height H: 28 mm | Width W: 42 mm | Length L: 47.8 mm | Mounting pitch B: 32 mm | Mounting bolt M: M5x7 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 12.0 kN | C0 (static): 13.1 kN | Block mass: 0.153 kg | Rail mass: 2.2 kg/m
S20RN Height H: 28 mm | Width W: 42 mm | Length L: 66.8 mm | Mounting pitch B: 32 mm | Mounting pitch C: 32 mm | Mounting bolt M: M5x7 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 16.8 kN | C0 (static): 21.2 kN | Block mass: 0.246 kg | Rail mass: 2.2 kg/m
S25RC Height H: 33 mm | Width W: 48 mm | Length L: 59.4 mm | Mounting pitch B: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 19.2 kN | C0 (static): 20.4 kN | Block mass: 0.254 kg | Rail mass: 3.0 kg/m
S25RN Height H: 33 mm | Width W: 48 mm | Length L: 83.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.413 kg | Rail mass: 3.0 kg/m
LM GuidesWON ST
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Slim Linear Motion Guide S-RC / S-RN Series, Rectangular Type

Brand WON ST·LM Guides

Available part numbers (6)

S15RC, S15RN, S20RC, S20RN, S25RC, S25RN

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S15RCHeight H: 24 mm | Width W: 34 mm | Length L: 39.8 mm | Mounting pitch B: 26 mm | Mounting bolt M: M4x6 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 9.0 kN | C0 (static): 10 kN | Block mass: 0.096 kg | Rail mass: 1.3 kg/m
S15RNHeight H: 24 mm | Width W: 34 mm | Length L: 56.5 mm | Mounting pitch B: 26 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4x6 | Rail width W1: 15 mm | Rail height H1: 13 mm | C (dynamic): 12.6 kN | C0 (static): 16.2 kN | Block mass: 0.156 kg | Rail mass: 1.3 kg/m
S20RCHeight H: 28 mm | Width W: 42 mm | Length L: 47.8 mm | Mounting pitch B: 32 mm | Mounting bolt M: M5x7 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 12.0 kN | C0 (static): 13.1 kN | Block mass: 0.153 kg | Rail mass: 2.2 kg/m
S20RNHeight H: 28 mm | Width W: 42 mm | Length L: 66.8 mm | Mounting pitch B: 32 mm | Mounting pitch C: 32 mm | Mounting bolt M: M5x7 | Rail width W1: 20 mm | Rail height H1: 16.5 mm | C (dynamic): 16.8 kN | C0 (static): 21.2 kN | Block mass: 0.246 kg | Rail mass: 2.2 kg/m
S25RCHeight H: 33 mm | Width W: 48 mm | Length L: 59.4 mm | Mounting pitch B: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 19.2 kN | C0 (static): 20.4 kN | Block mass: 0.254 kg | Rail mass: 3.0 kg/m
S25RNHeight H: 33 mm | Width W: 48 mm | Length L: 83.2 mm | Mounting pitch B: 35 mm | Mounting pitch C: 35 mm | Mounting bolt M: M6x8 | Rail width W1: 23 mm | Rail height H1: 20 mm | C (dynamic): 27.0 kN | C0 (static): 33.1 kN | Block mass: 0.413 kg | Rail mass: 3.0 kg/m
