WON ST Super Ball Bushing Block CS-A Series, Europe Series Clearance Adjustable Type

WON ST Super Ball Bushing Block CS-A Series, Europe Series Clearance Adjustable Type

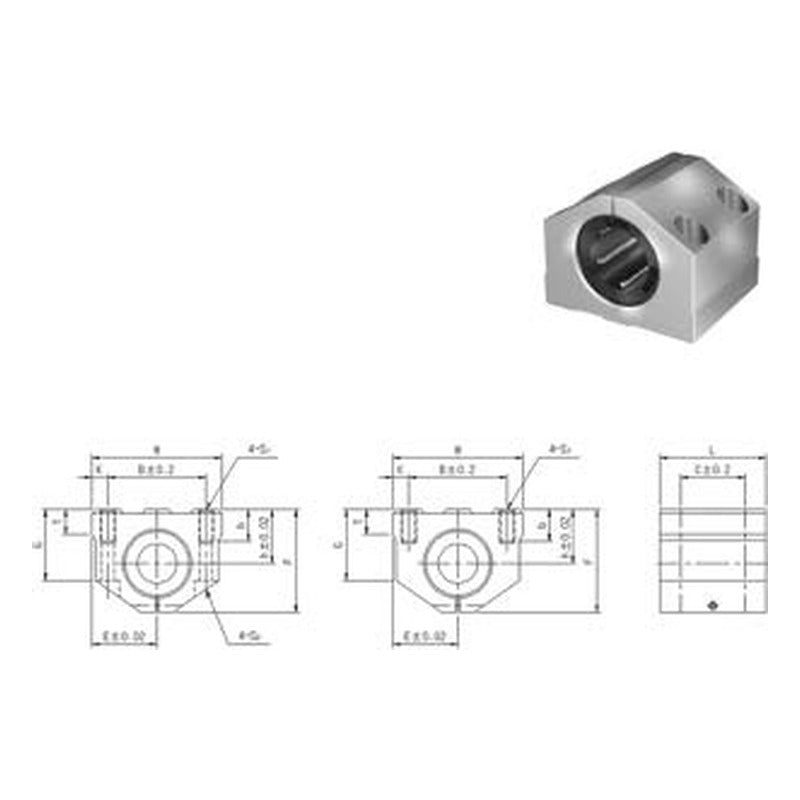

Closed super ball bushing block of the Europe series with clearance adjustment, fitted with one SBE series bushing, in standard and B type.

Key features

  • Aluminum housing with built-in SBE/SBEO super ball bushing
  • Self-aligning 0.5 deg
  • Standard type mounted from the top; B type mounted from below with tapped holes
  • Radial clearance and preload adjustable

Specifications

Bushing 1 pc SBE series
Type Closed, clearance adjustable
CS16AUU Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 192 g
CS16AUU-B Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Mounting: B type, tapped M5 from below | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 192 g
CS20AUU Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 322 g
CS20AUU-B Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Mounting: B type, tapped M6 from below | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 322 g
CS25AUU Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 632 g
CS25AUU-B Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Mounting: B type, tapped M8 from below | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 632 g
CS30AUU Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 965 g
CS30AUU-B Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Mounting: B type, tapped M8 from below | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 965 g
CS40AUU Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 1736 g
CS40AUU-B Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Mounting: B type, tapped M10 from below | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 1736 g
CS50AUU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 2910 g
CS50AUU-B Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Mounting: B type, tapped M12 from below | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 2910 g
