WON ST Super Ball Bushing Block CS Series, Europe Series Closed Type

WON ST Super Ball Bushing Block CS Series, Europe Series Closed Type

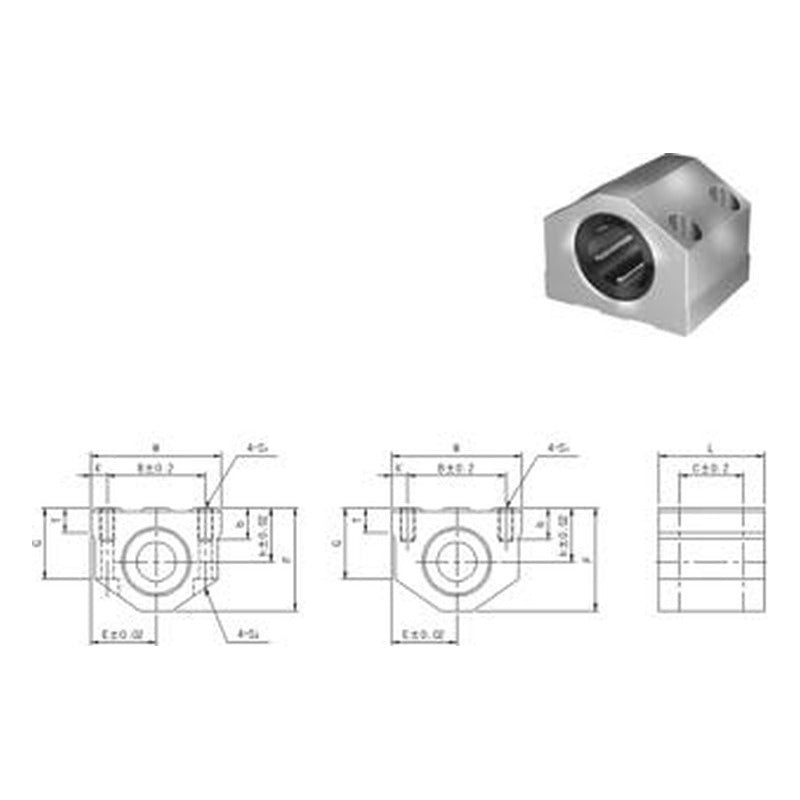

Closed-type super ball bushing block of the Europe series fitted with one SBE series bushing, in standard and B (bottom-mount) type.

Key features

  • Aluminum housing with built-in SBE/SBEO super ball bushing
  • Self-aligning 0.5 deg
  • Standard type mounted from the top; B type mounted from below with tapped holes

Specifications

Bushing 1 pc SBE series
Type Closed
CS16UU Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 204 g
CS16UU-B Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Mounting: B type, tapped M5 from below | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 204 g
CS20UU Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 340 g
CS20UU-B Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Mounting: B type, tapped M6 from below | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 340 g
CS25UU Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 636 g
CS25UU-B Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Mounting: B type, tapped M8 from below | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 636 g
CS30UU Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 970 g
CS30UU-B Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Mounting: B type, tapped M8 from below | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 970 g
CS40UU Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 1740 g
CS40UU-B Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Mounting: B type, tapped M10 from below | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 1740 g
CS50UU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 2922 g
CS50UU-B Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Mounting: B type, tapped M12 from below | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 2922 g
