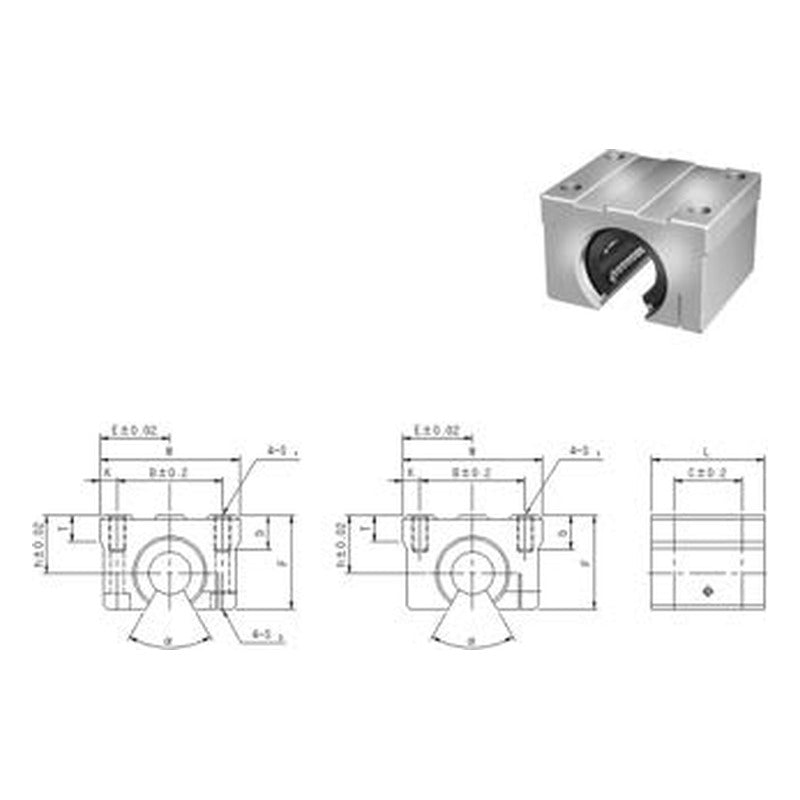

WON ST Super Ball Bushing Block CSO-A Series, Europe Series Open Clearance Adjustable Type

WON ST Super Ball Bushing Block CSO-A Series, Europe Series Open Clearance Adjustable Type

Open-type super ball bushing block of the Europe series with clearance adjustment, fitted with one SBEO series bushing.

Key features

  • Aluminum housing with built-in SBE/SBEO super ball bushing
  • Self-aligning 0.5 deg
  • Standard type mounted from the top; B type mounted from below with tapped holes
  • Radial clearance and preload adjustable

Specifications

Bushing 1 pc SBEO series
Type Open, clearance adjustable
CSO16AUU Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Opening angle: 68 deg | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 158 g
CSO16AUU-B Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Opening angle: 68 deg | Mounting: B type, tapped M5 from below | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 158 g
CSO20AUU Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Opening angle: 55 deg | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 277 g
CSO20AUU-B Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Opening angle: 55 deg | Mounting: B type, tapped M6 from below | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 277 g
CSO25AUU Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 548 g
CSO25AUU-B Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 548 g
CSO30AUU Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 840 g
CSO30AUU-B Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 840 g
CSO40AUU Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Opening angle: 56 deg | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 1510 g
CSO40AUU-B Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Opening angle: 56 deg | Mounting: B type, tapped M10 from below | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 1510 g
CSO50AUU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Opening angle: 54 deg | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 2535 g
CSO50AUU-B Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Opening angle: 54 deg | Mounting: B type, tapped M12 from below | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 2535 g
Linear Bushing BlocksWON ST
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Super Ball Bushing Block CSO-A Series, Europe Series Open Clearance Adjustable Type

Brand WON ST·Linear Bushing Blocks

Available part numbers (12)

CSO16AUU, CSO16AUU-B, CSO20AUU, CSO20AUU-B, CSO25AUU, CSO25AUU-B, CSO30AUU, CSO30AUU-B, CSO40AUU, CSO40AUU-B + 2 more — see full table ↓

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSO16AUUShaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Opening angle: 68 deg | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 158 g
CSO16AUU-BShaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 43 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 26 mm | Opening angle: 68 deg | Mounting: B type, tapped M5 from below | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 158 g
CSO20AUUShaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Opening angle: 55 deg | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 277 g
CSO20AUU-BShaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 54 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 32 mm | Opening angle: 55 deg | Mounting: B type, tapped M6 from below | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 277 g
CSO25AUUShaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 548 g
CSO25AUU-BShaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 67 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 40 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 548 g
CSO30AUUShaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 840 g
CSO30AUU-BShaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 79 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 45 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 840 g
CSO40AUUShaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Opening angle: 56 deg | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 1510 g
CSO40AUU-BShaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 91 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 58 mm | Opening angle: 56 deg | Mounting: B type, tapped M10 from below | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 1510 g
CSO50AUUShaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Opening angle: 54 deg | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 2535 g
CSO50AUU-BShaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 113 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 50 mm | Opening angle: 54 deg | Mounting: B type, tapped M12 from below | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 2535 g
