WON ST Super Ball Bushing Block CSOW Series, Europe Series Double Open Type

WON ST Super Ball Bushing Block CSOW Series, Europe Series Double Open Type

Double-length open super ball bushing block of the Europe series fitted with two SBEO series bushings.

Key features

  • Aluminum housing with built-in SBE/SBEO super ball bushing
  • Self-aligning 0.5 deg
  • Standard type mounted from the top; B type mounted from below with tapped holes

Specifications

Bushing 2 pcs SBEO series
Type Double open

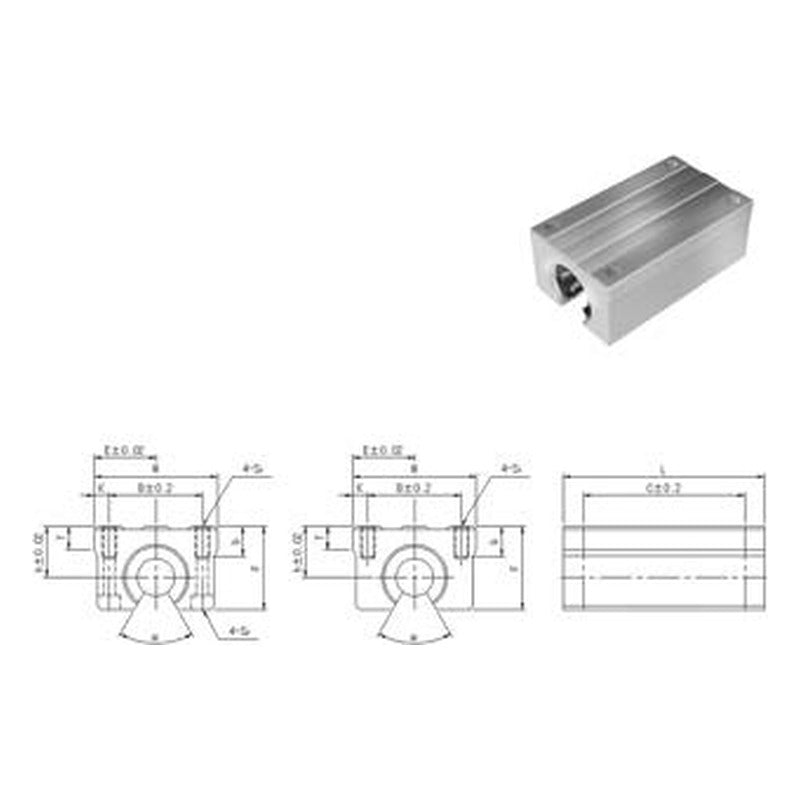

CSOW16UU Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 84 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 64 mm | Opening angle: 68 deg | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 2110 N | C0 (static): 1820 N | Mass: 338 g
CSOW16UU-B Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 84 mm | Height F: 35 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 64 mm | Opening angle: 68 deg | Mounting: B type, tapped M5 from below | C (dynamic): 2110 N | C0 (static): 1820 N | Mass: 338 g
CSOW20UU Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 104 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 76 mm | Opening angle: 55 deg | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 3660 N | C0 (static): 2890 N | Mass: 552 g
CSOW20UU-B Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 104 mm | Height F: 42 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 76 mm | Opening angle: 55 deg | Mounting: B type, tapped M6 from below | C (dynamic): 3660 N | C0 (static): 2890 N | Mass: 552 g
CSOW25UU Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 130 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 94 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 6870 N | C0 (static): 5640 N | Mass: 1092 g
CSOW25UU-B Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 130 mm | Height F: 51 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 94 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 6870 N | C0 (static): 5640 N | Mass: 1092 g
CSOW30UU Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 152 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 106 mm | Opening angle: 57 deg | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 8060 N | C0 (static): 6920 N | Mass: 1656 g
CSOW30UU-B Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 152 mm | Height F: 60 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 106 mm | Opening angle: 57 deg | Mounting: B type, tapped M8 from below | C (dynamic): 8060 N | C0 (static): 6920 N | Mass: 1656 g
CSOW40UU Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 176 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 124 mm | Opening angle: 56 deg | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 14430 N | C0 (static): 11250 N | Mass: 3062 g
CSOW40UU-B Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 176 mm | Height F: 77 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 124 mm | Opening angle: 56 deg | Mounting: B type, tapped M10 from below | C (dynamic): 14430 N | C0 (static): 11250 N | Mass: 3062 g
CSOW50UU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 224 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 160 mm | Opening angle: 54 deg | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 20840 N | C0 (static): 16350 N | Mass: 5042 g
CSOW50UU-B Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 224 mm | Height F: 88 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 160 mm | Opening angle: 54 deg | Mounting: B type, tapped M12 from below | C (dynamic): 20840 N | C0 (static): 16350 N | Mass: 5042 g
Linear Bushing BlocksWON ST
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
