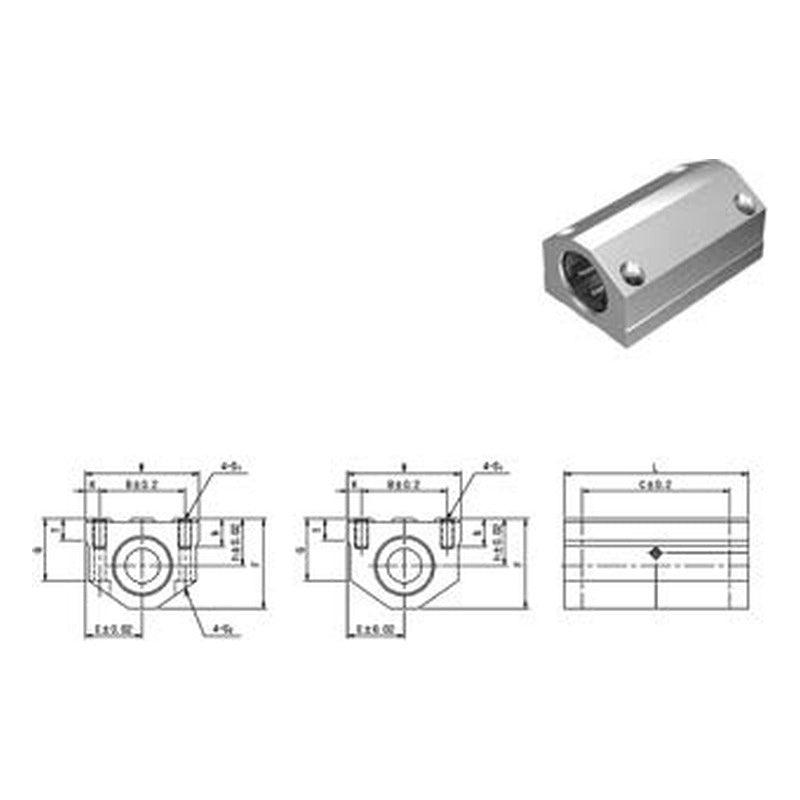

WON ST Super Ball Bushing Block CSW Series, Europe Series Double Closed Type

WON ST Super Ball Bushing Block CSW Series, Europe Series Double Closed Type

Double-length closed super ball bushing block of the Europe series fitted with two SBE series bushings, in standard and B type.

Key features

  • Aluminum housing with built-in SBE/SBEO super ball bushing
  • Self-aligning 0.5 deg
  • Standard type mounted from the top; B type mounted from below with tapped holes

Specifications

Bushing 2 pcs SBE series
Type Double closed
CSW16UU Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 84 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 64 mm | Mounting: Through hole for M6 bolt (from top) | C (dynamic): 1810 N | C0 (static): 1420 N | Mass: 380 g
CSW16UU-B Shaft diameter d: 16 mm | Center height h: 22 mm | Width W: 53 mm | Length L: 84 mm | Height F: 42 mm | Bushing OD D: 26 mm | Mounting pitch B x C: 40 x 64 mm | Mounting: B type, tapped M5 from below | C (dynamic): 1810 N | C0 (static): 1420 N | Mass: 380 g
CSW20UU Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 104 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 76 mm | Mounting: Through hole for M8 bolt (from top) | C (dynamic): 3615 N | C0 (static): 2800 N | Mass: 640 g
CSW20UU-B Shaft diameter d: 20 mm | Center height h: 25 mm | Width W: 60 mm | Length L: 104 mm | Height F: 50 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 45 x 76 mm | Mounting: B type, tapped M6 from below | C (dynamic): 3615 N | C0 (static): 2800 N | Mass: 640 g
CSW25UU Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 130 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 94 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 6790 N | C0 (static): 5480 N | Mass: 1248 g
CSW25UU-B Shaft diameter d: 25 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 130 mm | Height F: 60 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 60 x 94 mm | Mounting: B type, tapped M8 from below | C (dynamic): 6790 N | C0 (static): 5480 N | Mass: 1248 g
CSW30UU Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 152 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 106 mm | Mounting: Through hole for M10 bolt (from top) | C (dynamic): 7965 N | C0 (static): 6730 N | Mass: 1890 g
CSW30UU-B Shaft diameter d: 30 mm | Center height h: 35 mm | Width W: 87 mm | Length L: 152 mm | Height F: 70 mm | Bushing OD D: 47 mm | Mounting pitch B x C: 68 x 106 mm | Mounting: B type, tapped M8 from below | C (dynamic): 7965 N | C0 (static): 6730 N | Mass: 1890 g
CSW40UU Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 176 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 124 mm | Mounting: Through hole for M12 bolt (from top) | C (dynamic): 14255 N | C0 (static): 10920 N | Mass: 3404 g
CSW40UU-B Shaft diameter d: 40 mm | Center height h: 45 mm | Width W: 108 mm | Length L: 176 mm | Height F: 90 mm | Bushing OD D: 62 mm | Mounting pitch B x C: 86 x 124 mm | Mounting: B type, tapped M10 from below | C (dynamic): 14255 N | C0 (static): 10920 N | Mass: 3404 g
CSW50UU Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 224 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 160 mm | Mounting: Through hole for M16 bolt (from top) | C (dynamic): 20580 N | C0 (static): 15880 N | Mass: 5856 g
CSW50UU-B Shaft diameter d: 50 mm | Center height h: 50 mm | Width W: 132 mm | Length L: 224 mm | Height F: 105 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 108 x 160 mm | Mounting: B type, tapped M12 from below | C (dynamic): 20580 N | C0 (static): 15880 N | Mass: 5856 g
