WON ST Super Ball Bushing Block SH Series, Asia Series Closed Type

WON ST Super Ball Bushing Block SH Series, Asia Series Closed Type

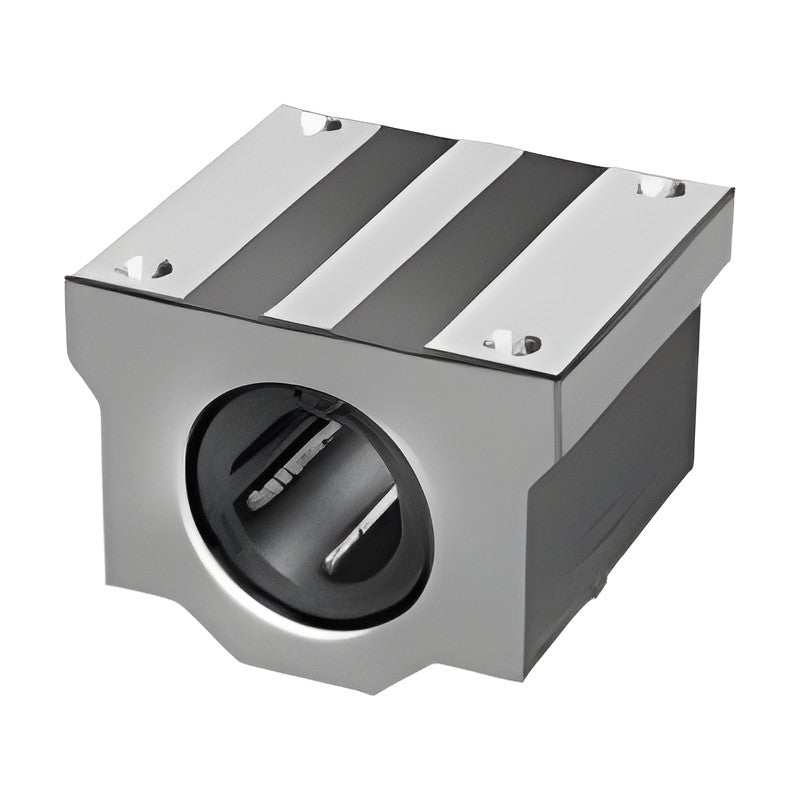

Closed-type super ball bushing block (pillow block) of the Asia series fitted with one SB series super ball bushing.

Key features

  • Aluminum housing with built-in super ball bushing
  • Self-aligning 0.5 deg
  • Mount from the top with four bolts

Specifications

Bushing 1 pc SB series
Type Closed
SH16UU Shaft diameter d: 16 mm | Center height h: 19 mm | Width W: 50 mm | Length L: 44 mm | Height F: 38.5 mm | Bushing OD D: 28 mm | Mounting pitch B x C: 36 x 34 mm | Mounting bolt S1: M5 | Bolt hole S2: 4.3 mm | C (dynamic): 1240 N | C0 (static): 800 N | Mass: 148 g
SH20UU Shaft diameter d: 20 mm | Center height h: 21 mm | Width W: 54 mm | Length L: 50 mm | Height F: 41 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 40 x 40 mm | Mounting bolt S1: M6 | Bolt hole S2: 5.2 mm | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 198 g
SH25UU Shaft diameter d: 25 mm | Center height h: 26 mm | Width W: 76 mm | Length L: 67 mm | Height F: 51.5 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 54 x 50 mm | Mounting bolt S1: M8 | Bolt hole S2: 7 mm | C (dynamic): 3980 N | C0 (static): 2465 N | Mass: 472 g
SH30UU Shaft diameter d: 30 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 72 mm | Height F: 59.5 mm | Bushing OD D: 45 mm | Mounting pitch B x C: 58 x 58 mm | Mounting bolt S1: M8 | Bolt hole S2: 7 mm | C (dynamic): 4420 N | C0 (static): 2800 N | Mass: 589 g
SH40UU Shaft diameter d: 40 mm | Center height h: 40 mm | Width W: 102 mm | Length L: 90 mm | Height F: 78 mm | Bushing OD D: 60 mm | Mounting pitch B x C: 80 x 60 mm | Mounting bolt S1: M10 | Bolt hole S2: 8.7 mm | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 1225 g
SH50UU Shaft diameter d: 50 mm | Center height h: 52 mm | Width W: 122 mm | Length L: 110 mm | Height F: 102 mm | Bushing OD D: 75 mm | Mounting pitch B x C: 100 x 80 mm | Mounting bolt S1: M10 | Bolt hole S2: 8.7 mm | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 2420 g
