WON ST Super Ball Bushing Block SHO Series, Asia Series Open Type

WON ST Super Ball Bushing Block SHO Series, Asia Series Open Type

Open-type super ball bushing block of the Asia series fitted with one SBO series bushing, for use on supported shafts with ST/STU shaft line supports.

Key features

  • Aluminum housing with built-in super ball bushing
  • Self-aligning 0.5 deg
  • Mount from the top with four bolts

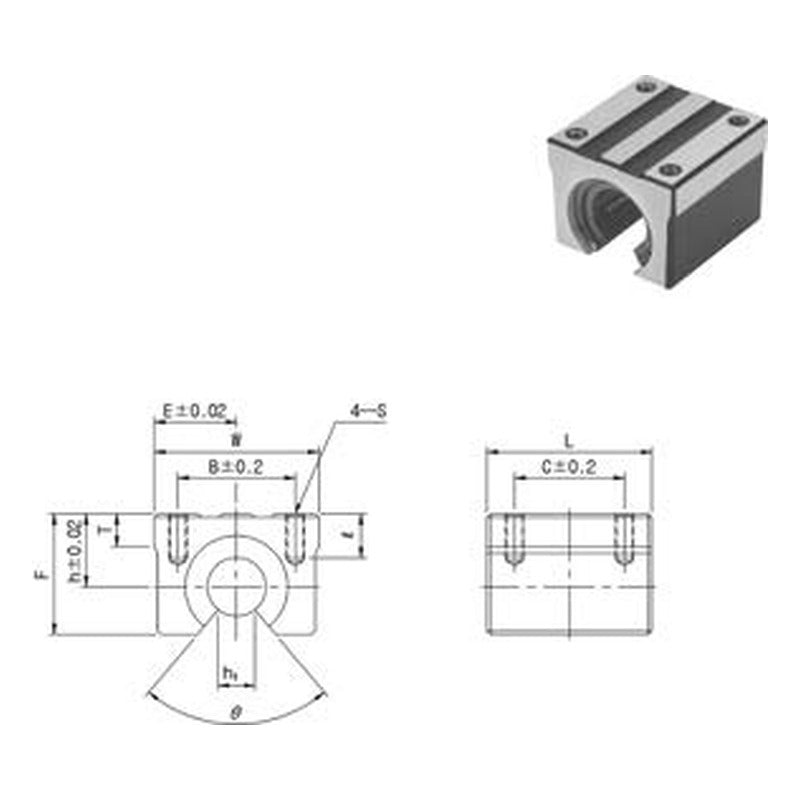

Specifications

Bushing 1 pc SBO series
Type Open
SHO16UU Shaft diameter d: 16 mm | Center height h: 20 mm | Width W: 45 mm | Length L: 45 mm | Bushing OD D: 28 mm | Opening angle: 60 deg | Mounting bolt: M5 | C (dynamic): 1410 N | C0 (static): 960 N | Mass: 124 g
SHO20UU Shaft diameter d: 20 mm | Center height h: 23 mm | Width W: 48 mm | Length L: 50 mm | Bushing OD D: 32 mm | Opening angle: 60 deg | Mounting bolt: M6 | C (dynamic): 2300 N | C0 (static): 1430 N | Mass: 178 g
SHO25UU Shaft diameter d: 25 mm | Center height h: 27 mm | Width W: 60 mm | Length L: 65 mm | Bushing OD D: 40 mm | Opening angle: 60 deg | Mounting bolt: M6 | C (dynamic): 4030 N | C0 (static): 2540 N | Mass: 352 g
SHO30UU Shaft diameter d: 30 mm | Center height h: 33 mm | Width W: 70 mm | Length L: 70 mm | Bushing OD D: 45 mm | Opening angle: 60 deg | Mounting bolt: M8 | C (dynamic): 4475 N | C0 (static): 2890 N | Mass: 507 g
SHO40UU Shaft diameter d: 40 mm | Center height h: 42 mm | Width W: 90 mm | Length L: 90 mm | Bushing OD D: 60 mm | Opening angle: 60 deg | Mounting bolt: M10 | C (dynamic): 9100 N | C0 (static): 5625 N | Mass: 1055 g
Linear Bushing BlocksWON ST
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Super Ball Bushing Block SHO Series, Asia Series Open Type

Brand WON ST·Linear Bushing Blocks

Available part numbers (5)

SHO16UU, SHO20UU, SHO25UU, SHO30UU, SHO40UU

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHO16UUShaft diameter d: 16 mm | Center height h: 20 mm | Width W: 45 mm | Length L: 45 mm | Bushing OD D: 28 mm | Opening angle: 60 deg | Mounting bolt: M5 | C (dynamic): 1410 N | C0 (static): 960 N | Mass: 124 g
SHO20UUShaft diameter d: 20 mm | Center height h: 23 mm | Width W: 48 mm | Length L: 50 mm | Bushing OD D: 32 mm | Opening angle: 60 deg | Mounting bolt: M6 | C (dynamic): 2300 N | C0 (static): 1430 N | Mass: 178 g
SHO25UUShaft diameter d: 25 mm | Center height h: 27 mm | Width W: 60 mm | Length L: 65 mm | Bushing OD D: 40 mm | Opening angle: 60 deg | Mounting bolt: M6 | C (dynamic): 4030 N | C0 (static): 2540 N | Mass: 352 g
SHO30UUShaft diameter d: 30 mm | Center height h: 33 mm | Width W: 70 mm | Length L: 70 mm | Bushing OD D: 45 mm | Opening angle: 60 deg | Mounting bolt: M8 | C (dynamic): 4475 N | C0 (static): 2890 N | Mass: 507 g
SHO40UUShaft diameter d: 40 mm | Center height h: 42 mm | Width W: 90 mm | Length L: 90 mm | Bushing OD D: 60 mm | Opening angle: 60 deg | Mounting bolt: M10 | C (dynamic): 9100 N | C0 (static): 5625 N | Mass: 1055 g
