WON ST Super Ball Bushing Block SHW Series, Asia Series Double Closed Type

WON ST Super Ball Bushing Block SHW Series, Asia Series Double Closed Type

Double-length closed super ball bushing block of the Asia series fitted with two SB series super ball bushings.

Key features

  • Aluminum housing with built-in super ball bushing
  • Self-aligning 0.5 deg
  • Mount from the top with four bolts

Specifications

Bushing 2 pcs SB series
Type Double closed

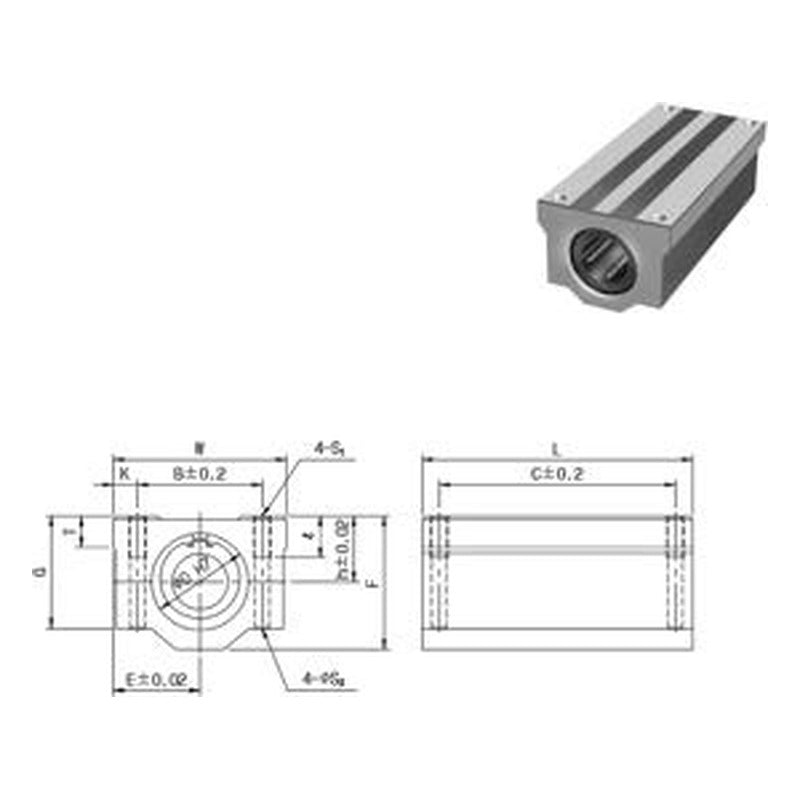

SHW16UU Shaft diameter d: 16 mm | Center height h: 19 mm | Width W: 50 mm | Length L: 85 mm | Height F: 38.5 mm | Bushing OD D: 28 mm | Mounting pitch B x C: 36 x 60 mm | Mounting bolt S1: M5 | Bolt hole S2: 4.3 mm | C (dynamic): 1965 N | C0 (static): 1600 N | Mass: 308 g
SHW20UU Shaft diameter d: 20 mm | Center height h: 21 mm | Width W: 54 mm | Length L: 96 mm | Height F: 41 mm | Bushing OD D: 32 mm | Mounting pitch B x C: 40 x 70 mm | Mounting bolt S1: M6 | Bolt hole S2: 5.2 mm | C (dynamic): 3615 N | C0 (static): 2800 N | Mass: 422 g
SHW25UU Shaft diameter d: 25 mm | Center height h: 26 mm | Width W: 76 mm | Length L: 130 mm | Height F: 51.5 mm | Bushing OD D: 40 mm | Mounting pitch B x C: 54 x 100 mm | Mounting bolt S1: M8 | Bolt hole S2: 7 mm | C (dynamic): 6315 N | C0 (static): 4930 N | Mass: 972 g
SHW30UU Shaft diameter d: 30 mm | Center height h: 30 mm | Width W: 78 mm | Length L: 140 mm | Height F: 59.5 mm | Bushing OD D: 45 mm | Mounting pitch B x C: 58 x 110 mm | Mounting bolt S1: M8 | Bolt hole S2: 7 mm | C (dynamic): 7015 N | C0 (static): 5600 N | Mass: 1180 g
SHW40UU Shaft diameter d: 40 mm | Center height h: 40 mm | Width W: 102 mm | Length L: 175 mm | Height F: 78 mm | Bushing OD D: 60 mm | Mounting pitch B x C: 80 x 140 mm | Mounting bolt S1: M10 | Bolt hole S2: 8.7 mm | C (dynamic): 14255 N | C0 (static): 10920 N | Mass: 2461 g
