WON ST Super Ball Bushing SB Series, Asia Series Closed Type

WON ST Super Ball Bushing SB Series, Asia Series Closed Type

Closed-type self-aligning super ball bushing of the Asia series, available without seal, with one seal or with seals on both sides.

Key features

  • Self-aligning 0.5 deg for even ball load distribution
  • About 3 times the dynamic load rating of a general ball bushing of the same size
  • Light, wear-resistant polyamide outer sleeve and retainer for smooth, low-noise running
  • Precision-ground hardened steel load plates

Specifications

Series Asia
Type Closed

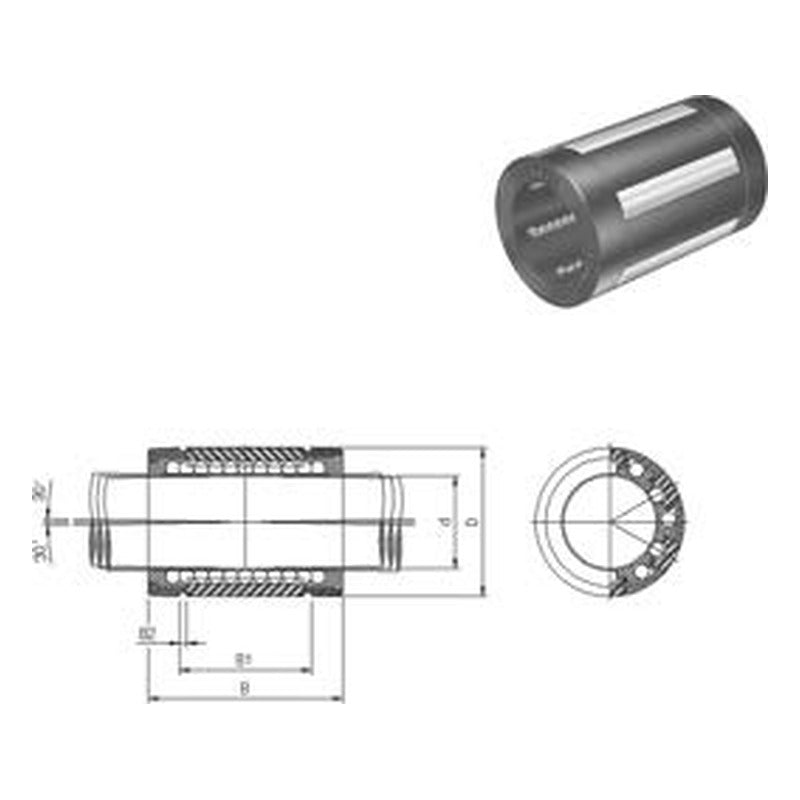

SB16 Seal: No seal | Shaft diameter d: 16 mm | Outer diameter D: 28 mm | Length B: 37 mm | B1: 26.5 mm | B2: 1.6 mm | D1: 27 mm | Ball rows: 5 | C (dynamic): 1240 N | C0 (static): 800 N | Mass: 34 g
SB16U Seal: Seal on one side | Shaft diameter d: 16 mm | Outer diameter D: 28 mm | Length B: 37 mm | B1: 26.5 mm | B2: 1.6 mm | D1: 27 mm | Ball rows: 5 | C (dynamic): 1240 N | C0 (static): 800 N | Mass: 34 g
SB16UU Seal: Seals on both sides | Shaft diameter d: 16 mm | Outer diameter D: 28 mm | Length B: 37 mm | B1: 26.5 mm | B2: 1.6 mm | D1: 27 mm | Ball rows: 5 | C (dynamic): 1240 N | C0 (static): 800 N | Mass: 34 g
SB20 Seal: No seal | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 42 mm | B1: 30.5 mm | B2: 1.6 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 58 g
SB20U Seal: Seal on one side | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 42 mm | B1: 30.5 mm | B2: 1.6 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 58 g
SB20UU Seal: Seals on both sides | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 42 mm | B1: 30.5 mm | B2: 1.6 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 58 g
SB25 Seal: No seal | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 59 mm | B1: 44 mm | B2: 1.9 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 3980 N | C0 (static): 2465 N | Mass: 120 g
SB25U Seal: Seal on one side | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 59 mm | B1: 44 mm | B2: 1.9 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 3980 N | C0 (static): 2465 N | Mass: 120 g
SB25UU Seal: Seals on both sides | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 59 mm | B1: 44 mm | B2: 1.9 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 3980 N | C0 (static): 2465 N | Mass: 120 g
SB30 Seal: No seal | Shaft diameter d: 30 mm | Outer diameter D: 45 mm | Length B: 64 mm | B1: 48 mm | B2: 1.7 mm | D1: 43 mm | Ball rows: 6 | C (dynamic): 4420 N | C0 (static): 2800 N | Mass: 148 g
SB30U Seal: Seal on one side | Shaft diameter d: 30 mm | Outer diameter D: 45 mm | Length B: 64 mm | B1: 48 mm | B2: 1.7 mm | D1: 43 mm | Ball rows: 6 | C (dynamic): 4420 N | C0 (static): 2800 N | Mass: 148 g
SB30UU Seal: Seals on both sides | Shaft diameter d: 30 mm | Outer diameter D: 45 mm | Length B: 64 mm | B1: 48 mm | B2: 1.7 mm | D1: 43 mm | Ball rows: 6 | C (dynamic): 4420 N | C0 (static): 2800 N | Mass: 148 g
SB40 Seal: No seal | Shaft diameter d: 40 mm | Outer diameter D: 60 mm | Length B: 80 mm | B1: 60.9 mm | B2: 2.05 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 314 g
SB40U Seal: Seal on one side | Shaft diameter d: 40 mm | Outer diameter D: 60 mm | Length B: 80 mm | B1: 60.9 mm | B2: 2.05 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 314 g
SB40UU Seal: Seals on both sides | Shaft diameter d: 40 mm | Outer diameter D: 60 mm | Length B: 80 mm | B1: 60.9 mm | B2: 2.05 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 314 g
