WON ST Super Ball Bushing SBE Series, Europe Series Closed Type

WON ST Super Ball Bushing SBE Series, Europe Series Closed Type

Closed-type self-aligning super ball bushing of the Europe series, available without seal, with one seal or with seals on both sides.

Key features

  • Self-aligning 0.5 deg for even ball load distribution
  • About 3 times the dynamic load rating of a general ball bushing of the same size
  • Light, wear-resistant polyamide outer sleeve and retainer for smooth, low-noise running
  • Precision-ground hardened steel load plates

Specifications

Series Europe
Type Closed

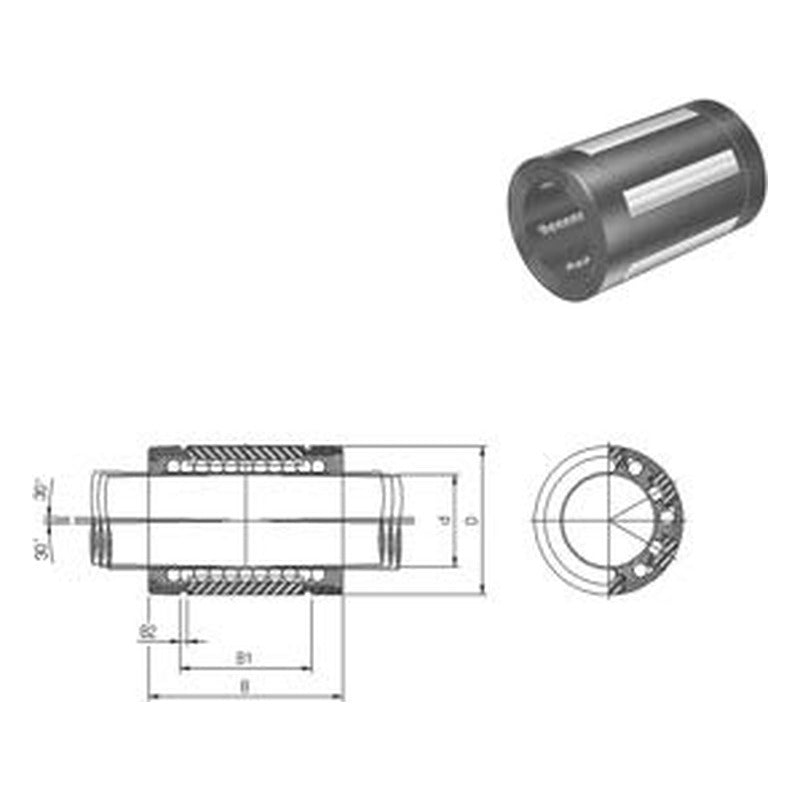

SBE16 Seal: No seal | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | D1: 24.5 mm | Ball rows: 5 | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 26 g
SBE16U Seal: Seal on one side | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | D1: 24.5 mm | Ball rows: 5 | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 26 g
SBE16UU Seal: Seals on both sides | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | D1: 24.5 mm | Ball rows: 5 | C (dynamic): 1140 N | C0 (static): 710 N | Mass: 26 g
SBE20 Seal: No seal | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 60 g
SBE20U Seal: Seal on one side | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 60 g
SBE20UU Seal: Seals on both sides | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | D1: 30.5 mm | Ball rows: 6 | C (dynamic): 2280 N | C0 (static): 1400 N | Mass: 60 g
SBE25 Seal: No seal | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 120 g
SBE25U Seal: Seal on one side | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 120 g
SBE25UU Seal: Seals on both sides | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | D1: 38.5 mm | Ball rows: 6 | C (dynamic): 4280 N | C0 (static): 2740 N | Mass: 120 g
SBE30 Seal: No seal | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | D1: 46.4 mm | Ball rows: 6 | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 184 g
SBE30U Seal: Seal on one side | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | D1: 46.4 mm | Ball rows: 6 | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 184 g
SBE30UU Seal: Seals on both sides | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | D1: 46.4 mm | Ball rows: 6 | C (dynamic): 5020 N | C0 (static): 3365 N | Mass: 184 g
SBE40 Seal: No seal | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 342 g
SBE40U Seal: Seal on one side | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 342 g
SBE40UU Seal: Seals on both sides | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | D1: 58 mm | Ball rows: 6 | C (dynamic): 8980 N | C0 (static): 5460 N | Mass: 342 g
SBE50 Seal: No seal | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | D1: 71 mm | Ball rows: 6 | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 586 g
SBE50U Seal: Seal on one side | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | D1: 71 mm | Ball rows: 6 | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 586 g
SBE50UU Seal: Seals on both sides | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | D1: 71 mm | Ball rows: 6 | C (dynamic): 12965 N | C0 (static): 7940 N | Mass: 586 g
