WON ST Super Ball Bushing SBEO Series, Europe Series Open Type

WON ST Super Ball Bushing SBEO Series, Europe Series Open Type

Open-type self-aligning super ball bushing of the Europe series for use with supported shafts.

Key features

  • Self-aligning 0.5 deg for even ball load distribution
  • About 3 times the dynamic load rating of a general ball bushing of the same size
  • Light, wear-resistant polyamide outer sleeve and retainer for smooth, low-noise running
  • Precision-ground hardened steel load plates

Specifications

Series Europe
Type Open

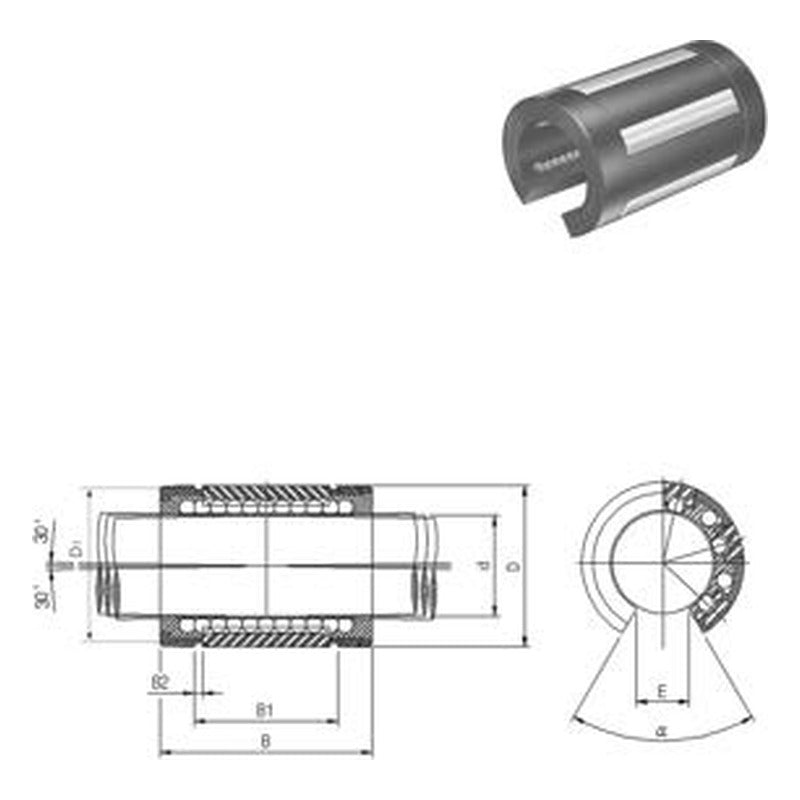

SBEO16 Seal: No seal | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | Opening E: 9 mm | Opening angle: 68 deg | Ball rows: 4 | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 20 g
SBEO16U Seal: Seal on one side | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | Opening E: 9 mm | Opening angle: 68 deg | Ball rows: 4 | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 20 g
SBEO16UU Seal: Seals on both sides | Shaft diameter d: 16 mm | Outer diameter D: 26 mm | Length B: 36 mm | B1: 25 mm | B2: 1.4 mm | Opening E: 9 mm | Opening angle: 68 deg | Ball rows: 4 | C (dynamic): 1330 N | C0 (static): 910 N | Mass: 20 g
SBEO20 Seal: No seal | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | Opening E: 9 mm | Opening angle: 55 deg | Ball rows: 5 | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 50 g
SBEO20U Seal: Seal on one side | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | Opening E: 9 mm | Opening angle: 55 deg | Ball rows: 5 | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 50 g
SBEO20UU Seal: Seals on both sides | Shaft diameter d: 20 mm | Outer diameter D: 32 mm | Length B: 45 mm | B1: 31.5 mm | B2: 1.65 mm | Opening E: 9 mm | Opening angle: 55 deg | Ball rows: 5 | C (dynamic): 2310 N | C0 (static): 1445 N | Mass: 50 g
SBEO25 Seal: No seal | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | Opening E: 11.5 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 100 g
SBEO25U Seal: Seal on one side | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | Opening E: 11.5 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 100 g
SBEO25UU Seal: Seals on both sides | Shaft diameter d: 25 mm | Outer diameter D: 40 mm | Length B: 58 mm | B1: 44 mm | B2: 2 mm | Opening E: 11.5 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 4330 N | C0 (static): 2820 N | Mass: 100 g
SBEO30 Seal: No seal | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | Opening E: 14 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 154 g
SBEO30U Seal: Seal on one side | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | Opening E: 14 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 154 g
SBEO30UU Seal: Seals on both sides | Shaft diameter d: 30 mm | Outer diameter D: 47 mm | Length B: 68 mm | B1: 52 mm | B2: 1.6 mm | Opening E: 14 mm | Opening angle: 57 deg | Ball rows: 5 | C (dynamic): 5080 N | C0 (static): 3460 N | Mass: 154 g
SBEO40 Seal: No seal | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | Opening E: 19.5 mm | Opening angle: 56 deg | Ball rows: 5 | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 286 g
SBEO40U Seal: Seal on one side | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | Opening E: 19.5 mm | Opening angle: 56 deg | Ball rows: 5 | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 286 g
SBEO40UU Seal: Seals on both sides | Shaft diameter d: 40 mm | Outer diameter D: 62 mm | Length B: 80 mm | B1: 60.5 mm | B2: 2.15 mm | Opening E: 19.5 mm | Opening angle: 56 deg | Ball rows: 5 | C (dynamic): 9095 N | C0 (static): 5625 N | Mass: 286 g
SBEO50 Seal: No seal | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | Opening E: 22.5 mm | Opening angle: 54 deg | Ball rows: 5 | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 486 g
SBEO50U Seal: Seal on one side | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | Opening E: 22.5 mm | Opening angle: 54 deg | Ball rows: 5 | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 486 g
SBEO50UU Seal: Seals on both sides | Shaft diameter d: 50 mm | Outer diameter D: 75 mm | Length B: 100 mm | B1: 77.5 mm | B2: 3.65 mm | Opening E: 22.5 mm | Opening angle: 54 deg | Ball rows: 5 | C (dynamic): 13130 N | C0 (static): 8175 N | Mass: 486 g
