WON ST Track Roller Guide TC Series (Outside Type, Profile Rail)

WON ST Track Roller Guide TC Series (Outside Type, Profile Rail)

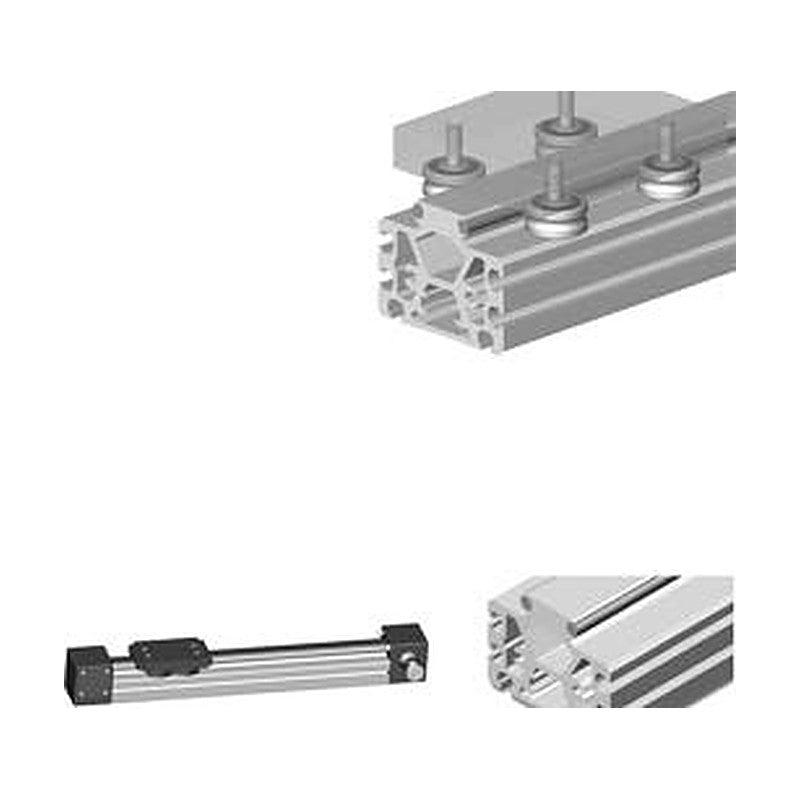

Outside-type track roller guide built on an aluminum structural profile rail, supplied with fixture or clearance adjustable block.

Key features

  • Four-direction load capacity (radial and thrust) via multi-row angular contact ball bearing rollers
  • Max. velocity 10 m/s, max. acceleration 50 m/s2
  • Low noise: no rolling-element recirculation
  • Fixture block or clearance adjustable block (eccentric roller) available
  • Operating temperature -20 to 80 C

Specifications

Block types Fixture block (B) / Clearance adjustable block (BC)
Max. rail length 6000 mm (TC52: 3000 mm)
TC20 Block width W: 60 mm | Rail width W1: 20 mm | Block length L1: 110 mm | Height H: 57 mm | Rail shaft dia. ds: 4 mm | Cy: 1860 N | Coy: 1600 N | Cz: 870 N | Coz: 760 N | Mx: 7.0 N·m | My: 21.8 N·m | Mz: 46.7 N·m
TC25 Block width W: 85 mm | Rail width W1: 25 mm | Block length L1: 125 mm | Height H: 81.1 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 27.1 N·m | My: 78.4 N·m | Mz: 164 N·m
TC52 Block width W: 130 mm | Rail width W1: 52 mm | Block length L1: 205 mm | Height H: 113.5 mm | Rail shaft dia. ds: 10 mm | Cy: 13930 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 139 N·m | My: 298 N·m | Mz: 627 N·m
