WON ST Track Roller Guide TF Series (Outside Type, Flat Rail)

WON ST Track Roller Guide TF Series (Outside Type, Flat Rail)

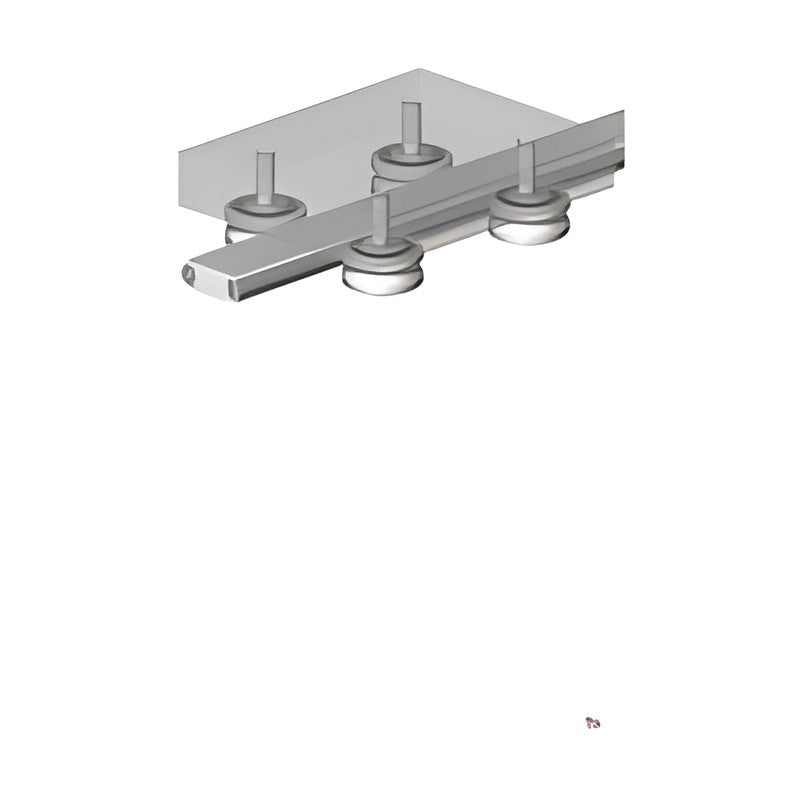

Outside-type track roller guide with a flat aluminum guide rail carrying two heat-treated shafts, supplied with fixture or clearance adjustable block.

Key features

  • Four-direction load capacity (radial and thrust) via multi-row angular contact ball bearing rollers
  • Max. velocity 10 m/s, max. acceleration 50 m/s2
  • Low noise: no rolling-element recirculation
  • Fixture block or clearance adjustable block (eccentric roller) available
  • Operating temperature -20 to 80 C

Specifications

Block types Fixture block (B) / Clearance adjustable block (BC)
Max. rail length 6000 mm
TF32 Block width W: 90 mm | Rail width W1: 32 mm | Block length L1: 145 mm | Height H: 33 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 37.1 N·m | My: 92.6 N·m | Mz: 193 N·m
TF42 Block width W: 120 mm | Rail width W1: 42 mm | Block length L1: 170 mm | Height H: 47.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13930 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 106 N·m | My: 231 N·m | Mz: 487 N·m
TF52 Block width W: 130 mm | Rail width W1: 52 mm | Block length L1: 205 mm | Height H: 47.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13930 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 139 N·m | My: 298 N·m | Mz: 627 N·m
Track Roller GuidesWON ST
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Track Roller Guide TF Series (Outside Type, Flat Rail)

Brand WON ST·Track Roller Guides

Available part numbers (3)

TF32, TF42, TF52

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TF32Block width W: 90 mm | Rail width W1: 32 mm | Block length L1: 145 mm | Height H: 33 mm | Rail shaft dia. ds: 6 mm | Cy: 5960 N | Coy: 4560 N | Cz: 2850 N | Coz: 2200 N | Mx: 37.1 N·m | My: 92.6 N·m | Mz: 193 N·m
TF42Block width W: 120 mm | Rail width W1: 42 mm | Block length L1: 170 mm | Height H: 47.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13930 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 106 N·m | My: 231 N·m | Mz: 487 N·m
TF52Block width W: 130 mm | Rail width W1: 52 mm | Block length L1: 205 mm | Height H: 47.2 mm | Rail shaft dia. ds: 10 mm | Cy: 13930 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 139 N·m | My: 298 N·m | Mz: 627 N·m
