WON ST Track Roller Guide TW Series (Outside Type, Wide Rail)

WON ST Track Roller Guide TW Series (Outside Type, Wide Rail)

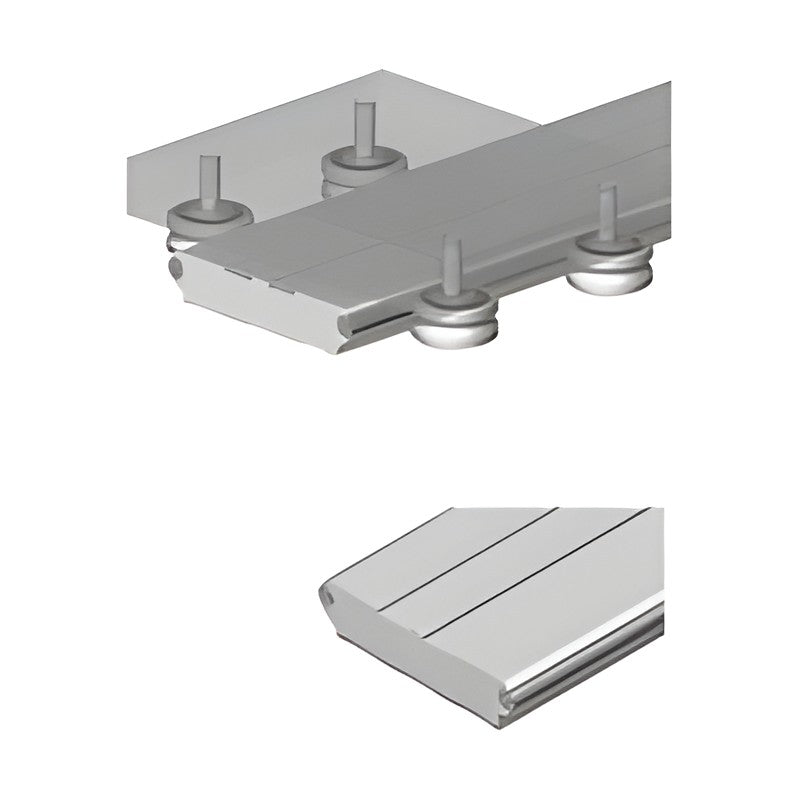

Outside-type track roller guide with a wide aluminum guide rail (120 mm), supplied with fixture or clearance adjustable block.

Key features

  • Four-direction load capacity (radial and thrust) via multi-row angular contact ball bearing rollers
  • Max. velocity 10 m/s, max. acceleration 50 m/s2
  • Low noise: no rolling-element recirculation
  • Fixture block or clearance adjustable block (eccentric roller) available
  • Operating temperature -20 to 80 C

Specifications

Block types Fixture block (B) / Clearance adjustable block (BC)
Max. rail length 6000 mm
TW52 Block width W: 200 mm | Rail width W1: 120 mm | Block length L1: 205 mm | Height H: 51 mm | Rail shaft dia. ds: 10 mm | Cy: 13938 N | Coy: 10200 N | Cz: 6620 N | Coz: 4920 N | Mx: 364.3 N·m | My: 298.1 N·m | Mz: 627.2 N·m
