WON ST Track Roller RF / RA Series (Outside Type), Concentric and Eccentric

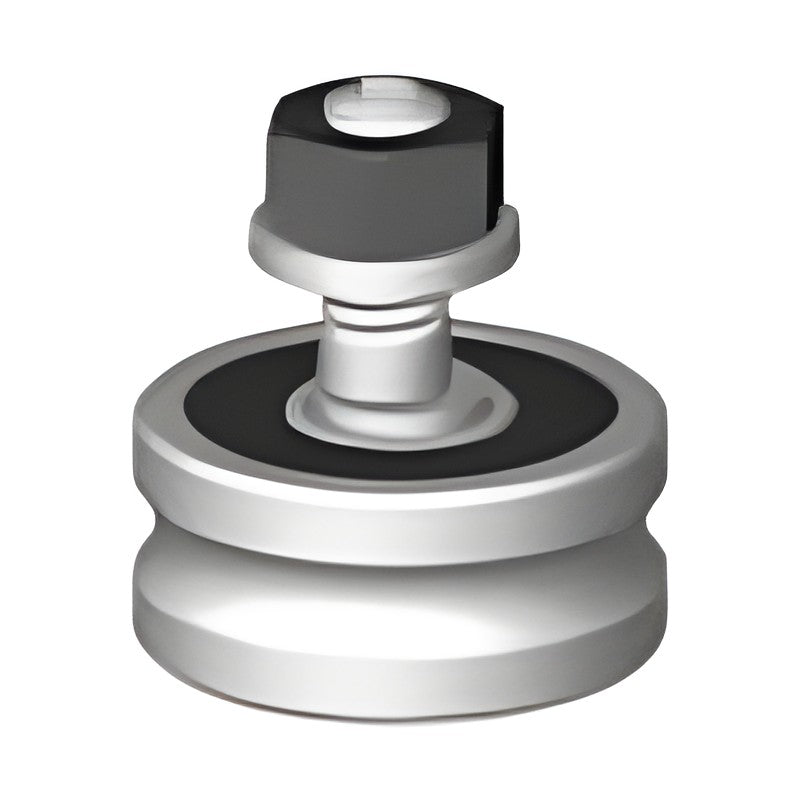

Track rollers for outside-type WON Track Roller Guides, based on multi-row angular contact ball bearings, in concentric (RF) and eccentric (RA) axis versions.

Key features

Multi-row angular contact ball bearing takes radial and thrust loads
RF concentric axis roller for fixed side
RA eccentric axis roller for zero clearance or preload adjustment

RF04		Roller type: Concentric axis \| Outer dia. Do: 22 mm \| Groove dia. D: 16 mm \| Width H: 7 mm \| Shaft dia. d: 4 mm \| Overall length L: 18.5 mm \| Applied rail size: 20 \| Cy: 1150 N \| Cz: 330 N \| Fymax: 250 N \| Fzmax: 100 N
RA04		Roller type: Eccentric axis \| Outer dia. Do: 22 mm \| Groove dia. D: 16 mm \| Width H: 7 mm \| Shaft dia. d: 4 mm \| Overall length L: 18.5 mm \| Eccentricity E: 0.5 mm \| Applied rail size: 20 \| Cy: 1150 N \| Cz: 330 N \| Fymax: 250 N \| Fzmax: 100 N
RF06		Roller type: Concentric axis \| Outer dia. Do: 34 mm \| Groove dia. D: 24 mm \| Width H: 11 mm \| Shaft dia. d: 6 mm \| Overall length L: 27 mm \| Applied rail size: 25, 32 \| Cy: 3670 N \| Cz: 1080 N \| Fymax: 920 N \| Fzmax: 270 N
RA06		Roller type: Eccentric axis \| Outer dia. Do: 34 mm \| Groove dia. D: 24 mm \| Width H: 11 mm \| Shaft dia. d: 6 mm \| Overall length L: 27 mm \| Eccentricity E: 1 mm \| Applied rail size: 25, 32 \| Cy: 3670 N \| Cz: 1080 N \| Fymax: 920 N \| Fzmax: 270 N
RF10		Roller type: Concentric axis \| Outer dia. Do: 51.3 mm \| Groove dia. D: 35 mm \| Width H: 15.9 mm \| Shaft dia. d: 10 mm \| Overall length L: 40.5 mm \| Applied rail size: 42, 52 \| Cy: 8580 N \| Cz: 2510 N \| Fymax: 2200 N \| Fzmax: 630 N
RA10		Roller type: Eccentric axis \| Outer dia. Do: 51.3 mm \| Groove dia. D: 35 mm \| Width H: 15.9 mm \| Shaft dia. d: 10 mm \| Overall length L: 40.5 mm \| Eccentricity E: 1 mm \| Applied rail size: 42, 52 \| Cy: 8580 N \| Cz: 2510 N \| Fymax: 2200 N \| Fzmax: 630 N
RF12		Roller type: Concentric axis \| Outer dia. Do: 60.93 mm \| Groove dia. D: 42 mm \| Width H: 19 mm \| Shaft dia. d: 10 mm \| Overall length L: 43.2 mm \| Applied rail size: 55 \| Cy: 8580 N \| Cz: 2510 N \| Fymax: 2200 N \| Fzmax: 630 N
