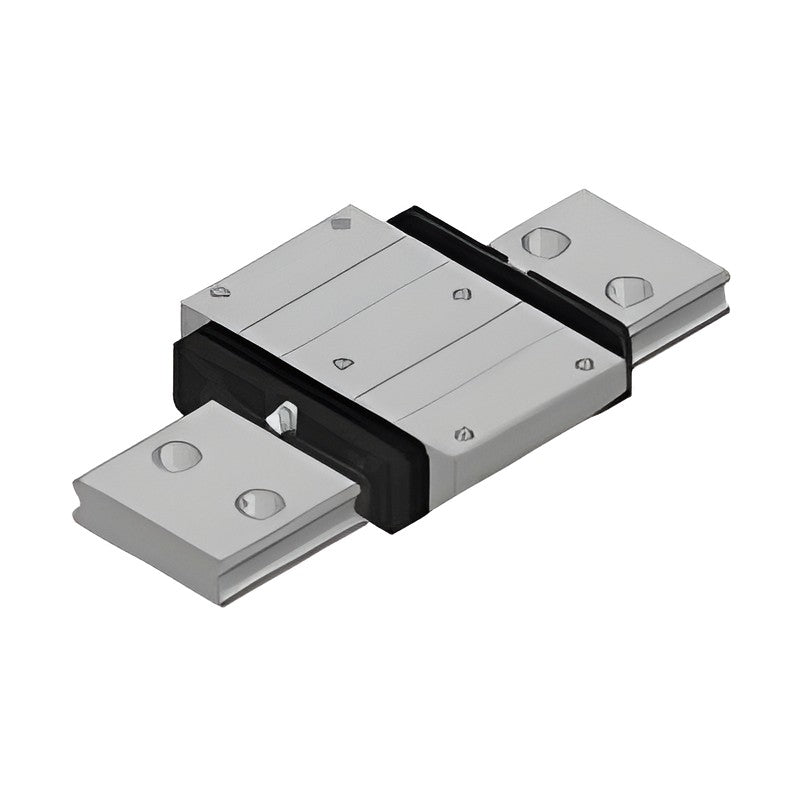

WON ST Wide Linear Motion Guide HB-F Series, Flange Type

WON ST Wide Linear Motion Guide HB-F Series, Flange Type

Wide linear motion guide with a wide, low rail and 4-direction equal load rating, able to carry moment loads on a single rail in narrow spaces.

Key features

  • Wide rail; moment load can be carried by a single rail
  • More balls than H series for higher rigidity
  • 4-row circular arc groove, 4-direction equal load (45° contact)
  • Face-to-face D/F structure for self-alignment
  • High rigidity and stable long-term travel accuracy

Specifications

Rolling element Ball (full-ball)
Block type Flange (tapped flange, top or bottom mounting)
HB17F Height H: 17 mm | Width W: 60 mm | Length L: 51 mm | Mounting pitch B: 53 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4 | Rail width W1: 33 mm | Rail height H1: 8.6 mm | C (dynamic): 7.3 kN | C0 (static): 12.2 kN | Block mass: 0.15 kg | Rail mass: 1.9 kg/m
HB21F Height H: 21 mm | Width W: 68 mm | Length L: 59 mm | Mounting pitch B: 60 mm | Mounting pitch C: 29 mm | Mounting bolt M: M5 | Rail width W1: 37 mm | Rail height H1: 11 mm | C (dynamic): 8.4 kN | C0 (static): 14.8 kN | Block mass: 0.24 kg | Rail mass: 2.9 kg/m
HB27F Height H: 27 mm | Width W: 80 mm | Length L: 72.5 mm | Mounting pitch B: 70 mm | Mounting pitch C: 40 mm | Mounting bolt M: M6 | Rail width W1: 42 mm | Rail height H1: 15 mm | C (dynamic): 15.3 kN | C0 (static): 24.8 kN | Block mass: 0.47 kg | Rail mass: 4.5 kg/m
HB35F Height H: 35 mm | Width W: 120 mm | Length L: 105.3 mm | Mounting pitch B: 107 mm | Mounting pitch C: 60 mm | Mounting bolt M: M8 | Rail width W1: 69 mm | Rail height H1: 19 mm | C (dynamic): 33.9 kN | C0 (static): 53.2 kN | Block mass: 1.40 kg | Rail mass: 9.6 kg/m
LM GuidesWON ST
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WON ST Wide Linear Motion Guide HB-F Series, Flange Type

Brand WON ST·LM Guides

Available part numbers (4)

HB17F, HB21F, HB27F, HB35F

How to order

Send the WON ST part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HB17FHeight H: 17 mm | Width W: 60 mm | Length L: 51 mm | Mounting pitch B: 53 mm | Mounting pitch C: 26 mm | Mounting bolt M: M4 | Rail width W1: 33 mm | Rail height H1: 8.6 mm | C (dynamic): 7.3 kN | C0 (static): 12.2 kN | Block mass: 0.15 kg | Rail mass: 1.9 kg/m
HB21FHeight H: 21 mm | Width W: 68 mm | Length L: 59 mm | Mounting pitch B: 60 mm | Mounting pitch C: 29 mm | Mounting bolt M: M5 | Rail width W1: 37 mm | Rail height H1: 11 mm | C (dynamic): 8.4 kN | C0 (static): 14.8 kN | Block mass: 0.24 kg | Rail mass: 2.9 kg/m
HB27FHeight H: 27 mm | Width W: 80 mm | Length L: 72.5 mm | Mounting pitch B: 70 mm | Mounting pitch C: 40 mm | Mounting bolt M: M6 | Rail width W1: 42 mm | Rail height H1: 15 mm | C (dynamic): 15.3 kN | C0 (static): 24.8 kN | Block mass: 0.47 kg | Rail mass: 4.5 kg/m
HB35FHeight H: 35 mm | Width W: 120 mm | Length L: 105.3 mm | Mounting pitch B: 107 mm | Mounting pitch C: 60 mm | Mounting bolt M: M8 | Rail width W1: 69 mm | Rail height H1: 19 mm | C (dynamic): 33.9 kN | C0 (static): 53.2 kN | Block mass: 1.40 kg | Rail mass: 9.6 kg/m
