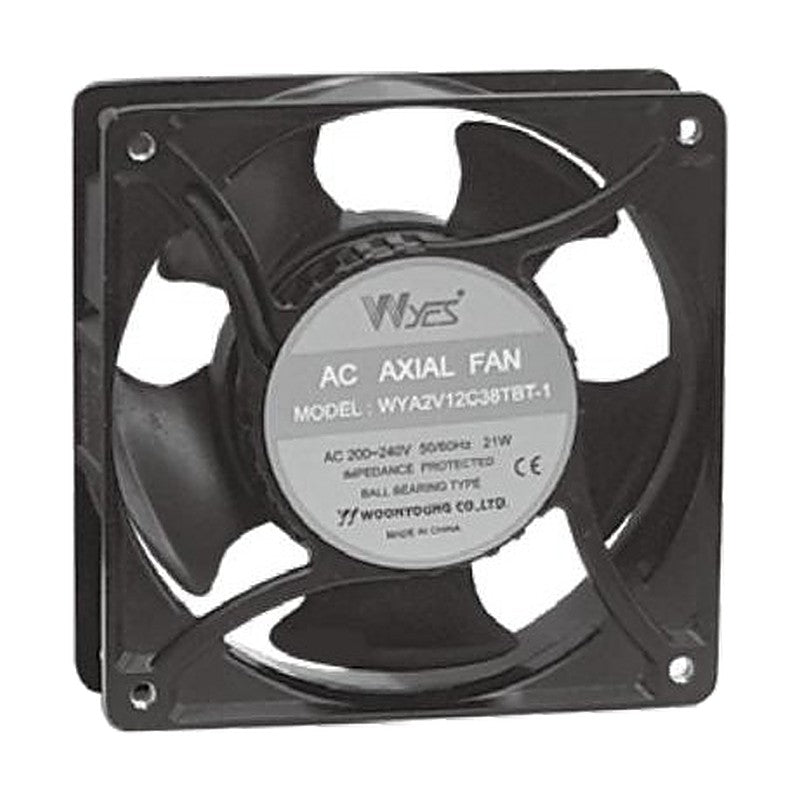

• Woonyoung A12C38T Series AC Cooling Fan, 120 x 120 x 38 mm
1 1

Woonyoung A12C38T Series AC Cooling Fan, 120 x 120 x 38 mm

Woonyoung A12C38T Series AC Cooling Fan, 120 x 120 x 38 mm

Square 120 x 120 x 38 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 120 x 120 x 38 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Shaded pole induction motor
  • Lead wire: AWG#22 UL1569 (optional)
  • Operating temperature -10 to +65 C

Specifications

Size 120 x 120 x 38 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Shaded pole induction motor
Terminals 0.5 mm
Lead wire AWG#22 UL1569 (optional)
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Power 21/17 W
Noise 43/48 dBA
Air flow 158/166 m3/h (93/98 CFM)
WYA1V12C38TBT-1 Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.23/0.2 A | Power: 21/17 W | Speed: 2500/2600 rpm | Noise: 43/48 dBA | Air flow: 158/166 m3/h (93/98 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V12C38TBT-1 Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.15/0.12 A | Power: 21/17 W | Speed: 2500/2850 rpm | Noise: 43/48 dBA | Air flow: 158/166 m3/h (93/98 CFM) | Bearing: Ball bearing | Weight: 480 g
Cooling FansWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A12C38T Series AC Cooling Fan, 120 x 120 x 38 mm

Brand Woonyoung·Cooling Fans

Available part numbers (2)

WYA1V12C38TBT-1, WYA2V12C38TBT-1

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V12C38TBT-1Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.23/0.2 A | Power: 21/17 W | Speed: 2500/2600 rpm | Noise: 43/48 dBA | Air flow: 158/166 m3/h (93/98 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V12C38TBT-1Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.15/0.12 A | Power: 21/17 W | Speed: 2500/2850 rpm | Noise: 43/48 dBA | Air flow: 158/166 m3/h (93/98 CFM) | Bearing: Ball bearing | Weight: 480 g
