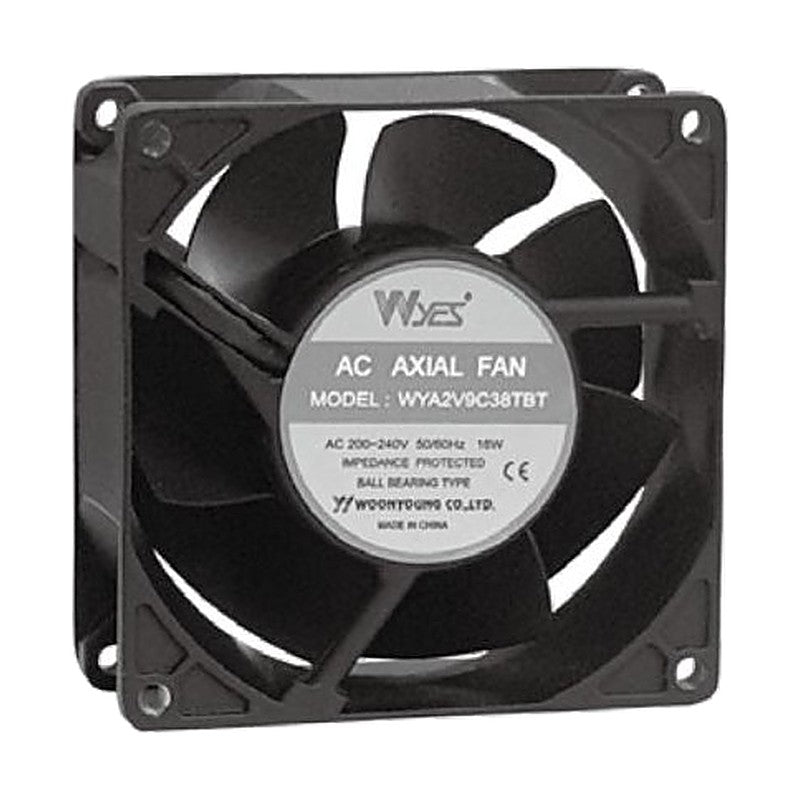

• Woonyoung A9C38T Series AC Cooling Fan, 92 x 92 x 38 mm
1 1

Woonyoung A9C38T Series AC Cooling Fan, 92 x 92 x 38 mm

Woonyoung A9C38T Series AC Cooling Fan, 92 x 92 x 38 mm

Square 92 x 92 x 38 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 92 x 92 x 38 mm
  • Impeller: Iron leaf
  • Aluminum alloy frame
  • Motor: Shaded pole external rotor induction motor
  • Lead wire: Mostable wire (optional)
  • Operating temperature -10 to +105 C

Specifications

Size 92 x 92 x 38 mm
Frame Aluminum alloy
Impeller Iron leaf
Motor Shaded pole external rotor induction motor
Terminals 0.5 mm
Lead wire Mostable wire (optional)
Bearing Ball bearing
Operating temperature -10 to +105 C
Frequency 50/60 Hz
Power 16/14 W
Noise 37/42 dBA
Air flow 78/95 m3/h (46/56 CFM)
WYA1V9C38TBT Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.17/0.15 A | Power: 16/14 W | Speed: 2450/2800 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V9C38TBT Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.09/0.08 A | Power: 16/14 W | Speed: 2450/2850 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V9C38TBL Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.09/0.08 A | Power: 16/14 W | Speed: 2450/2850 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
Cooling FansWoonyoung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A9C38T Series AC Cooling Fan, 92 x 92 x 38 mm

Brand Woonyoung·Cooling Fans

Available part numbers (3)

WYA1V9C38TBT, WYA2V9C38TBT, WYA2V9C38TBL

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYA1V9C38TBTVoltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.17/0.15 A | Power: 16/14 W | Speed: 2450/2800 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V9C38TBTVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.09/0.08 A | Power: 16/14 W | Speed: 2450/2850 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
WYA2V9C38TBLVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.09/0.08 A | Power: 16/14 W | Speed: 2450/2850 rpm | Noise: 37/42 dBA | Air flow: 78/95 m3/h (46/56 CFM) | Bearing: Ball bearing | Weight: 480 g
