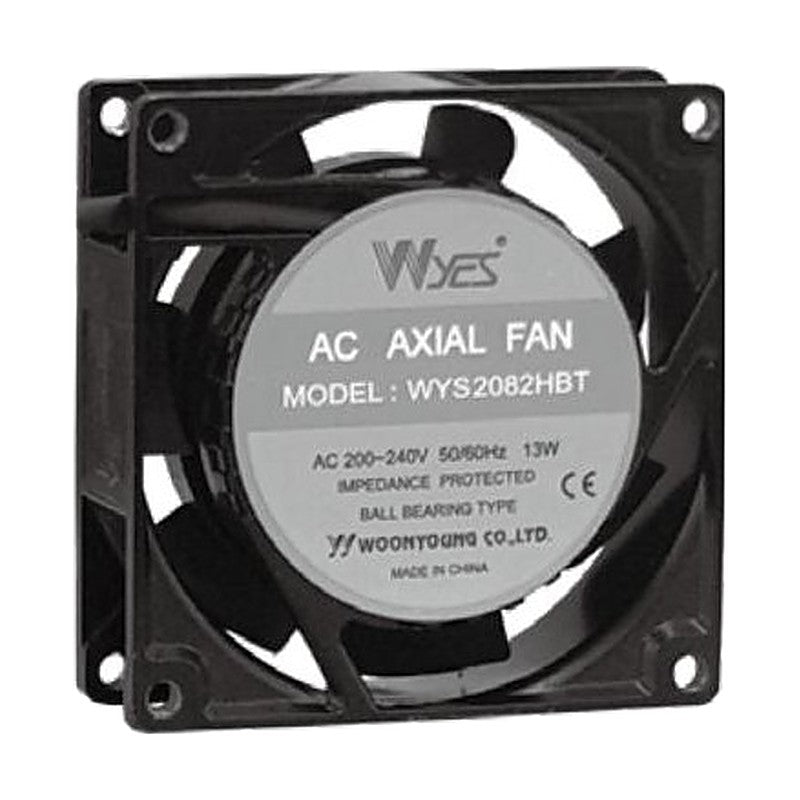

Woonyoung A8025 Series AC Cooling Fan, 80 x 80 x 25 mm

Woonyoung A8025 Series AC Cooling Fan, 80 x 80 x 25 mm

Square 80 x 80 x 25 mm AC axial cooling fan with ball bearings for 100-125 V or 200-240 V supplies.

Key features

  • Size 80 x 80 x 25 mm
  • Impeller: PBT thermoplastic, black, UL94-V0
  • Aluminum alloy frame
  • Motor: Shaded pole induction motor
  • Lead wire: AWG#22 UL1569 (optional)
  • Operating temperature -10 to +65 C

Specifications

Size 80 x 80 x 25 mm
Frame Aluminum alloy
Impeller PBT thermoplastic, black, UL94-V0
Motor Shaded pole induction motor
Terminals 0.5 mm
Lead wire AWG#22 UL1569 (optional)
Bearing Ball bearing
Operating temperature -10 to +65 C
Frequency 50/60 Hz
Power 13/12 W
Noise 26/23 dBA
Air flow 32/39 m3/h (19/23 CFM)
WYS1082HBT Voltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.2/0.16 A | Power: 13/12 W | Speed: 2300/2700 rpm | Noise: 26/23 dBA | Air flow: 32/39 m3/h (19/23 CFM) | Bearing: Ball bearing | Weight: 260 g
WYS2082HBT Voltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.1/0.08 A | Power: 13/12 W | Speed: 2400/2800 rpm | Noise: 26/23 dBA | Air flow: 32/39 m3/h (19/23 CFM) | Bearing: Ball bearing | Weight: 260 g
Cooling FansWoonyoung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung A8025 Series AC Cooling Fan, 80 x 80 x 25 mm

Brand Woonyoung·Cooling Fans

Available part numbers (2)

WYS1082HBT, WYS2082HBT

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYS1082HBTVoltage: 100/125 VAC | Frequency: 50/60 Hz | Current: 0.2/0.16 A | Power: 13/12 W | Speed: 2300/2700 rpm | Noise: 26/23 dBA | Air flow: 32/39 m3/h (19/23 CFM) | Bearing: Ball bearing | Weight: 260 g
WYS2082HBTVoltage: 200/240 VAC | Frequency: 50/60 Hz | Current: 0.1/0.08 A | Power: 13/12 W | Speed: 2400/2800 rpm | Noise: 26/23 dBA | Air flow: 32/39 m3/h (19/23 CFM) | Bearing: Ball bearing | Weight: 260 g
