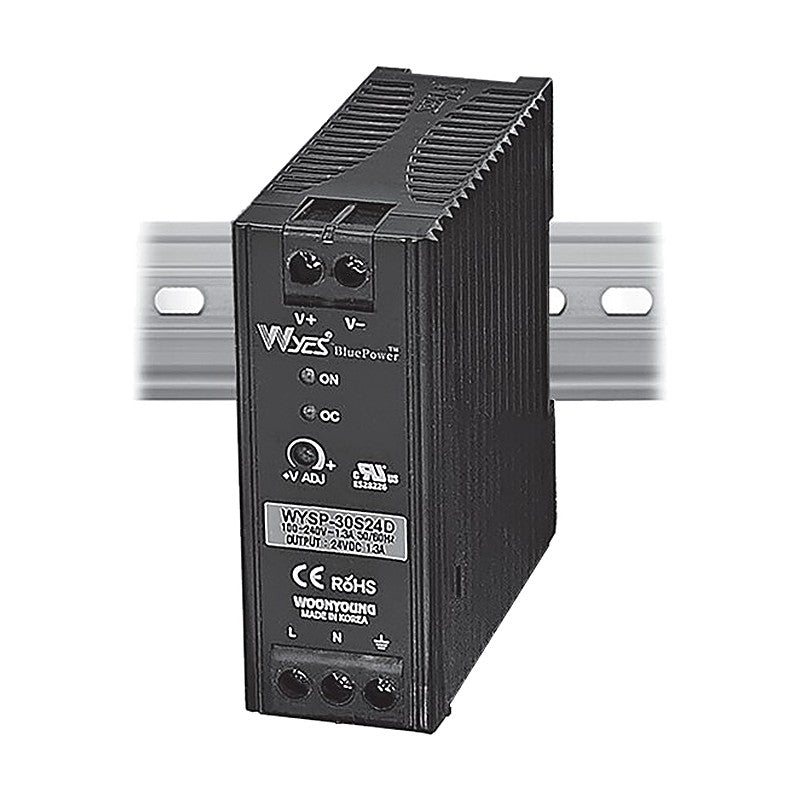

Woonyoung D Type Series DIN-Rail Switching Power Supply, 10-100 W

Woonyoung D Type Series DIN-Rail Switching Power Supply, 10-100 W

Slim DIN-rail mount AC-DC switching power supply that converts AC 90-264 V input into a regulated single DC output from 10 W to 100 W.

Key features

  • Wide AC input range 90-264 V
  • DIN-rail mounting plus wall-mount lever for direct panel installation
  • Over current, short circuit and over temperature protection with auto restart
  • Built-in inrush current limiter
  • LED indicators for power on and overload (30-100 W)
  • SEMI F47 compliant at 200 V AC (30-100 W)

Specifications

Output type Single output
Input voltage AC 90-264 V (nominal 100-240 V), 50/60 Hz
Mounting DIN rail / wall mount
Cooling Natural air convection
Operating temperature -10 to +50 °C (0 to +50 °C for 10/20 W)
Withstand voltage (input-output) AC 3,000 V 1 min (30-100 W); AC 1,500 V (10/20 W)
Hold-up time 15 ms typ at full load (AC 110 V)
Safety marks CE, RoHS; CB/cULus on selected models
WYSP-10S05D Output power: 10 W | Output voltage: 5 V DC | Output current: 2.0 A | Input voltage: AC 90-264 V | Efficiency: 70% (AC 220 V, typ) | Weight: 0.2 kg
WYSP-10S12D Output power: 10 W | Output voltage: 12 V DC | Output current: 0.84 A | Input voltage: AC 90-264 V | Efficiency: 75% (AC 220 V, typ) | Weight: 0.2 kg
WYSP-10S24D Output power: 10 W | Output voltage: 24 V DC | Output current: 0.42 A | Input voltage: AC 90-264 V | Efficiency: 78% (AC 220 V, typ) | Weight: 0.2 kg
WYSP-20S12D Output power: 20 W | Output voltage: 12 V DC | Output current: 1.67 A | Input voltage: AC 90-264 V | Efficiency: 75% (AC 220 V, typ) | Weight: 0.2 kg
WYSP-20S24D Output power: 20 W | Output voltage: 24 V DC | Output current: 0.84 A | Input voltage: AC 90-264 V | Efficiency: 78% (AC 220 V, typ) | Weight: 0.2 kg
WYSP-30S05D Output power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: AC 90-264 V | Efficiency: 72% (AC 220 V, typ) | Weight: 0.3 kg
WYSP-30S12D Output power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 88% (AC 220 V, typ) | Weight: 0.3 kg
WYSP-30S24D Output power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: AC 90-264 V | Efficiency: 88% (AC 220 V, typ) | Weight: 0.3 kg
WYSP-30S48D Output power: 30 W | Output voltage: 48 V DC | Output current: 0.63 A | Input voltage: AC 90-264 V | Efficiency: 88% (AC 220 V, typ) | Weight: 0.3 kg
WYSP-50S12D Output power: 50 W | Output voltage: 12 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 88% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-50S24D Output power: 50 W | Output voltage: 24 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 89% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-50S48D Output power: 50 W | Output voltage: 48 V DC | Output current: 1.05 A | Input voltage: AC 90-264 V | Efficiency: 89% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-75S12D Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-75S24D Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-75S48D Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 0.4 kg
WYSP-100S12D Output power: 100 W | Output voltage: 12 V DC | Output current: 8.0 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 0.6 kg
WYSP-100S24D Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 0.6 kg
WYSP-100S48D Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 0.6 kg
