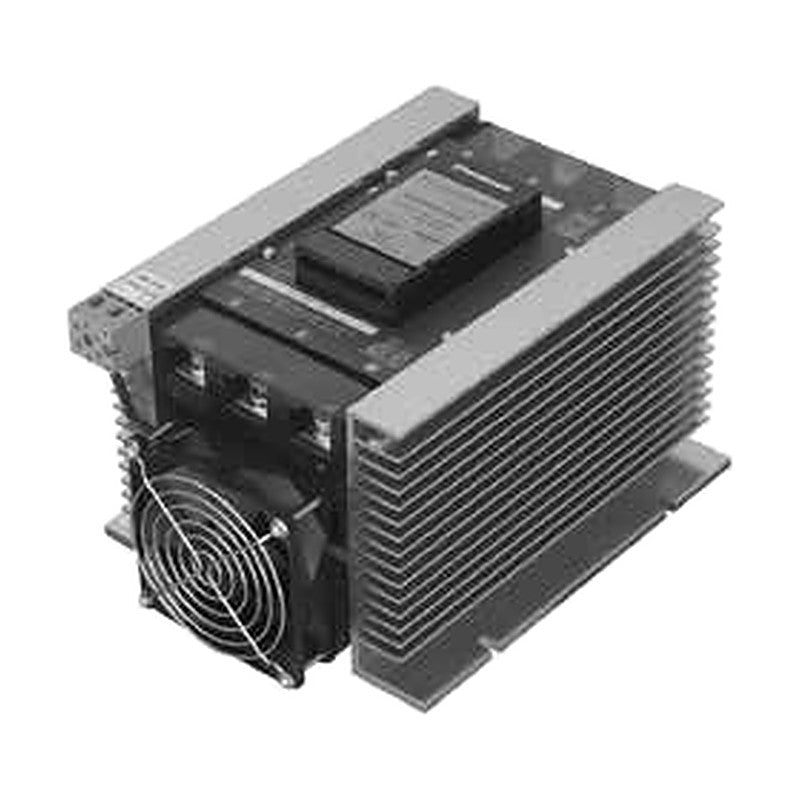

WOONYOUNG DC SSR with Heat Sink and Fan WYFMH (50-400A)

WOONYOUNG DC SSR with Heat Sink and Fan WYFMH (50-400A)

DC SSR with integrated heat sink (SSR / fan heat sink type) that requires no additional heat sink.

Key features

  • Integrated heat sink with fan
  • High current DC switching
  • Input 4-32 VDC

Specifications

Input voltage range 4-32 VDC
Output DC
Dielectric strength 1500 VAC / 1 min
Weight 4.7 / 4.8 kg
WYFMH1C150D4 Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 50 A
WYFMH1C175D4 Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 75 A
WYFMH1C1100D4 Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 100 A
WYFMH1C550D4 Rated voltage: 500 VDC | Rated load current: 50 A | Source: selection table p.50
WYFMH1C575D4 Rated voltage: 500 VDC | Rated load current: 75 A | Source: selection table p.50
WYFMH1C5100D4 Rated voltage: 500 VDC | Rated load current: 100 A | Source: selection table p.50
WYFMH1C5200D4 Rated voltage: 500 VDC | Rated load current: 200 A | Source: selection table p.50
WYFMH1C12300D4 Rated voltage: 1200 VDC | Rated load current: 300 A | Source: selection table p.50
WYFMH1C12400D4 Rated voltage: 1200 VDC | Rated load current: 400 A | Source: selection table p.50
Solid State RelaysWOONYOUNG
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WOONYOUNG DC SSR with Heat Sink and Fan WYFMH (50-400A)

Brand WOONYOUNG·Solid State Relays

Available part numbers (9)

WYFMH1C150D4, WYFMH1C175D4, WYFMH1C1100D4, WYFMH1C550D4, WYFMH1C575D4, WYFMH1C5100D4, WYFMH1C5200D4, WYFMH1C12300D4, WYFMH1C12400D4

How to order

Send the WOONYOUNG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFMH1C150D4Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 50 A
WYFMH1C175D4Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 75 A
WYFMH1C1100D4Rated voltage: 100 VDC | Voltage range: 5-100 VDC | Rated load current: 100 A
WYFMH1C550D4Rated voltage: 500 VDC | Rated load current: 50 A | Source: selection table p.50
WYFMH1C575D4Rated voltage: 500 VDC | Rated load current: 75 A | Source: selection table p.50
WYFMH1C5100D4Rated voltage: 500 VDC | Rated load current: 100 A | Source: selection table p.50
WYFMH1C5200D4Rated voltage: 500 VDC | Rated load current: 200 A | Source: selection table p.50
WYFMH1C12300D4Rated voltage: 1200 VDC | Rated load current: 300 A | Source: selection table p.50
WYFMH1C12400D4Rated voltage: 1200 VDC | Rated load current: 400 A | Source: selection table p.50
