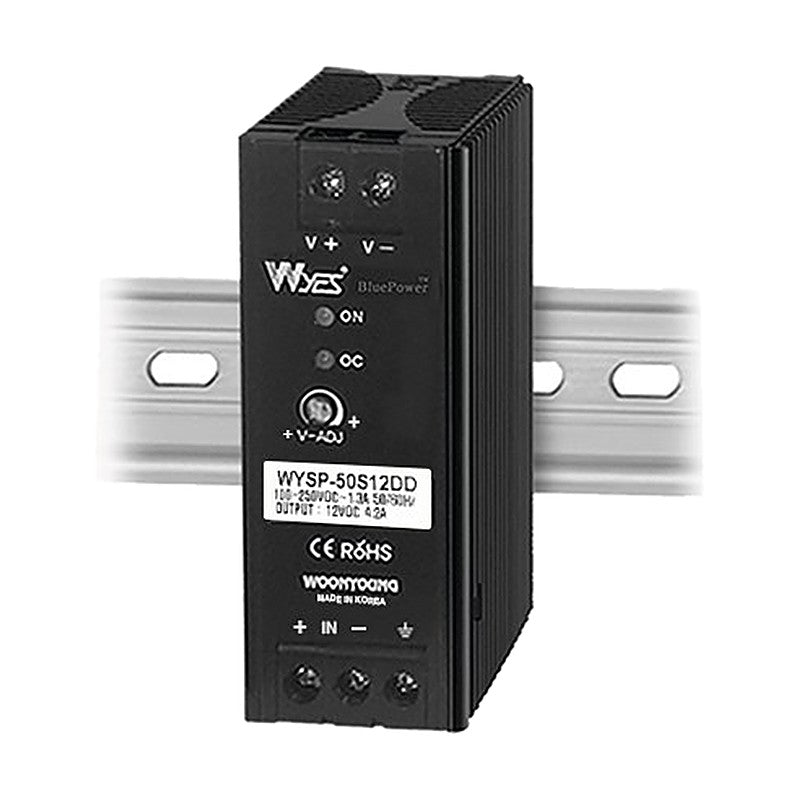

Woonyoung DD Type Series DIN-Rail DC-Input Switching Power Supply, 10-500 W

Woonyoung DD Type Series DIN-Rail DC-Input Switching Power Supply, 10-500 W

DIN-rail mount switching power supply for DC 100-250 V input that provides an isolated, regulated single DC output from 10 W to 500 W.

Key features

  • Wide DC input range 100-250 V (nominal 110-230 V)
  • High efficiency up to 92%
  • Over current, short circuit and over voltage protection with auto restart
  • Built-in inrush current limiter
  • LED indicators for power on and overload
  • DIN-rail and wall mounting; optional fan for 300 W 12 V and 500 W 24 V

Specifications

Output type Single output
Input voltage DC 100-250 V (nominal 110-230 V)
Mounting DIN rail / wall mount
Cooling Natural air convection
Operating temperature -10 to +50 °C
Isolation resistance (input-output) DC 500 V, 50 MΩ
Safety marks CE, RoHS
WYSP-10S05DD Output power: 10 W | Output voltage: 5 V DC | Output current: 2.0 A | Input voltage: DC 100-250 V | Efficiency: 70% (DC 150 V) | Weight: 0.2 kg
WYSP-10S12DD Output power: 10 W | Output voltage: 12 V DC | Output current: 0.84 A | Input voltage: DC 100-250 V | Efficiency: 73% (DC 150 V) | Weight: 0.2 kg
WYSP-10S24DD Output power: 10 W | Output voltage: 24 V DC | Output current: 0.42 A | Input voltage: DC 100-250 V | Efficiency: 71% (DC 150 V) | Weight: 0.2 kg
WYSP-20S12DD Output power: 20 W | Output voltage: 12 V DC | Output current: 1.67 A | Input voltage: DC 100-250 V | Efficiency: 78% (DC 150 V) | Weight: 0.2 kg
WYSP-20S24DD Output power: 20 W | Output voltage: 24 V DC | Output current: 0.84 A | Input voltage: DC 100-250 V | Efficiency: 78% (DC 150 V) | Weight: 0.2 kg
WYSP-30S05DD Output power: 30 W | Output voltage: 5 V DC | Output current: 6.0 A | Input voltage: DC 100-250 V | Efficiency: 70% (DC 150 V) | Weight: 0.3 kg
WYSP-30S12DD Output power: 30 W | Output voltage: 12 V DC | Output current: 2.5 A | Input voltage: DC 100-250 V | Efficiency: 87% (DC 150 V) | Weight: 0.3 kg
WYSP-30S24DD Output power: 30 W | Output voltage: 24 V DC | Output current: 1.3 A | Input voltage: DC 100-250 V | Efficiency: 87% (DC 150 V) | Weight: 0.3 kg
WYSP-30S48DD Output power: 30 W | Output voltage: 48 V DC | Output current: 0.63 A | Input voltage: DC 100-250 V | Efficiency: 87% (DC 150 V) | Weight: 0.3 kg
WYSP-50S12DD Output power: 50 W | Output voltage: 12 V DC | Output current: 4.2 A | Input voltage: DC 100-250 V | Efficiency: 87% (DC 150 V) | Weight: 0.4 kg
WYSP-50S24DD Output power: 50 W | Output voltage: 24 V DC | Output current: 2.1 A | Input voltage: DC 100-250 V | Efficiency: 88% (DC 150 V) | Weight: 0.4 kg
WYSP-50S48DD Output power: 50 W | Output voltage: 48 V DC | Output current: 1.1 A | Input voltage: DC 100-250 V | Efficiency: 88% (DC 150 V) | Weight: 0.4 kg
WYSP-75S12DD Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 0.4 kg
WYSP-75S24DD Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 0.4 kg
WYSP-75S48DD Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 0.4 kg
WYSP-100S12DD Output power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 0.6 kg
WYSP-100S24DD Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 0.6 kg
WYSP-100S48DD Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 0.6 kg
WYSP-120S12DD Output power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: DC 100-250 V | Efficiency: 89% (DC 150 V) | Weight: 1.0 kg
WYSP-120S24DD Output power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 1.0 kg
WYSP-120S48DD Output power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 1.0 kg
WYSP-150S12DD Output power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: DC 100-250 V | Efficiency: 89% (DC 150 V) | Weight: 1.0 kg
WYSP-150S24DD Output power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 1.0 kg
WYSP-150S48DD Output power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: DC 100-250 V | Efficiency: 90% (DC 150 V) | Weight: 1.0 kg
WYSP-200S12DD Output power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 1.0 kg
WYSP-200S24DD Output power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-200S48DD Output power: 200 W | Output voltage: 48 V DC | Output current: 4.2 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-250S12DD Output power: 250 W | Output voltage: 12 V DC | Output current: 20.9 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 1.0 kg
WYSP-250S24DD Output power: 250 W | Output voltage: 24 V DC | Output current: 10.5 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-250S48DD Output power: 250 W | Output voltage: 48 V DC | Output current: 5.2 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-300S12DD Output power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: DC 100-250 V | Efficiency: 91% (DC 150 V) | Weight: 1.0 kg
WYSP-300S24DD Output power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-300S48DD Output power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.0 kg
WYSP-400S24DD Output power: 400 W | Output voltage: 24 V DC | Output current: 16.7 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.3 kg
WYSP-400S48DD Output power: 400 W | Output voltage: 48 V DC | Output current: 8.4 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.3 kg
WYSP-500S24DD Output power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.3 kg
WYSP-500S48DD Output power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: DC 100-250 V | Efficiency: 92% (DC 150 V) | Weight: 1.3 kg
DIN-Rail Power SuppliesWoonyoung
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung DD Type Series DIN-Rail DC-Input Switching Power Supply, 10-500 W

Brand Woonyoung·DIN-Rail Power Supplies

Available part numbers (37)

WYSP-10S05DD, WYSP-10S12DD, WYSP-10S24DD, WYSP-20S12DD, WYSP-20S24DD, WYSP-30S05DD, WYSP-30S12DD, WYSP-30S24DD, WYSP-30S48DD, WYSP-50S12DD + 27 more — see full table ↓
