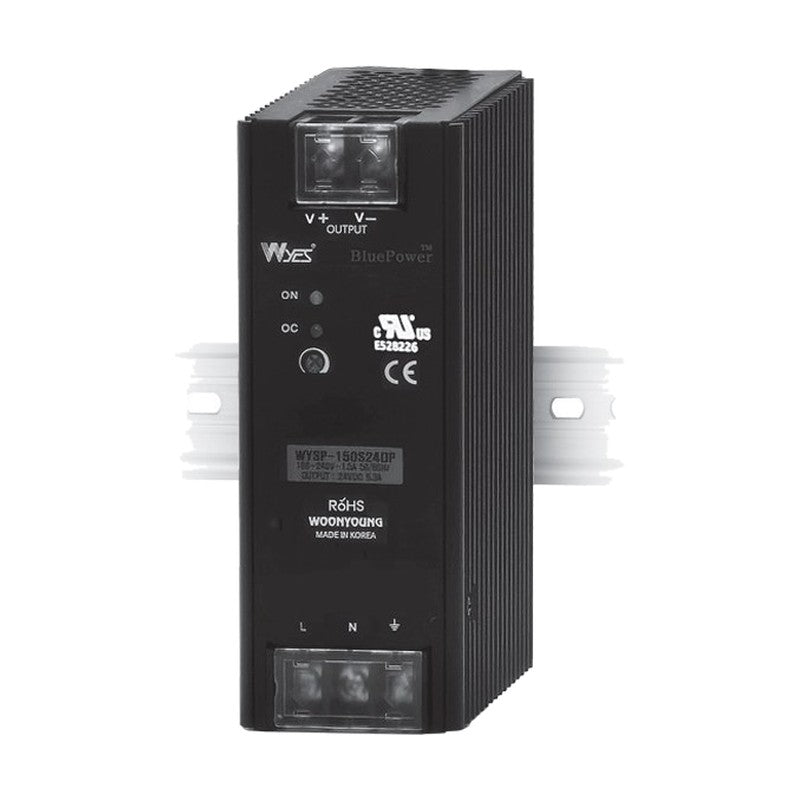

Woonyoung DP Type Series DIN-Rail PFC Switching Power Supply, 75-500 W

Woonyoung DP Type Series DIN-Rail PFC Switching Power Supply, 75-500 W

DIN-rail mount AC-DC switching power supply with built-in active power factor correction, delivering a single DC output from 75 W to 500 W.

Key features

  • Built-in active PFC, power factor 0.95 or higher at full load
  • Wide AC input range 90-264 V
  • High efficiency up to 94% (400/500 W fan-less resonant design)
  • Over current, short circuit and over voltage protection with auto restart
  • LED indicators for power on and overload
  • DIN-rail and wall mounting; optional cooling fan for 300 W 12 V and 500 W 24 V

Specifications

Output type Single output
Input voltage AC 90-264 V (nominal 100-240 V), 50/60 Hz
Power factor 0.95 min at full load
Mounting DIN rail / wall mount
Cooling Natural air convection
Operating temperature -10 to +50 °C
Withstand voltage (input-output) AC 3,000 V 1 min
Standby power 0.3 W (0.21 W for 200-300 W)
Safety marks CE, RoHS, CB; cULus on selected models
WYSP-75S12DP Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 90% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-75S24DP Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-75S48DP Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-100S12DP Output power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 90% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-100S24DP Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-100S48DP Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-120S12DP Output power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 90% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-120S24DP Output power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-120S48DP Output power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-150S12DP Output power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 90% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-150S24DP Output power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-150S48DP Output power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 91% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-200S12DP Output power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-200S24DP Output power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-200S48DP Output power: 200 W | Output voltage: 48 V DC | Output current: 4.17 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-250S12DP Output power: 250 W | Output voltage: 12 V DC | Output current: 20.9 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-250S24DP Output power: 250 W | Output voltage: 24 V DC | Output current: 10.5 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-250S48DP Output power: 250 W | Output voltage: 48 V DC | Output current: 5.21 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-300S12DP Output power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 90-264 V | Efficiency: 92% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-300S24DP Output power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-300S48DP Output power: 300 W | Output voltage: 48 V DC | Output current: 6.25 A | Input voltage: AC 90-264 V | Efficiency: 93% (AC 220 V, typ) | Weight: 1.0 kg
WYSP-400S24DP Output power: 400 W | Output voltage: 24 V DC | Output current: 16.7 A | Input voltage: AC 90-264 V | Efficiency: 94% (AC 220 V, typ) | Weight: 1.3 kg
WYSP-400S48DP Output power: 400 W | Output voltage: 48 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 94% (AC 220 V, typ) | Weight: 1.3 kg
WYSP-500S24DP Output power: 500 W | Output voltage: 24 V DC | Output current: 20.9 A | Input voltage: AC 90-264 V | Efficiency: 94% (AC 220 V, typ) | Weight: 1.3 kg
WYSP-500S48DP Output power: 500 W | Output voltage: 48 V DC | Output current: 10.5 A | Input voltage: AC 90-264 V | Efficiency: 94% (AC 220 V, typ) | Weight: 1.3 kg
