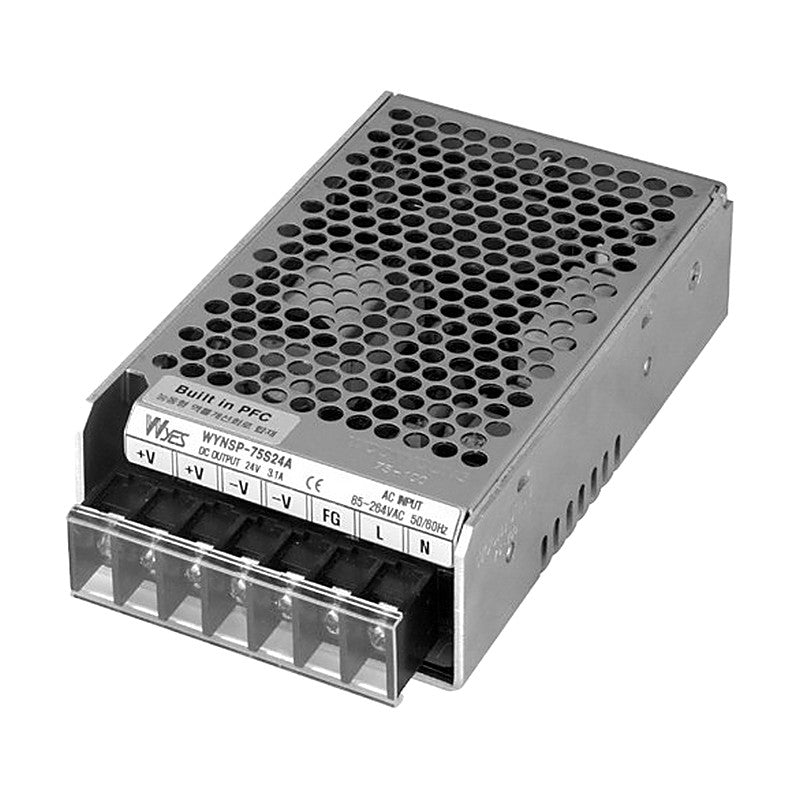

Woonyoung NSP Series Enclosed PFC Switching Power Supply, 1-Output, 75-300 W

Woonyoung NSP Series Enclosed PFC Switching Power Supply, 1-Output, 75-300 W

Enclosed metal-case AC-DC switching power supply with built-in power factor correction and a single regulated DC output from 75 W to 300 W.

Key features

  • Built-in PFC, power factor 0.97 typ at full load
  • Wide AC input range 90-264 V
  • Built-in inrush current limiter
  • Over current, over voltage and short circuit protection
  • Compact size with screw terminal block
  • Optional DIN-rail bracket (75-150 W)

Specifications

Output type Single output
Input voltage AC 90-264 V, 50/60 Hz
Power factor 0.97 typ
Mounting Chassis mount, optional DIN-rail bracket
Operating temperature 0 to +50 °C
Withstand voltage (input-output) AC 1,500 V 1 min
Cooling Natural cooling (75-150 W); fan cooling (200-300 W)
Safety marks CE, RoHS; CB/cULus on selected 120-300 W models
Woonyoung NSP Series Enclosed PFC Switching Power Supply, 1-Output, 75-300 W reference 2
WYNSP-75S05AP Output power: 75 W | Output voltage: 5 V DC | Output current: 15.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-75S12AP Output power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-75S24AP Output power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-75S48AP Output power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-100S05AP Output power: 100 W | Output voltage: 5 V DC | Output current: 20.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-100S12AP Output power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-100S24AP Output power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-100S48AP Output power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-120S05AP Output power: 120 W | Output voltage: 5 V DC | Output current: 24.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S12AP Output power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S24AP Output power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S48AP Output power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S05AP Output power: 150 W | Output voltage: 5 V DC | Output current: 30.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S12AP Output power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S24AP Output power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-150S48AP Output power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-200S05AP Output power: 200 W | Output voltage: 5 V DC | Output current: 40.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-200S12AP Output power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-200S24AP Output power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 1.1 kg
WYNSP-200S48AP Output power: 200 W | Output voltage: 48 V DC | Output current: 4.17 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 1.1 kg
WYNSP-250S05AP Output power: 250 W | Output voltage: 5 V DC | Output current: 50.8 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S12AP Output power: 250 W | Output voltage: 12 V DC | Output current: 20.8 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S24AP Output power: 250 W | Output voltage: 24 V DC | Output current: 10.4 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S48AP Output power: 250 W | Output voltage: 48 V DC | Output current: 5.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S05AP Output power: 300 W | Output voltage: 5 V DC | Output current: 60.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S12AP Output power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S24AP Output power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 80% typ | Weight: 1.1 kg
WYNSP-300S48AP Output power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 80% typ | Weight: 1.1 kg
Switching Power SuppliesWoonyoung
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung NSP Series Enclosed PFC Switching Power Supply, 1-Output, 75-300 W

Brand Woonyoung·Switching Power Supplies

Available part numbers (28)

WYNSP-75S05AP, WYNSP-75S12AP, WYNSP-75S24AP, WYNSP-75S48AP, WYNSP-100S05AP, WYNSP-100S12AP, WYNSP-100S24AP, WYNSP-100S48AP, WYNSP-120S05AP, WYNSP-120S12AP + 18 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Woonyoung NSP Series Enclosed PFC Switching Power Supply, 1-Output, 75-300 W reference 2
0 selected
RFQ List (0)
Product codeSpec
WYNSP-75S05APOutput power: 75 W | Output voltage: 5 V DC | Output current: 15.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-75S12APOutput power: 75 W | Output voltage: 12 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-75S24APOutput power: 75 W | Output voltage: 24 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-75S48APOutput power: 75 W | Output voltage: 48 V DC | Output current: 1.6 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-100S05APOutput power: 100 W | Output voltage: 5 V DC | Output current: 20.0 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-100S12APOutput power: 100 W | Output voltage: 12 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 70% typ | Weight: 0.5 kg
WYNSP-100S24APOutput power: 100 W | Output voltage: 24 V DC | Output current: 4.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-100S48APOutput power: 100 W | Output voltage: 48 V DC | Output current: 2.1 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.5 kg
WYNSP-120S05APOutput power: 120 W | Output voltage: 5 V DC | Output current: 24.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S12APOutput power: 120 W | Output voltage: 12 V DC | Output current: 10.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S24APOutput power: 120 W | Output voltage: 24 V DC | Output current: 5.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-120S48APOutput power: 120 W | Output voltage: 48 V DC | Output current: 2.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S05APOutput power: 150 W | Output voltage: 5 V DC | Output current: 30.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S12APOutput power: 150 W | Output voltage: 12 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 0.6 kg
WYNSP-150S24APOutput power: 150 W | Output voltage: 24 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-150S48APOutput power: 150 W | Output voltage: 48 V DC | Output current: 3.2 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 0.6 kg
WYNSP-200S05APOutput power: 200 W | Output voltage: 5 V DC | Output current: 40.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-200S12APOutput power: 200 W | Output voltage: 12 V DC | Output current: 16.7 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-200S24APOutput power: 200 W | Output voltage: 24 V DC | Output current: 8.4 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 1.1 kg
WYNSP-200S48APOutput power: 200 W | Output voltage: 48 V DC | Output current: 4.17 A | Input voltage: AC 90-264 V | Efficiency: 78% typ | Weight: 1.1 kg
WYNSP-250S05APOutput power: 250 W | Output voltage: 5 V DC | Output current: 50.8 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S12APOutput power: 250 W | Output voltage: 12 V DC | Output current: 20.8 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S24APOutput power: 250 W | Output voltage: 24 V DC | Output current: 10.4 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-250S48APOutput power: 250 W | Output voltage: 48 V DC | Output current: 5.2 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S05APOutput power: 300 W | Output voltage: 5 V DC | Output current: 60.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S12APOutput power: 300 W | Output voltage: 12 V DC | Output current: 25.0 A | Input voltage: AC 90-264 V | Efficiency: 75% typ | Weight: 1.1 kg
WYNSP-300S24APOutput power: 300 W | Output voltage: 24 V DC | Output current: 12.5 A | Input voltage: AC 90-264 V | Efficiency: 80% typ | Weight: 1.1 kg
WYNSP-300S48APOutput power: 300 W | Output voltage: 48 V DC | Output current: 6.3 A | Input voltage: AC 90-264 V | Efficiency: 80% typ | Weight: 1.1 kg
